Description

The ICS Triplex T8431 is a cutting-edge triple modular redundant (TMR) analog input module within Rockwell Automation’s Trusted® safety platform, engineered for ultra-reliable data acquisition in SIL 3-certified safety instrumented systems (SIS). Designed to interface with critical process sensors, this module combines 16 channels of high-resolution analog input with integrated HART protocol support, enabling bidirectional communication with smart field devices. The ICS Triplex T8431 processes each signal through three independent channels, performing continuous 2-out-of-3 voting to eliminate single-point failures while maintaining <0>ICS Triplex T8431 delivers deterministic performance for emergency shutdown (ESD), fire-and-gas systems, and other safety-critical functions, ensuring compliance with IEC 61508/61511 standards.

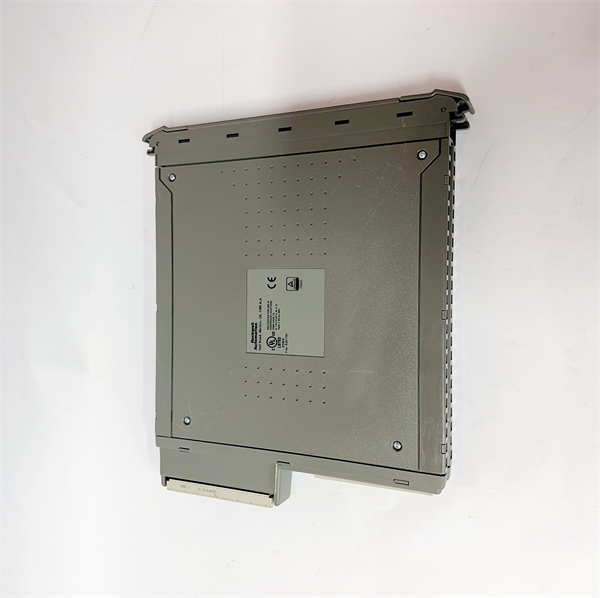

ICS TRIPLEX T8431

Technical Specifications

Main Features and Advantages

Intelligent HART integration: Unlike conventional analog modules, the ICS Triplex T8431 enables simultaneous 4–20mA signal acquisition and HART digital communication. This allows remote device diagnostics, calibration, and configuration (e.g., valve travel monitoring) without process disruption—reducing field work in hazardous zones by 50%.

Fault tolerance and precision: Three parallel 16-bit ADCs per channel deliver voting-based accuracy (±0.05%). Patented drift detection automatically compensates for aging components, critical for custody transfer metering or reactor temperature chains. The module’s “per-channel” fault isolation ensures a single failure never cascades.

Extreme environment resilience: Operates at -40°C in Arctic drilling sites or +70°C near furnace zones. Conformal-coated PCBs resist H₂S and salt spray corrosion. Integrated surge suppression protects against lightning-induced transients.

Maintenance optimization: Hot-swappable design supports module replacement during operation. Front-panel LEDs provide instant health status per channel. Built-in diagnostics report open wires, short circuits, and HART communication errors to the controller within milliseconds.

Application Field

The ICS Triplex T8431 excels in SIL 3 processes requiring smart device integration. In oil refineries, it monitors HART-enabled pressure transmitters in catalytic crackers, enabling predictive maintenance for catalyst bed fouling. Power plants deploy it for boiler drum level safety systems, using HART to validate differential pressure transmitter calibration.

Chemical facilities rely on the ICS Triplex T8431 for pH control loops with HART-capable analyzers, ensuring precise acid/base dosing. LNG terminals leverage its -40°C operability for cryogenic temperature monitoring. Pharmaceutical manufacturers use it in bioreactor pressure safety systems, with HART providing audit trails for FDA compliance. Water treatment plants apply it to chlorine residual analysis, where HART-driven auto-calibration maintains accuracy.

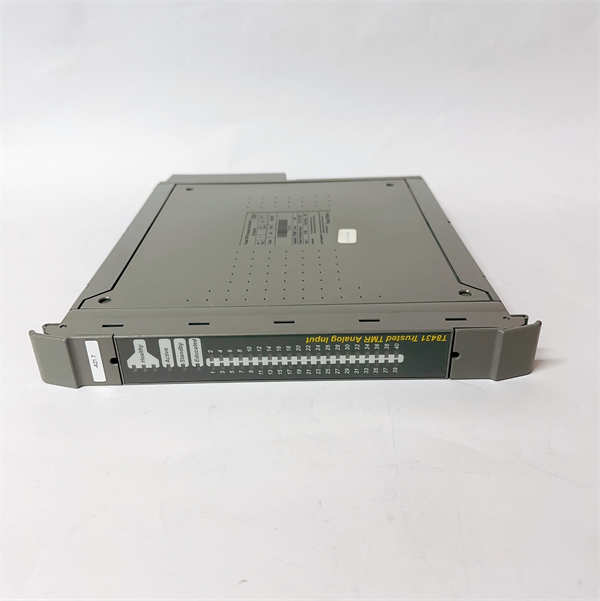

ICS TRIPLEX T8431

Related Products

T8431C: Enhanced version with extended temperature range (-50°C to +85°C).

T8403: Legacy 16-channel analog input without HART support.

T8110B: TMR controller for processing T8431 signals.

T8461B: Fused digital output module for actuator control.

TMR HART Multiplexer T8481: Expands HART connectivity for non-HART modules.

Trusted Communication Gateway T8800: For OPC UA/Modbus integration.

TMR Baseplate TMR-BP-02: Carrier for redundant module configurations.

Installation and Maintenance

Pre-installation preparation: Verify backplane compatibility (Trusted Series B/C). Ground the ICS Triplex T8431 chassis directly to plant earth (<1>

Maintenance recommendations: Perform annual HART device calibration via the module’s pass-through function. Monitor “Signal Quality” diagnostics monthly; values below 90% require cable inspection. Clean terminals during shutdowns using non-conductive contact cleaner. Replace modules showing persistent channel errors—retain as hot-swap spares.
