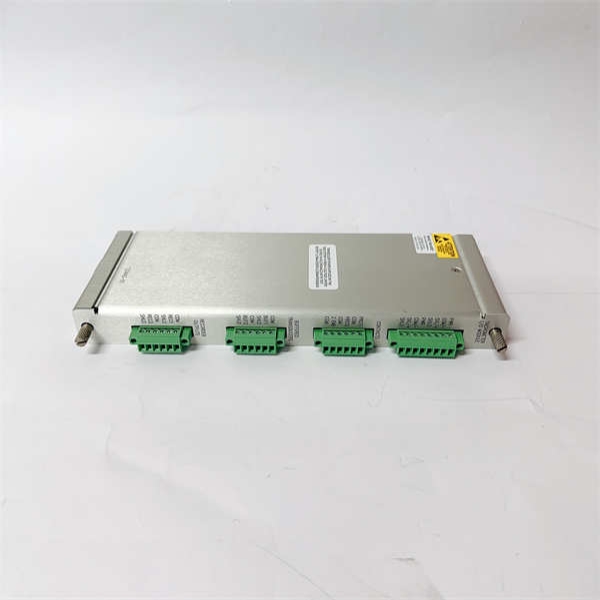

The BENTLY 133442-01 is a specialized Seismic Transducer Interface Module within Bently Nevada’s 3300 XL series, engineered for high-fidelity vibration and velocity monitoring in critical rotating machinery. Designed to integrate with accelerometers and velocity sensors, this module conditions low-level signals from transducers into standardized 4–20 mA outputs compatible with control systems like DCS and PLC platforms. The BENTLY 133442-01 operates in hazardous environments, providing intrinsic safety (IS) barriers for coal-fired plants, offshore platforms, and chemical processing facilities where explosive atmospheres exist. Its solid-state circuitry ensures drift-free measurement with ±0.5% accuracy across industrial temperature ranges, while transient voltage suppression protects against lightning strikes and electrical noise.

As part of Bently Nevada’s machinery health ecosystem, the BENTLY 133442-01 supports continuous condition monitoring through direct integration with 3300 XL monitors (e.g., 330104-00-05-10-02-00). The module’s galvanic isolation (1500 V RMS) prevents ground loops from corrupting measurement signals, and its MIL-C-5015 connectors ensure vibration-resistant connectivity. By converting mechanical vibration data into actionable insights, this interface enables predictive maintenance strategies for turbines, compressors, and pumps—reducing unplanned downtime and catastrophic failures.

Technical Specifications

Main Features and Advantages

Explosion-Proof Design:
The BENTLY 133442-01 meets ATEX/IECEx Ex ia standards for intrinsic safety, allowing deployment in Zone 0 hazardous areas without external barriers. Its energy-limited circuits prevent ignition of flammable gases—critical for refineries and gas compressor stations.

Signal Integrity Preservation:
Advanced anti-aliasing filters suppress high-frequency noise (>5 kHz), while 24-bit ADC conversion maintains signal resolution. The module’s <0>

Diagnostic Capabilities:
Integrated sensor health monitoring detects open/short circuits and transducer degradation. Front-panel LEDs indicate power status, signal validity, and fault conditions—enabling rapid troubleshooting without software tools.

Environmental Resilience:
Corrosion-resistant anodized housing withstands salt fog (IEC 60068-2-52) and high humidity (95% non-condensing). Shock-rated to 50g (11ms) and vibration-tested to 5g (10–500 Hz), the BENTLY 133442-01 survives extreme industrial environments.

Application Field

The BENTLY 133442-01 is indispensable in energy and heavy industries where vibration anomalies predict equipment failure. In power generation, it monitors steam turbine bearings and generator stators, triggering alarms when amplitudes exceed ISO 10816 thresholds. For offshore platforms, the module tracks compressor blade-pass frequencies to detect imbalance or misalignment before seal leaks occur.

Mining operations deploy the BENTLY 133442-01 on critical conveyors and crushers, utilizing its wide temperature range for desert/siberian extremes. Petrochemical plants rely on its SIL 2 certification for centrifugal pump monitoring in ethylene cracking units, where bearing failures risk cascading shutdowns. Water treatment facilities use it to detect cavitation in high-head pumps, reducing energy waste from recirculation.

Related Products

133442-02: Hazardous-area variant with HART protocol output

330104-00-05-10-02-00: 3300 XL monitor for processing 133442-01 signals

149992-01: Termination board for sensor-to-module wiring

330130-040-00-00: Proximitor® for shaft displacement monitoring

133442-03: High-temperature version (up to +110°C)

3300/46-01-01: Rack for mounting multiple 133442-01 modules

330701-00-05-10-02-00: Communication gateway for System 1™ integration

Installation and Maintenance

Pre-installation preparation: Verify intrinsic safety loop calculations match sensor parameters. Use shielded, twisted-pair cables (Belden 8761 or equivalent) with maximum 30m length. Ground the shield at the BENTLY 133442-01 end only to prevent ground loops.

Maintenance recommendations:
Calibrate every 24 months using precision shunt resistors (0.01% tolerance). Clean terminals annually with contact cleaner to maintain <10>
