Description

The HIMA X-COM01010 985260010 is a high-integrity Safety Communication Module engineered for HIMA’s HIMax Safety Instrumented Systems (SIS), providing certified SIL 3/SC 3 data exchange between safety controllers and higher-level control systems. This ruggedized communication gateway enables secure transmission of process safety variables, diagnostics, and event logs to DCS/SCADA systems without compromising the safety loop’s integrity. The HIMA X-COM01010 985260010 supports multiple industrial protocols including OPC UA, Modbus TCP, and HIMA’s proprietary SafeEthernet, facilitating seamless integration with third-party systems while maintaining strict compliance with IEC 61508 and IEC 61511 standards.

Designed for critical process industries, the module features dual-redundant Ethernet interfaces with hardware-based failover (<100ms>HIMA X-COM01010 985260010 operates in -40°C to +70°C environments with conformal-coated PCBs resisting humidity, dust, and corrosive atmospheres – making it ideal for offshore platforms, chemical plants, and power generation facilities where safety communication must remain uncompromised.

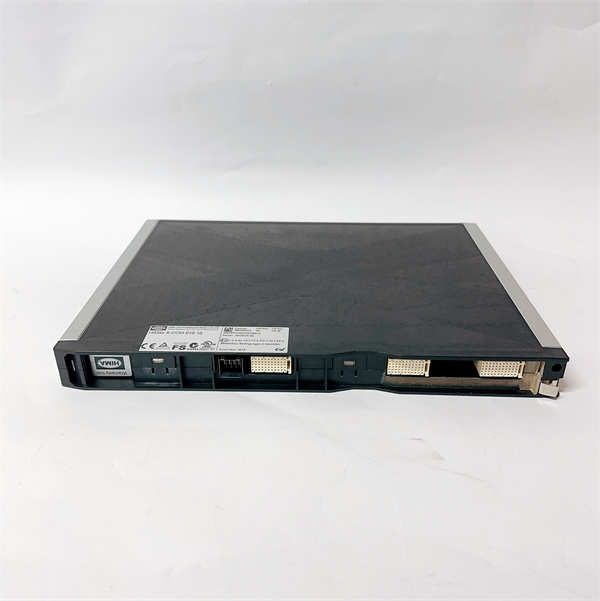

HIMA X-COM01010 985260010

Technical Specifications

Main Features and Advantages

Deterministic Safety Data Exchange:
The HIMA X-COM01010 985260010 employs time-stamped messaging with µs-level synchronization via IEEE 1588 PTPv2, ensuring event logs maintain sequence integrity during forensic analysis. Its dual-arm Cortex-A9 processors segregate safety-critical traffic from non-critical data streams.

Cybersecurity by Design:
Integrated hardware security module (HSM) enforces certificate-based authentication and role-based access control. Communication channels utilize session-specific encryption keys that automatically rotate every 15 minutes, preventing man-in-the-middle attacks.

Fault-Tolerant Architecture:
Redundant power inputs with passive current sharing ensure continuous operation during single-source failure. The HIMA X-COM01010 985260010‘s “Safe Link Detection” feature automatically disables ports experiencing persistent errors, maintaining SIL 3 availability.

Advanced Diagnostics:
Real-time monitoring of CPU load, memory usage, and network latency via embedded web server. Event buffering stores 50,000 timestamped records during communication outages, with automatic resynchronization upon link restoration.

Application Field

The HIMA X-COM01010 985260010 is indispensable in safety-critical processes requiring certified data integration:

Oil & Gas: Transmits Emergency Shutdown System (ESD) valve positions and fire/gas detector status from offshore platforms to onshore control rooms via satellite links

Chemical Plants: Integrates burner management system (BMS) trip events with DCS historians for OSHA PSM compliance audits

Power Generation: Streamlines turbine overspeed protection data to condition monitoring systems, enabling predictive maintenance of mechanical seals

Pharmaceutical: Ensures 21 CFR Part 11 compliance by time-synchronizing safety interlocks with electronic batch records

Rail Transportation: Relays vital signaling system diagnostics to maintenance centers via OPC UA Pub/Sub architecture

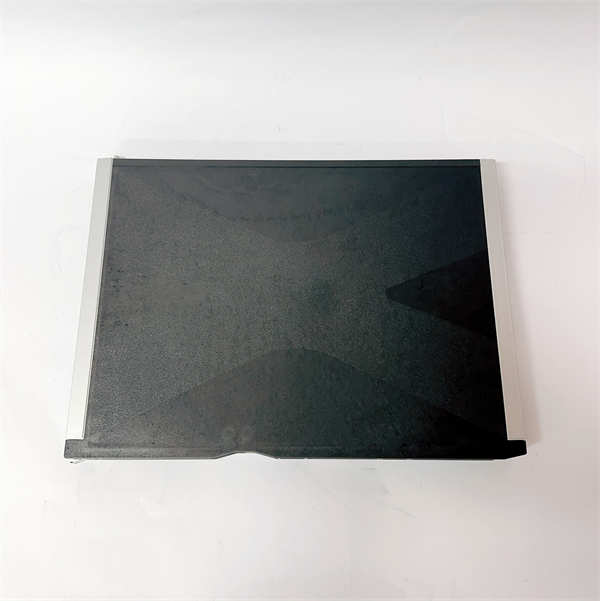

HIMA X-COM01010 985260010

Related Products

HIMA X-CPU01010: SIL 4 Certified Central Processor for HIMax systems

HIMA X-DI01610: 16-Channel Digital Input Module for safety sensors

HIMA X-PS01010: Redundant Power Supply Module

HIMA X-BET01010: Baseplate for X-COM01010 mounting

HIMA X-COM02010: Advanced version with PROFIsafe and EtherCAT support

HIMA 985260011: Extended temperature variant (-50°C to +85°C)

HIMA Safety Manager Software: Configuration suite for X-COM01010

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (HIMax series baseplates). Discharge static via wrist strap before handling. Pre-configure IP addresses and firewall rules offline using HIMA Safety Manager software. Ensure cabinet clearance ≥50mm for heat dissipation.

Maintenance recommendations:
Monitor communication load via web interface; sustained >70% requires topology optimization. Update firmware during planned outages using cryptographically signed packages only. Perform annual dielectric strength test (500 V DC) on communication lines. Replace after 15 years or when diagnostic LEDs indicate persistent memory errors.
