Description

The GE UR6DH represents a high-tier protective relay within General Electric’s Multilin Universal Relay (UR) series, engineered for advanced motor protection and system monitoring in mission-critical industrial environments. Building upon the legacy of the UR platform, the GE UR6DH integrates enhanced cybersecurity protocols and dual-redundant communication capabilities, making it ideal for modern networked automation systems. This relay delivers comprehensive protection for medium-voltage motors (up to 15 kV), generators, and feeders against complex electrical faults, including phase asymmetry, ground leakage, underfrequency, and harmonic distortion. Its modular design supports hot-swappable I/O and communication cards, enabling seamless field upgrades without process interruption.

Equipped with GE’s patented FlexLogic™ and Dynamic Thermal Memory algorithms, the GE UR6DH continuously adapts protection thresholds based on real-time motor thermal profiles and load cycles. The relay features 128-sample/cycle waveform capture for precise transient analysis and supports IEEE 1588 Precision Time Protocol (PTP) for microsecond-level event synchronization across distributed assets. As a cybersecurity-hardened device, the GE UR6DH complies with IEC 62443 standards and offers role-based access control, firmware signature validation, and encrypted data logging to safeguard against industrial threats.

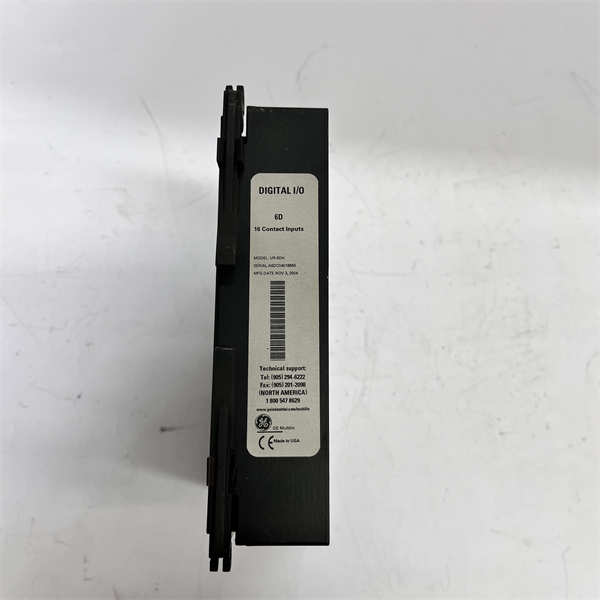

GE UR6DH

Technical Specifications

Main Features and Advantages

Cyber-Resilient Architecture: The GE UR6DH incorporates hardware-based secure boot, authenticated firmware updates, and role-based user privileges to prevent unauthorized access. Its encrypted event logs and syslog forwarding enable compliance with NERC CIP and IEC 62443 standards.

Advanced Protection Algorithms: Utilizing real-time positive/negative sequence separation, the relay detects unbalanced loads 50% faster than conventional devices. Machine learning-based bearing wear analysis predicts mechanical failures by correlating vibration harmonics with load cycles.

High-Speed Connectivity: Dual Ethernet ports with PRP/HSR redundancy protocols ensure zero-packet-loss communication. The integrated IEC 61850-9-2 LE process bus eliminates traditional wiring by digitizing CT/VT inputs. GE’s Enervista™ Suite 3.0 enables drag-and-drop logic customization and automatic documentation generation.

Application Field

The GE UR6DH excels in cybersecurity-sensitive and high-availability environments. In power generation, it protects critical assets like hydrogen-cooled generators and excitation systems, providing synchronized phasor measurements for grid stability. For oil & gas, it secures subsea pumping systems with SIL 2-certified safety interlocks and methane detection logic.

In smart grids, the relay enables peer-to-peer load shedding via GOOSE messaging, preventing cascade failures. Manufacturing facilities deploy the GE UR6DH for robotics motor protection, where its<10ms>

Related Products

GE UR6CH: Predecessor model with standard cybersecurity (no HSM).

GE UR7DH: Enhanced version with arc-flash detection and 12 GB event storage.

GE C90: Distance protection relay for EHV transmission lines.

GE F35: Feeder relay with integrated capacitor bank control.

GE B90: Busbar differential system for substations.

GE L30: Line current differential relay.

GE 869: Motor protection relay with integrated HMI.

GE T35: Transformer relay with dual-core processing.

Installation and Maintenance

Pre-installation preparation: Validate network security policies before deploying the GE UR6DH. Segregate control traffic using VLANs and pre-configure certificates via Enervista™. Ensure DIN rail mounting surfaces meet<0 m="" flatness="" tolerance.="" use="" cat6e="" shielded="" cables="" for="" ethernet="" connections="" and="" maintain="" mm="" separation="" from="">480V conductors.<!--0.5mm--><!--0-->

Maintenance recommendations: Conduct semi-annual cybersecurity audits using GE’s Vulnerability Assessment Tool. Calibrate analog inputs annually with 0.05% accuracy sources. Monitor relay health via embedded SNMP agents and replace the real-time clock battery every 7 years. For firmware updates, enable signed package verification and perform fallback tests.
