Description

The HIMA Z7149 is a high-integrity safety relay module engineered for critical shutdown applications in HIMA’s HIMatrix safety system. Designed to meet SIL 3 requirements (IEC 61508) and TÜV-certified for functional safety, this robust output module provides fail-safe switching of emergency circuits in process industries. The Z7149 features eight independent relay channels with forced-guided contacts (EN 50205), ensuring positive isolation during de-energization for valves, motors, or shutdown actuators. Its dual-coil design enables both normally open (NO) and normally closed (NC) operation within the same module, simplifying cabinet wiring while maintaining safety integrity.

Integrated within HIMA’s fault-tolerant architecture, the HIMA Z7149 continuously monitors contact welding and coil integrity through patented current surveillance technology. The module supports hot-swapping during operation without compromising the safety loop – a critical feature for continuous processes requiring zero downtime maintenance. When deployed in HIMatrix racks, the Z7149 automatically synchronizes its diagnostics data with the central safety controller via the proprietary HIMatrix bus. For engineers designing burner management systems (BMS) or emergency shutdown (ESD) systems, this relay module delivers the industry’s fastest de-energization time (≤15ms) while achieving hardware fault tolerance (HFT=1) for single-channel use.

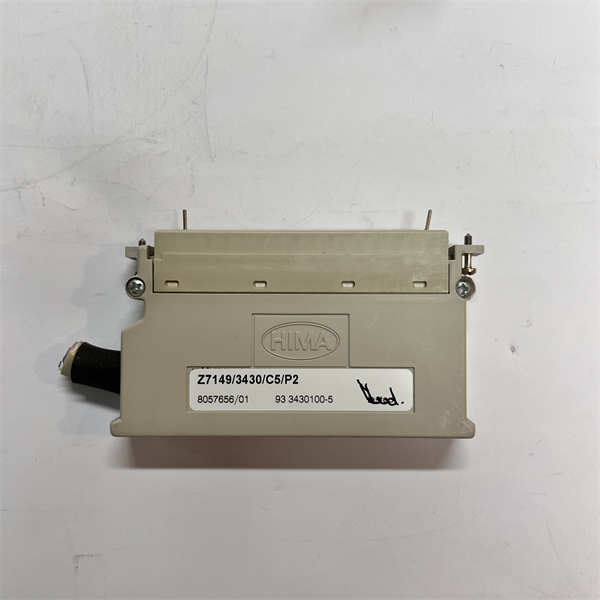

HIMA Z7149

Technical Specifications

Main Features and Advantages

Fail-safe relay technology: The HIMA Z7149 incorporates magnetically coupled contacts with mechanical forcing guides that physically prevent simultaneous NO/NC closure. This patented design ensures positive disconnection during safety trips while providing definitive contact position feedback to the safety controller. Each channel features independent short-circuit protection and surge suppression (10kV/1.2µs) for reliability in electrically harsh environments.

Diagnostic coverage excellence sets this module apart. Continuous coil current monitoring detects open circuits before safety function demands, while contact surveillance identifies welding within 50ms through current imbalance detection. The Z7149 supports mixed voltage switching (24VDC and 230VAC) on the same module without cross-interference. For maintenance teams, front-accessible LED per channel status and mechanical contact position indicators simplify troubleshooting. The module’s pluggable terminal blocks enable wiring verification prior to module installation. When integrated with HIMA’s Safety Manager software, the Z7149 automatically generates test sequences for proof testing documentation, reducing validation time by 70% compared to conventional relays.

Application Field

The HIMA Z7149 is indispensable for safety instrumented systems (SIS) where reliable de-energization is paramount. In oil & gas refineries, it executes final element actions for emergency shutdown valves during overpressure events, with SIL 3-certified performance ensuring process safety availability >99.99%. Power plants deploy this module for turbine overspeed protection systems, where its ≤15ms response time prevents catastrophic failure during load rejection.

Chemical processing facilities utilize the Z7149 for reactor quench systems, controlling deluge valves and inhibitor injection pumps during runaway reactions. Offshore platforms rely on its marine-certified construction for fire & gas system dampers and emergency ventilation shutdown. Pharmaceutical manufacturers leverage its audit trail capability for FDA 21 CFR Part 11-compliant batch safety interlocks. The module’s vibration resistance (IEC 60068-2-6) makes it suitable for compressor station ESD systems, while its wide temperature tolerance ensures operation in desert pipeline pumping stations or Arctic LNG facilities.

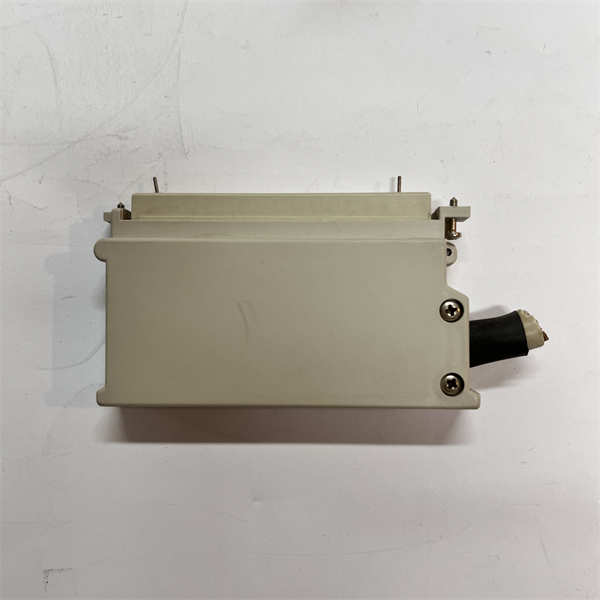

HIMA Z7149

Related Products

HIMA Z7148: 16-channel relay module for high-density applications

HIMA F8650X: HIMatrix central safety controller

HIMA F8627A: Digital input module for SIL 3 signals

HIMA Z7231: Analog output module

HIMA F8621D: Communication processor

HIMA F35: Compact safety PLC for smaller systems

Safety Manager: Configuration and diagnostics software

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (HIMatrix F86xx series) and configure channel properties in Safety Manager software before mounting the Z7149. Ensure adequate ventilation spacing (≥50mm above/below module) and proper earthing (≤0.1Ω). Perform insulation resistance test (>100MΩ at 500VDC) between adjacent circuits.

Maintenance recommendations: Conduct annual contact resistance measurement (<100m>HIMA Z7149 module after 50% of rated mechanical life or if diagnostic fault frequency increases. Always verify forced-guided contact separation during proof testing using the mechanical indicator window. Maintain environmental conditions within specification to prevent contact oxidation.
