Description

The ALSTOM N897066510E safety-certified controller, combined with the N897066010M AOVD analog output module and N897066000A interface base, forms a high-precision SIL4-compliant control subsystem for critical railway signaling and traction power applications. This integrated solution delivers exact voltage/current commands to field devices like variable frequency drives (VFDs), electro-pneumatic regulators, and proportional valves, ensuring precise control of train acceleration, braking, and station systems. The N897066510E executes vital control algorithms with triple modular redundancy (TMR), while the N897066010M AOVD converts digital commands into isolated 0-10V/4-20mA outputs with per-channel diagnostics. The N897066000A base provides secure backplane connectivity, galvanic isolation (>2500V AC), and transient protection, maintaining signal integrity in EMI-heavy rail environments.

Designed for mission-critical operations, this subsystem achieves deterministic response within 15ms and incorporates continuous cross-channel validation. The N897066010M AOVD features active output sinking/sourcing, HART protocol pass-through for smart devices, and configurable fail-safe states (hold last value/zero-scale/max-range). When paired with the N897066510E‘s advanced diagnostics engine, operators gain real-time insights into loop health, predictive maintenance alerts, and cybersecurity event logging. Encased in EN 50155 TX-rated housings, this solution withstands temperatures from -40°C to +85°C, high humidity, and severe vibration – making it indispensable for modern rail automation where precision analog control intersects with absolute safety.

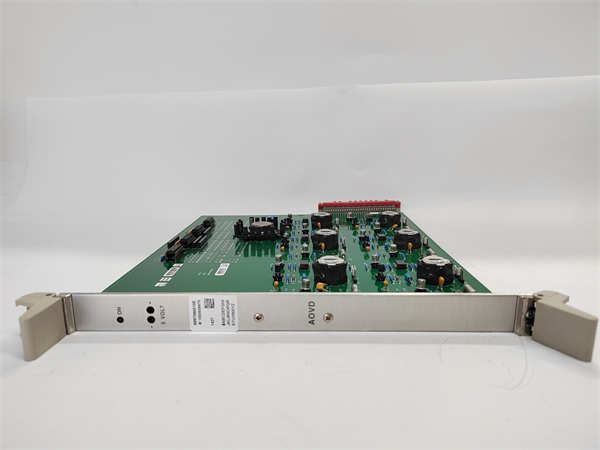

ALSTOM N897066510E N897066010M AOVD N897066000A

Technical Specifications

Main Features and Advantages

Precision Output Control: The N897066010M AOVD delivers industry-leading ±0.05% accuracy with 16-bit resolution, enabling exact control of traction motor torque or brake cylinder pressure. Auto-calibration routines compensate for temperature drift, maintaining precision over decades of service.

Cybersecurity Integration: The N897066510E implements hardware-enforced security with secure boot, encrypted configuration files, and role-based access. Unauthorized parameter changes trigger immediate alerts and output freezing via the N897066000A‘s watchdog circuitry.

Advanced Diagnostics Suite: Per-channel monitoring detects open wires (<1s>N897066510E track calibration drift trends, recommending maintenance before accuracy degrades beyond SIL4 tolerances.

HART Smart Device Integration: Unique among rail analog modules, the N897066010M AOVD supports HART FSK signal pass-through on 4-20mA channels, enabling bidirectional communication with smart valves/actuators without additional hardware.

Environmental Hardening: Triple-layer conformal coating protects PCBs from condensation and corrosive atmospheres. Gold-plated connectors on the N897066000A ensure corrosion-free backplane contact in coastal/tunnel applications.

Redundancy Support: Hot-swappable design allows module replacement in <5>N897066010M AOVD supports output mirroring for redundant field devices, while the N897066510E enables control processor fallover within 50ms.

Application Field

This subsystem is essential for traction power control in electric rail networks, where the N897066010M AOVD regulates rectifier/converter output voltages with SIL4 precision. In train braking systems, it governs electro-pneumatic valves to maintain deceleration profiles within ±0.1 m/s² tolerance.

Metro platform screen doors rely on its analog outputs for smooth, position-controlled operation, synchronized with train arrival/departure signals processed by the N897066510E. Station climate control utilizes 4-20mA outputs to modulate chillers and fans, with HART integration enabling valve health monitoring.

For high-speed tilting trains, the subsystem controls hydraulic actuators adjusting carbody angles during curves. In freight locomotive testing bays, it commands load banks simulating gradient resistance. Tunnel ventilation control depends on its EMI immunity to operate VFDs near traction power cables, while the N897066000A‘s surge protection handles switching transients. Any safety-critical application requiring exact analog command signals under extreme conditions leverages this Alstom solution.

Related Products

N897066011M AOVD+: Enhanced version with 16-bit resolution and SIL4+ certification.

N897066510F: Next-gen controller with integrated cybersecurity co-processor.

N897066000B: Interface base with integrated heat sinks for tunnel applications.

N897066020M AIVD: 8-channel analog input module for sensor integration.

N897068000A: Dual-redundant power supply for critical racks.

N897065100R: 32-ch digital input module for status monitoring.

N897066000C: Base with added diagnostic LEDs for field troubleshooting.

N897066010L AOVD: Legacy version compatible with Smartlock 300 systems.

N897069900A: Fiber-optic extension module for remote I/O placement.

ALSTOM N897066510E N897066010M AOVD N897066000A

Installation and Maintenance

Pre-installation preparation: Verify rack grounding resistance <0>N897066000A base pins for deformation. Pre-load configuration to N897066510E via Alstom’s KeyTool with hardware security token. Calibrate all N897066010M AOVD channels using traceable reference meters. Ensure adequate clearance for heat dissipation around modules.

Maintenance recommendations: Annually, verify calibration accuracy at 0%, 50%, and 100% points. Quarterly, clean backplane connectors with non-residue contact cleaner. Monitor N897066510E diagnostics for HART communication error rates (>5% indicates EMI issues). Replace modules showing >0.1% annual accuracy drift. For N897066010M AOVD in high-vibration zones, retighten terminal screws per EN 50155 maintenance schedules. Always use ESD protection when handling modules.
