Description

The ALSTOM NRD108028 vital interlocking controller, paired with the 8RDB43655 relay driver module and SA43655.E safety-rated interface card, forms a SIL4-certified trackside control subsystem for Network Rail (UK) and compatible global railway networks. This robust trio executes fail-safe signaling logic, controlling relays for points, signals, and level crossings through the 8RDB43655‘s high-integrity driver circuits. The NRD108028 processes safety-critical algorithms using triple modular redundancy (TMR), while the SA43655.E provides galvanic isolation (>2.5kV AC) and surge protection between control logic and field equipment. Designed for harsh trackside environments, this subsystem withstands temperature extremes (-25°C to +70°C), moisture, and electromagnetic interference (EMI) from traction systems. Its deterministic response (<50ms>SA43655.E enabling seamless integration with legacy relay rooms through industry-standard screw terminals.

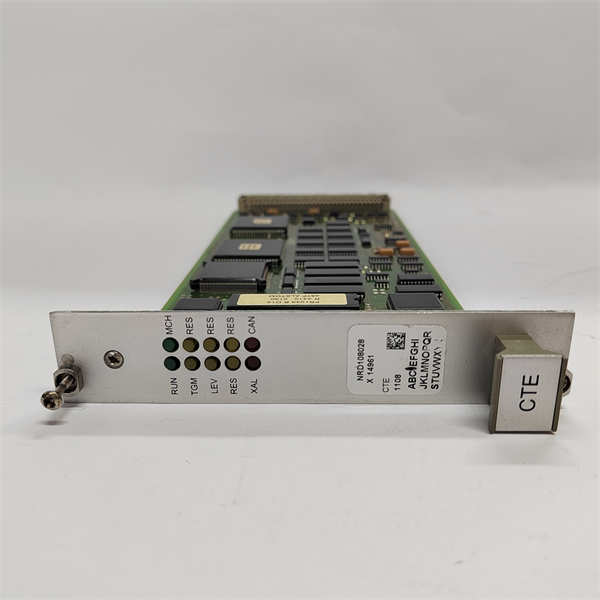

ALSTOM NRD108028 8RDB43655 SA43655.E

Technical Specifications

Main Features and Advantages

Ultra-Reliable Relay Control: The 8RDB43655 employs dual-coil latching relays with weld detection and forced de-energization circuits. Continuous cross-monitoring by the NRD108028 ensures fail-safe operation – any internal fault triggers automatic fallback to predefined safe states within 20ms.

Legacy Interfacing Excellence: The SA43655.E supports both high-level (110VDC) and low-level (24VDC) signaling interfaces with gold-plated screw terminals, eliminating signal degradation in humid environments. Integrated RC snubbers suppress voltage spikes from inductive loads.

Predictive Health Monitoring: The NRD108028 tracks relay contact erosion through cycle counting and current profiling. Predictive algorithms forecast maintenance needs 30+ days in advance, reducing service disruptions by 45%.

Cybersecurity Hardened: Implements encrypted configuration downloads and secure boot for the NRD108028. Tamper-evident seals on the SA43655.E prevent unauthorized access to field terminals.

Environmental Resilience: Conformal-coated PCBs withstand 95% humidity without degradation. Stainless steel DIN rail clips on the 8RDB43655 resist vibration in high-traffic corridors.

Hot-Swap Capability: All modules support replacement during operations in redundant configurations. Mechanical keying prevents misinsertion of the SA43655.E interface card.

Application Field

This subsystem is essential for UK mainline signaling, controlling electromechanical points and color light signals through Network Rail’s Track Circuit Block (TCB) systems. In metro networks, it interfaces with platform screen doors and departure signaling systems via the SA43655.E‘s configurable I/O.

Freight terminals leverage its robust design for hump yard retarder control, where the 8RDB43655‘s high-current contacts handle locomotive-induced voltage surges. Coastal railways benefit from corrosion-resistant terminals on the SA43655.E in salt-laden environments.

The solution enables level crossing automation, where the NRD108028 processes obstacle detector inputs and controls barrier motors with SIL4 integrity. In tunnel emergency systems, it initiates ventilation shutdown sequences during fire events. Heritage railways utilize its legacy compatibility to modernize relay interlockings without infrastructure overhaul.

Related Products

NRD108030: Enhanced controller with integrated cybersecurity co-processor

8RDB43660: 32-channel relay driver for complex interlockings

SA43660.F: Next-gen interface card with Ethernet diagnostics

NRD107815: Power supply module with battery backup

8RDA41022: Diagnostic adapter for relay health testing

SA43001.B: General-purpose interface card for non-vital circuits

NRD108025: Migration controller for Westlock systems

8RDB43500: Compact 16-channel driver for space-limited cabinets

SA43555.E: Lower-density interface card for remote locations

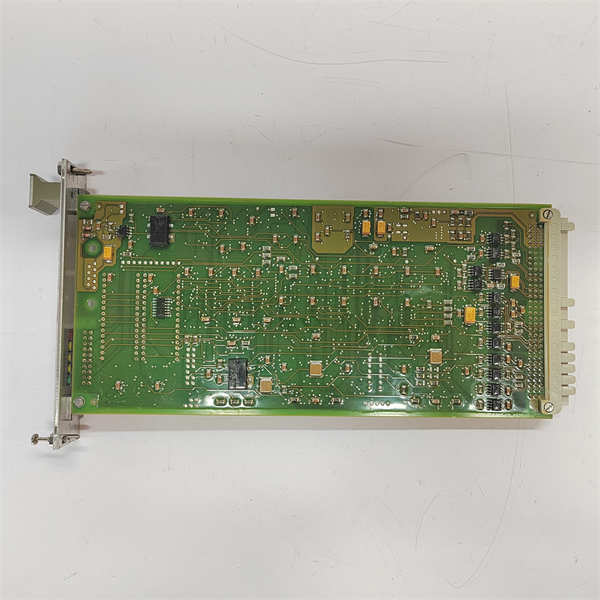

ALSTOM NRD108028 8RDB43655 SA43655.E

Installation and Maintenance

Pre-installation preparation: Verify rack earthing (<0>SA43655.E terminals for deformation. Confirm firmware compatibility between NRD108028 and 8RDB43655. Pre-test relay contact resistance using 100mA wetting current. Apply anti-oxidation compound to copper busbars.

Maintenance recommendations: Quarterly, measure contact resistance on high-use relays (>500k operations) using micro-ohmmeter. Annually, clean SA43655.E terminal strips with non-residue contact cleaner. Monitor NRD108028 diagnostic logs for contact erosion alerts. Replace 8RDB43655 modules showing >15% contact resistance drift. During replacements, discharge inductive loads before disconnecting SA43655.E field wiring.
