Description

The ALSTOM NRD108031 vital processing controller, integrated with the TRVC070999000 track vacancy detection module and BOTTOM interface chassis, forms a SIL4-certified train detection subsystem for Network Rail (UK) and compatible global railway networks. This ruggedized assembly executes fail-safe occupancy verification through axle counting technology, where the TRVC070999000 processes wheel sensor inputs with triple-redundant validation, while the NRD108031 correlates data across sections for block occupancy status. Housed in the reinforced BOTTOM chassis with IP54 protection, this solution withstands extreme trackside conditions including vibration (EN 61373 Cat.1 Class B), temperature swings (-25°C to +70°C), and electromagnetic interference from 25kV AC traction systems. Its deterministic <15ms>

The subsystem features integrated cybersecurity with signed firmware validation and tamper-evident mechanical seals. The BOTTOM chassis provides galvanic isolation (>2.5kV AC) between logic and field circuits, while offering tool-less module replacement and standardized DIN rail mounting. For rail operators, this delivers precise train tracking with 99.99% availability, reduces false occupancy triggers through adaptive signal filtering, and enables predictive maintenance via embedded health analytics in the NRD108031 controller.

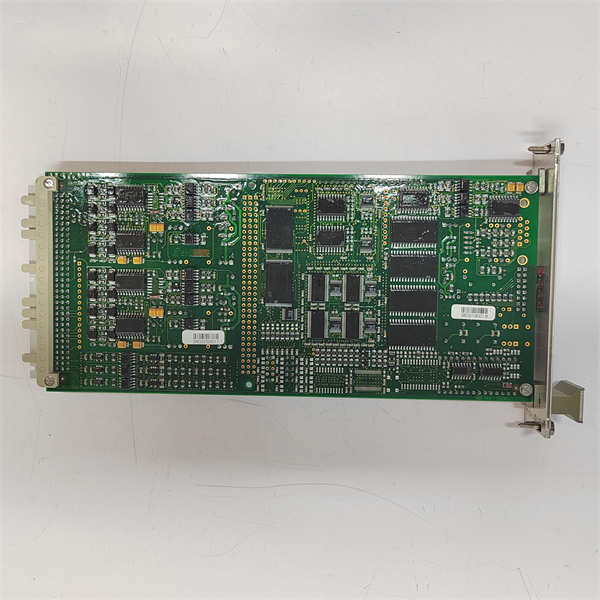

ALSTOM NRD108031 TRVC070999000 BOTTOM

Technical Specifications

Main Features and Advantages

Fail-Safe Sensor Processing: The TRVC070999000 employs three independent evaluation channels with 2-out-of-3 voting. Mismatches trigger <10ms>NRD108031 for forensic analysis.

Environmental Hardening: Pressurized nitrogen cavities in the BOTTOM chassis prevent condensation in humid tunnels. Stainless steel EMI gaskets achieve >120dB RF immunity near electrified lines. Conformal-coated electronics resist salt fog (ISO 9227).

Dynamic Signal Adaptation: Auto-calibration compensates for ballast conductivity changes and rail contamination. Real-time FFT analysis in the TRVC070999000 distinguishes train signatures from EMI noise with 40dB SNR margin.

Predictive Diagnostics: The NRD108031 monitors sensor sensitivity degradation, cable capacitance drift, and connector oxidation. Generates maintenance alerts 60+ days before failures using machine learning models.

Cyber-Resilient Operation: Hardware-enforced secure boot and encrypted configuration files prevent unauthorized access. The BOTTOM chassis includes tamper switches that trigger logic reset if opened without security token.

Rapid Deployment: Pre-configured mechanical interface in the BOTTOM chassis accepts standard Network Rail conduit entries. Slide-in modules enable field replacement in <10>

Application Field

This subsystem is deployed across UK mainlines for Automatic Track Warning Systems (ATWS), where it provides SIL4-certified track vacancy data to signalers. In metro networks, it enables moving-block operations by verifying train positions for CBTC systems at 90-second headways.

Freight terminals leverage its immunity to wheel contamination (rust, snow) for accurate wagon counting in hump yards. Coastal routes benefit from corrosion-resistant sensor interfaces in salt-laden environments. Level crossings depend on its deterministic response to confirm section clearance before barrier retraction.

Tunnel safety systems utilize the solution for evacuation routing verification during emergencies. Heritage railways integrate it as a drop-in replacement for mechanical treadles, maintaining vintage signaling aesthetics while adding SIL4 diagnostics. Border security zones deploy its tamper-proof design to detect unauthorized track intrusions.

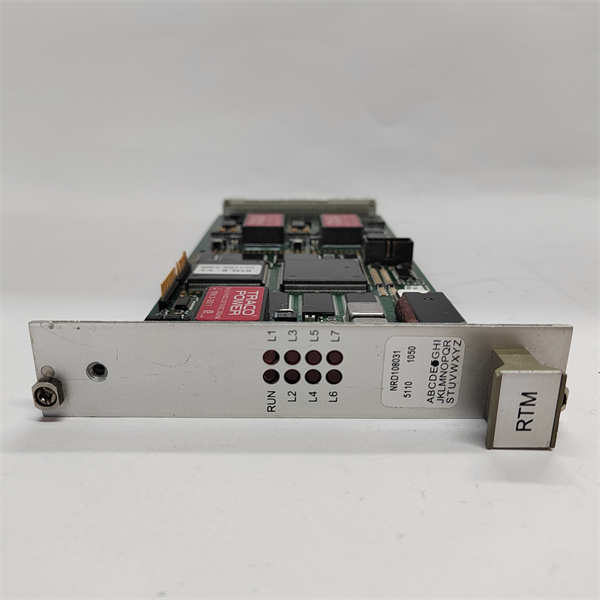

ALSTOM NRD108031 TRVC070999000 BOTTOM

Related Products

NRD108032: Enhanced processor with integrated GNSS timestamping

TRVC071000000: Evaluator with 5G interference rejection

TOP: Complementary upper chassis for full enclosure

NRD107900A: Trackside junction box with surge protection

AXS5000-R: Retroreflective wheel sensor kit

NRD108030: Migration controller for legacy TRV systems

TRVC070998000: Compact evaluator for limited-space sites

BOTTOM-HV: High-voltage variant for 110VDC signaling areas

SAF-RAIL-20: Conduit adapter kit for Network Rail standards

ALSTOM NRD108031 TRVC070999000 BOTTOM

Installation and Maintenance

Pre-installation preparation: Verify ballast resistance (>2Ω·km) per NR/L3/SIG/11216. Calibrate wheel sensors using reference gap tool. Ground BOTTOM chassis to <0>NRD108031 via encrypted USB dongle. Apply antioxidant gel to copper power busbars.

Maintenance recommendations: Quarterly, clean wheel sensor faces with non-abrasive solvent. Annually, verify isolation resistance (>100MΩ @ 2.5kV DC) between field/logic circuits. Monitor NRD108031 predictive fault scores – replace TRVC070999000 if sensitivity degradation exceeds 15%. Torque terminal screws to 0.6Nm during servicing. After flood events, perform full dielectric test on BOTTOM chassis interfaces.
