The National Instruments sbRIO-9607 is a rugged, reconfigurable embedded control and acquisition system built on NI’s reconfigurable I/O (RIO) architecture, combining a real-time processor, user-programmable FPGA, and industrial I/O in a compact, fanless design. Engineered for demanding applications requiring high reliability in extreme environments, this system integrates a dual-core ARM Cortex-A9 processor (667 MHz) and a Xilinx Artix-7 FPGA with 33,280 logic cells for custom timing, control, and signal processing. The sbRIO-9607 delivers deterministic performance for machine monitoring, power grid control, and mobile test systems with its -40°C to 85°C operating range, 50g shock resistance, and corrosion-resistant enclosure. Its integrated 8-channel 24-bit ADC, 4-channel 16-bit DAC, and 24 digital I/O lines provide flexible connectivity, while LabVIEW FPGA programming enables hardware-level customization without VHDL expertise.

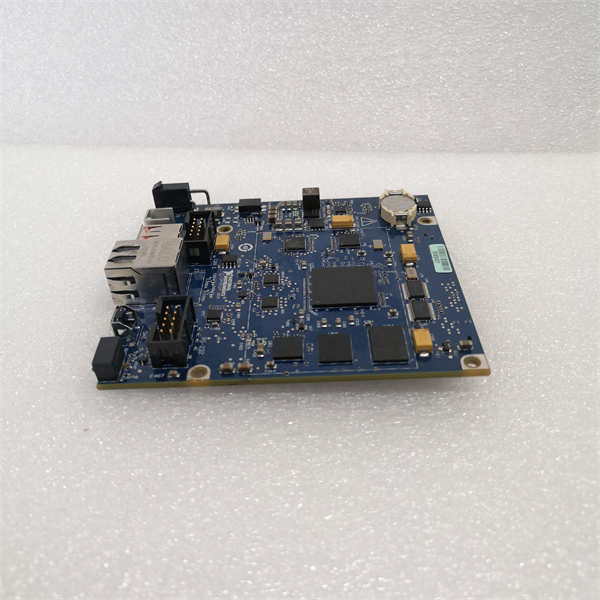

NI SBRIO-9607
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | sbRIO-9607 |
| Manufacturer | National Instruments (NI) |
| Processor | Dual-core ARM Cortex-A9 @ 667 MHz |
| FPGA | Xilinx Artix-7 (XC7A75T, 33,280 logic cells) |
| Analog Inputs | 8 channels, 24-bit, ±10V, 50 kS/s/ch |
| Analog Outputs | 4 channels, 16-bit, ±10V, 100 kS/s/ch |
| Digital I/O | 24 lines (5V/TTL, 10 MHz counter/timers) |
| Memory | 512 MB DRAM, 4 GB eMMC storage |
| Operating System | NI Linux Real-Time |
| Connectivity | Gigabit Ethernet, USB 2.0, RS232, CAN |
| Operating Temperature | -40°C to 85°C |
| Shock/Vibration | 50g shock (11ms), 5g RMS vibration |
| Power Input | 9–35V DC (terminal block) |
| Safety Certifications | UL 61010-1, IEC 61131-2 |
| Dimensions | 90 x 130 x 110 mm |
Main Features and Advantages
Hybrid Processing Architecture: Seamlessly partitions tasks between real-time processor (deterministic control) and FPGA (sub-μs I/O response) for complex embedded applications.
Extreme Environment Ruggedization: Fanless conduction cooling withstands thermal shock, dust, and humidity. Conformal-coated PCB resists corrosive atmospheres in offshore/military deployments.
Integrated Signal Conditioning: Onboard IEPE excitation for accelerometers, 4–20mA current loops, and 0–10V sensor interfaces eliminate external hardware.
Custom I/O Timing: FPGA enables hardware-triggered acquisitions with <10>
Streamlined Development: LabVIEW RIO Toolkit allows graphical FPGA programming with pre-built IP cores (filters, encoders, PWM).
Application Field
The NI sbRIO-9607 excels in embedded systems requiring harsh-environment operation:
Energy Grid Monitoring: Synchrophasor measurement (IEEE C37.118) for substation automation
Mobile Machinery: Vibration analysis on mining vehicles with GPS-synchronized data logging
Aerospace Test Rigs: Strain-gauge acquisition during thermal vacuum chamber testing
Industrial Prototyping: Real-time motor control validation with custom PWM algorithms
Environmental Sensing: Distributed water quality monitoring with SD card backup

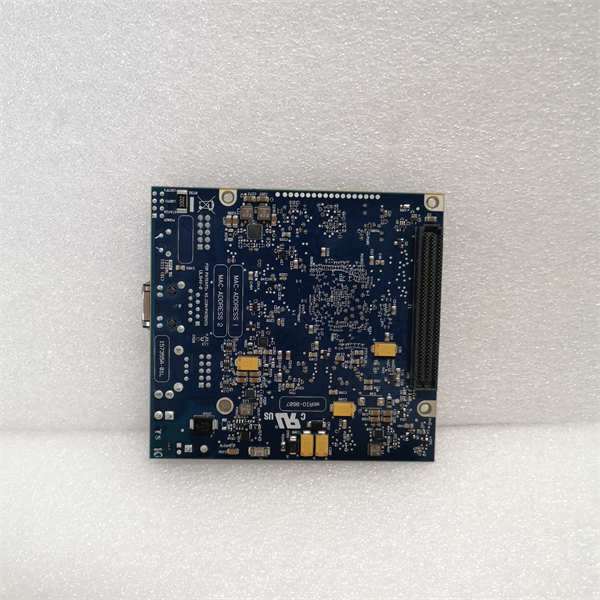

NI SBRIO-9607
Related Products
sbRIO-9606: Lower-cost variant with Xilinx Zynq-7010 FPGA
cRIO-904x: Modular CompactRIO systems for expansion
NI 9234: 4-channel IEPE module for vibration add-ons
Single-Board RIO Starter Kit: Development bundle with accessories
myRIO-1900: Academic/education-focused embedded platform
LabVIEW Real-Time Module: Mandatory development software
NI 9853: CAN interface module for vehicle networks
CompactDAQ Chassis: Alternative for benchtop systems
Installation and Maintenance
Pre-installation preparation: Verify power supply stability (ripple <200mV>
Maintenance recommendations: Update firmware annually via NI Update Service. Monitor eMMC health using NI Disk Health Monitor tool. Clean air vents quarterly in dusty environments. Calibrate analog I/O every 24 months with NI-CAL.
