Description

The Bently Nevada 3500/25 125792-01 is a high-precision Keyphasor® module within the industry-leading 3500 machinery protection system, engineered to provide critical phase reference signals for rotating equipment monitoring. This module captures precise shaft rotational position through proximity probes, magnetic pickups, or optical sensors, generating a once-per-revolution (1P/Rev) pulse essential for vibration phase analysis and speed tracking. The Bently Nevada 3500/25 enables accurate identification of imbalance, misalignment, and resonance conditions by time-synchronizing vibration data with shaft angular position. Designed for seamless integration into 3500 series racks, it supports configurable input types (AC/DC coupled) and offers programmable signal conditioning with adjustable filtering. Its robust design ensures reliable operation in harsh environments like power plants, offshore platforms, and compressor stations. The module’s fail-safe architecture and SIL 2 compliance make it indispensable for safety-critical applications where real-time fault detection prevents catastrophic machinery failure. The suffix 125792-01 denotes specific hardware revisions for enhanced temperature resilience and signal integrity.

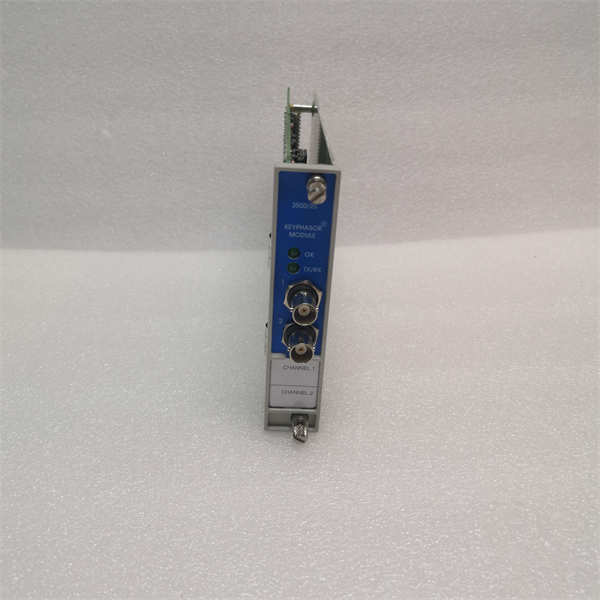

BENTLY 3500/25 125792-01

Technical Specifications

Main Features and Advantages

Phase Reference Accuracy: The Bently Nevada 3500/25 125792-01 delivers ±0.5° phase angle accuracy at 1× RPM, enabling precise vibration vector analysis for fault diagnosis. Its adaptive signal conditioning automatically compensates for sensor gap variations and electrical noise. Dual-sensor voting logic eliminates single-point failures, while integrated diagnostics monitor sensor health and signal validity. The module’s programmable notch filter suppresses electrical interference from VFDs or grid harmonics.
Advanced Integration: Direct synchronization with 3500/42M vibration modules allows phase-coherent FFT analysis. Non-volatile memory retains calibration during power loss. LED status indicators provide instant visual health reporting (signal strength, alarms). The 3500/25 supports “first-notch” detection for gearbox monitoring and integrates with System 1® for phase trend analytics. Hot-swappable design reduces MTTR during maintenance.

Application Field

The Bently Nevada 3500/25 125792-01 is vital for phase-sensitive condition monitoring in critical rotating assets. In gas/steam turbines, it synchronizes blade-pass vibration analysis and detects combustion instability. For centrifugal compressors, it identifies aerodynamic instabilities like surge or rotating stall through phase shifts. Petrochemical plants rely on it for pump cavitation detection and motor soft-foot diagnosis. Power generation facilities use it to monitor generator eccentricity and exciter alignment. In marine propulsion, it tracks propeller shaft torsional vibrations. The module’s extended temperature rating (125792-01) suits Arctic oilfields and desert-based compressor stations. API 670 compliance ensures adoption in offshore platforms for cargo pumps and gas injection turbines.

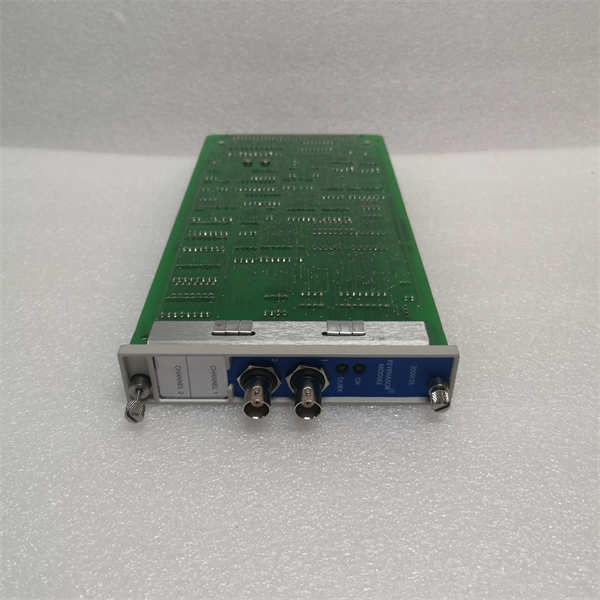

BENTLY 3500/25 125792-01

Related Products

3500/42M: Dual-channel vibration monitor for synchronized phase analysis.

3500/15: Redundant tachometer module for overspeed protection.

3500/22M: Transient data recorder for capturing startup/shutdown vibrations.

3500/92: Communication gateway for DCS/PLC integration.

3300 XL 8mm Proximity Probe: Keyphasor signal source for radial position.

3500/32M: Relay module for trip/alert outputs.

3500/53M: Temperature monitor for bearing/rotor thermal protection.

System 1®: Predictive analytics software for phase trend diagnostics.

3500/77: Dynamic position monitor for radial shaft displacement.

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (supports any 3500-series slot). Calibrate Keyphasor probes per Bently Nevada’s gap-voltage tables. Ensure shielded twisted-pair cabling with <5> Maintenance recommendations: Validate signal amplitude quarterly using oscilloscope trace. Clean magnetic pickup surfaces annually to prevent flux loss. Test phase coherence during turbine run-ups. Replace sensors if signal-to-noise ratio drops below 10:1. Utilize the 3500/25’s built-in diagnostics to log signal integrity metrics.
