Description

The HIMA F3330 984333002 is a high-availability safety controller from HIMA’s F35 series, engineered for SIL 4-certified applications demanding the highest integrity in functional safety systems. Designed to IEC 61508 and IEC 61511 standards, this module executes critical safety logic for emergency shutdown (ESD), fire and gas (F&G), and turbine protection with deterministic sub-10 ms response times. The F3330 984333002 employs a quad-redundant architecture featuring four parallel ARM Cortex-R5 processors that perform continuous “2-out-of-4” voting, eliminating single-point failures while maintaining <99>HIMA F3330 operates in extreme conditions (-40°C to +85°C) with conformal-coated electronics resistant to corrosive gases, making it indispensable for offshore platforms, refineries, and chemical plants where fail-safe performance is non-negotiable.

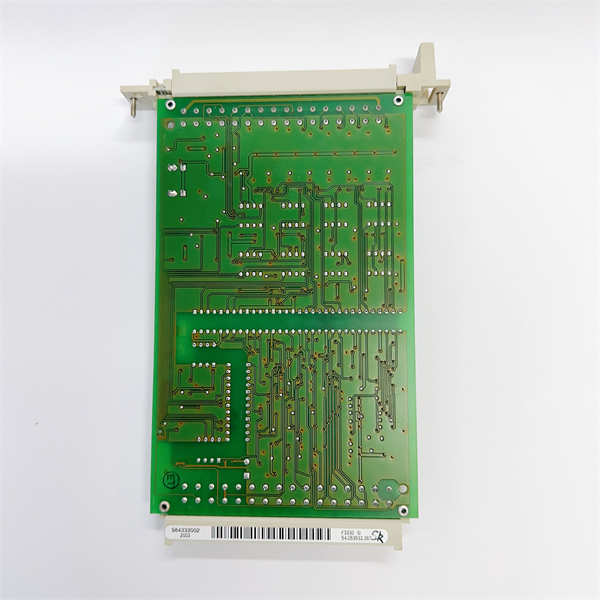

HIMA F3330 984333002

Technical Specifications

Main Features and Advantages

Ultra-High Integrity Architecture: Quad-redundant processors run diversified software on isolated hardware lanes, detecting latent faults within 10 µs. Automatic channel exclusion ensures continuous operation during failures, achieving PFDavg <10>

Cybersecurity Fortification: Implements hardware-based secure boot with TPM 2.0 and runtime intrusion detection. Firmware updates require cryptographically signed packages (AES-256-GCM), while physical key-lock mechanisms prevent tampering.

Deterministic Performance: Dedicated FPGA co-processors handle time-critical tasks like turbine overspeed detection (<2>

Legacy Migration Simplified: Emulates older HIMA platforms (e.g., H51q) via compatibility mode in HIMatrix software, reducing revalidation costs by 50%. Integrated HART multiplexing eliminates external hardware for field device diagnostics.

Application Areas

The HIMA F3330 984333002 dominates ultra-critical safety scenarios:

Offshore Oil & Gas: Subsea blowout preventer (BOP) control with SIL 4-certified valve sequencing

Nuclear Power: Reactor trip systems meeting IEEE 603 Class 1E requirements

Chemical Plants: High-integrity pressure protection (HIPPS) for ethylene crackers

Rail Transportation: SIL 4 signaling control for high-speed train collision avoidance

Hydrogen Production: Electrolyzer shutdown logic with H₂ leak detection

Pharma: Sterility assurance interlocks in FDA 21 CFR Part 11-compliant bioreactors

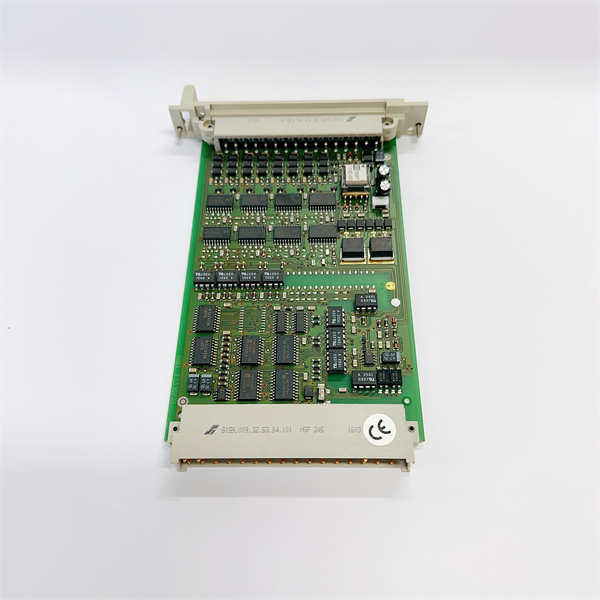

HIMA F3330 984333002

Related Products

HIMA F35 DI 32/24: 32-channel digital input module for F3330 integration

HIMA F8652X: PROFINET IRT communication interface

HIMA F-CPU 6151: SIL 3 controller for lower-integrity applications

HIMA H51q: Legacy controller supported by F3330 emulation mode

HIMA F35 AI 8H: 8-channel HART analog input module

HIMA Z7128: Triple-redundant power supply

HIMA F35 AO 4: Analog output module for valve control

HIMA HiCloud Analytics: SaaS platform for predictive safety system maintenance

Installation and Maintenance

Pre-installation preparation: Validate rack seismic bracing per IEEE 344 (Zone 4 requirements). Disconnect all field power before module insertion. Pre-configure safety logic via HIMatrix v10.2+ using TÜV-certified function blocks. Ensure Class I Div 1 conduit seals for hazardous area cabling.

Maintenance recommendations: Generate quarterly diagnostic reports via HiCloud Analytics to monitor processor divergence. Replace air filters every 6 months in dusty environments. Perform full SIL verification every 5 years per IEC 61511 Annex F. Never bypass voting logic during online modifications.
