Description

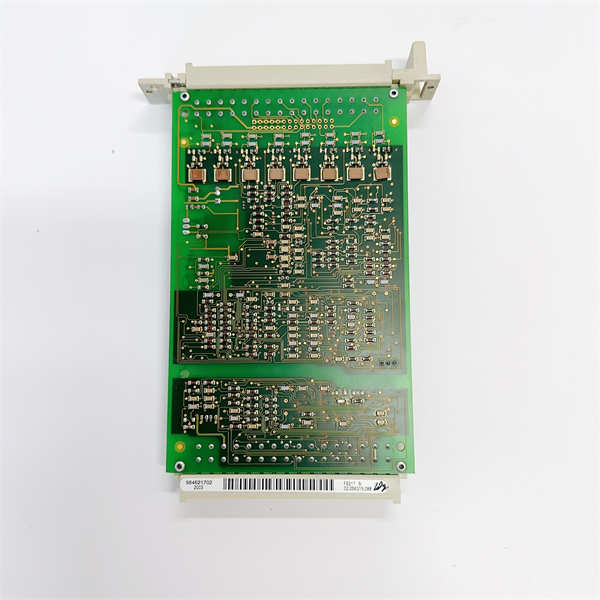

The HIMA F6217 984621702 is a high-integrity Digital Input Module designed for the HIMatrix safety-critical control system. Engineered to meet rigorous functional safety standards, this module interfaces with field devices (e.g., emergency stops, pressure switches) in safety instrumented systems (SIS). The F6217 984621702 provides 16 channels of 24V DC isolated inputs with advanced diagnostics, enabling real-time monitoring of process hazards in high-risk industries. As a core component of HIMA’s fail-safe architecture, it achieves SIL 3 (Safety Integrity Level 3) certification per IEC 61508/61511, ensuring reliable shutdown actions during critical events.

Featuring dual-channel redundancy and cross-circuit comparison, the F6217 984621702 detects internal faults (wire breaks, short circuits) and external field device failures with >99% diagnostic coverage. Its hot-swappable design allows maintenance without system downtime, while integrated galvanic isolation (up to 2.3 kV) prevents ground loops and electrical noise interference. Compatible with HIMatrix F35/F65 CPUs, the module supports TÜV-certified safety logic for applications demanding zero tolerance for failure. The F6217 984621702 exemplifies HIMA’s commitment to operational safety in extreme environments, from oil refineries to chemical reactors.

Technical Specifications

Main Features and Advantages

Uncompromising Safety Integrity: The F6217 984621702 achieves SIL 3 certification with hardware fault tolerance (HFT=1) and >99% diagnostic coverage. Dual-processor technology performs continuous self-tests, including signal comparison and pulse testing, to detect latent failures before compromising safety functions.

Advanced Diagnostics: Each channel independently monitors field wiring for open circuits, short-to-ground, and cross-circuit faults. LED per-channel status indicators provide instant visual feedback, while detailed diagnostics are reported to the HIMatrix CPU for centralized alarm management.

Robust Design for Critical Environments: With an extended operating temperature range (-40°C to +70°C) and 2.3 kV isolation, the F6217 984621702 withstands harsh industrial conditions. ATEX/IECEx certification allows deployment in explosive atmospheres (Zone 2/22). Hot-swap capability minimizes downtime during module replacement.

Seamless Integration: The module interfaces natively with HIMatrix safety controllers via high-speed backplane communication. Configuration is simplified through HIMA’s Safety Manager software, enabling automatic code generation for TÜV-certified safety logic blocks.

Application Field

The F6217 984621702 is deployed in safety-critical shutdown systems where failure could result in catastrophic consequences. In oil & gas, it monitors emergency shutdown valves (ESD) and fire/gas detection systems on offshore platforms. Chemical plants utilize the module for high-integrity burner management (BMS) and reactor pressure/temperature trip systems.

Power generation applications include turbine overspeed protection and boiler safety interlocks. The F6217 984621702 also safeguards automated railway signaling systems, ensuring fail-safe responses to track occupancy signals. Its SIL 3 rating makes it ideal for LNG liquefaction trains, where cryogenic temperatures demand extreme reliability. In pharmaceutical manufacturing, the module enforces safety interlocks on high-pressure sterilization equipment.

Related Products

F6218: Complementary 16-channel digital output module for SIL 3 actuation.

F35xx Series: HIMatrix safety CPUs for logic processing.

F6321: Analog input module for safety-critical process variable monitoring.

F70 Communication Module: Profibus-DP/FOUNDATION Fieldbus interface.

HIMatrix Rack: Backplane chassis for module installation.

F8621: Advanced digital input module (next-gen with higher channel density).

Safety Manager Software: Configuration and diagnostics suite for F6217 984621702.

HIMA F6217 984621702

Installation and Maintenance

Pre-installation preparation: Verify HIMatrix rack compatibility and available slots. Disconnect system power before installation. Configure address settings via DIP switches and confirm grounding integrity to minimize EMI. Ensure field wiring adheres to HIMA’s separation guidelines (safety/non-safety signals).

Maintenance recommendations: Perform annual diagnostic function tests using Safety Manager software. Monitor channel LED status during operation. Replace the F6217 984621702 in hot-swap mode only with HIMatrix systems supporting live insertion. Store spare modules in ESD-protected packaging. Avoid exposing connectors to dust/moisture during maintenance.
