Description

The HIMA F7553 984755302 is a high-reliability Central Processing Unit (CPU) Module for the HIMatrix F35 safety system, engineered to execute SIL 3 (Safety Integrity Level 3) safety logic in critical industrial processes. As the computational core of HIMA’s fault-tolerant safety instrumented systems (SIS), this module processes complex shutdown sequences with deterministic response times, ensuring fail-safe operation in hazardous environments like oil refineries, chemical plants, and power generation facilities. The F7553 984755302 features dual-processor architecture with continuous self-diagnostics, achieving >99% diagnostic coverage per IEC 61508/61511 standards. It supports redundant configurations via fiber-optic synchronization modules (e.g., F7551) and integrates seamlessly with HIMA’s I/O modules for comprehensive safety monitoring. With its ruggedized design (-40°C to +70°C operating range) and TÜV-certified safety firmware, the F7553 984755302 delivers uncompromising protection for people, assets, and the environment.

Designed for lifecycle longevity, this CPU module enables modernization of legacy safety systems without compromising existing certifications. Its non-volatile memory retains logic configurations during power loss, while built-in cybersecurity features protect against unauthorized access. The F7553 984755302 exemplifies HIMA’s commitment to combining cutting-edge safety technology with backward compatibility, making it a cornerstone for both greenfield installations and brownfield upgrades in high-risk industries worldwide.

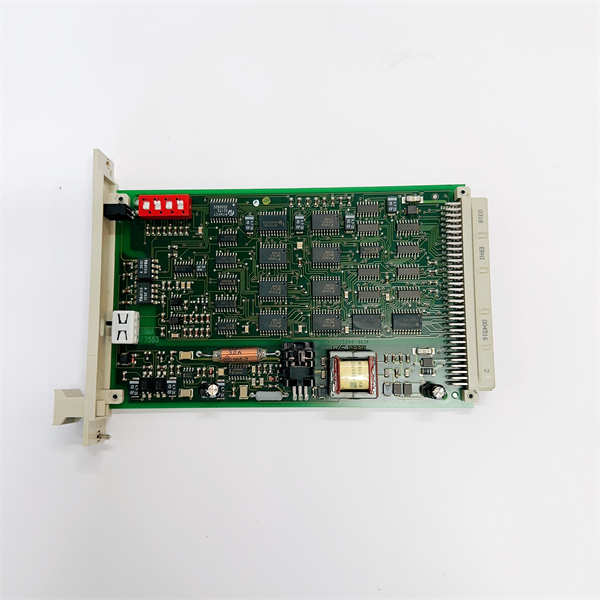

HIMA F7553 984755302

Technical Specifications

Main Features and Advantages

Certified Safety Performance: The F7553 984755302 exceeds SIL 3 requirements with dual-processor comparison technology. Every instruction cycle is executed in parallel, with mismatches triggering immediate safe-state transitions. Hardware-based watchdogs and memory protection circuits achieve >99% diagnostic coverage, detecting latent faults before they compromise safety functions.

Deterministic Response: Engineered for time-critical shutdown scenarios, the module executes safety logic in deterministic cycles as fast as 10 ms. Its priority-driven task scheduler guarantees processing of high-criticality events (e.g., emergency stops) within configurable time windows, crucial for turbine overspeed or gas leak mitigation.

Cybersecurity Hardened: Integrated security features include password-protected firmware updates, communication encryption, and role-based access control. The F7553 984755302 logs all configuration changes and network access attempts, supporting compliance with IEC 62443 standards for industrial security.

Lifecycle Management: Backward compatibility with legacy HIMatrix I/O modules (e.g., F62xx series) reduces migration costs. Non-volatile FRAM memory retains configurations for 20+ years without batteries. Hot-swappable design enables module replacement without process interruption.

Application Field

The F7553 984755302 serves as the brain of safety systems where failures could cause catastrophic consequences. In oil & gas, it manages emergency shutdown (ESD) logic for offshore platforms, including blowout preventer control and fire/gas suppression. Chemical plants deploy it for reactor temperature/pressure trip systems and burner management (BMS) in furnaces.

Power generation applications include turbine protection (overspeed, vibration), boiler safety interlocks, and grid stability controls. For railway signaling, the F7553 984755302 processes vital interlocking logic at junctions. In pharmaceutical manufacturing, it enforces sterile zone access controls and high-pressure vessel safety. Its extreme temperature tolerance (-40°C to +70°C) suits Arctic pipelines and desert mining operations.

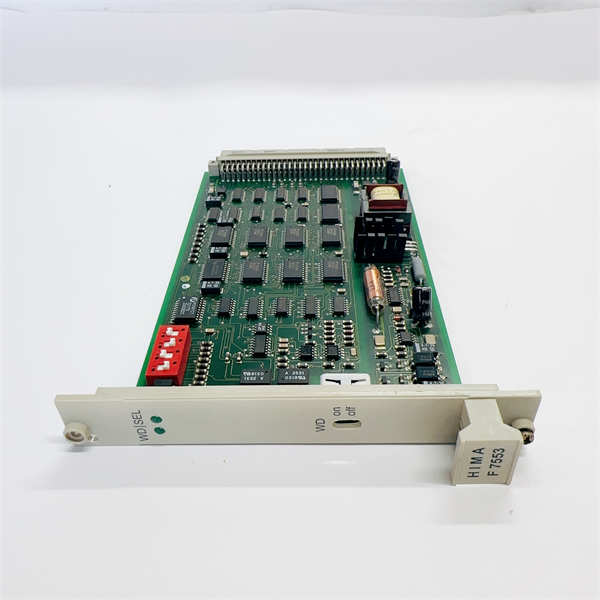

HIMA F7553 984755302

Related Products

F7551: Fiber-optic synchronization module for redundant F7553 984755302 pairs.

F6217: 16-channel digital input module for safety signals.

F6232: 8-channel analog input module for process monitoring.

F8620: Next-generation CPU with enhanced processing speed.

F70 PROFIBUS Module: Interface for field device integration.

HIMatrix Rack F-RACK: Chassis for CPU/I/O module mounting.

Safety Manager Software: Configuration suite for F7553 984755302 logic programming.

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (F-RACK series) and slot availability. Disconnect power before mounting. Configure firmware via Safety Manager software using licensed dongle. Ground the chassis to <1>

Maintenance recommendations: Monitor CPU status LEDs (RUN/ERR) daily. Perform annual full diagnostic tests via Safety Manager. Update firmware only with HIMA-validated packages. Replace the F7553 984755302 hot-swap only in redundant configurations. Store backups of logic configurations offsite. Clean air vents biannually to prevent overheating.
