Description

The ABB KUC711AE101 3BHB004661R0101 is a high-availability Control Processor Module for ABB’s flagship 800xA Distributed Control System (DCS). Engineered for mission-critical industrial automation, this module executes complex control strategies with deterministic performance across continuous process industries. The KUC711AE101 3BHB004661R0101 features dual-core processing and supports redundant 1:1 hot-standby configurations, ensuring zero single-point-of-failure operation in applications like refining, power generation, and chemical manufacturing. Its integrated safety architecture achieves SIL 2 certification (IEC 61508), enabling unified process control and safety functions within a single platform.

With native integration into ABB’s 800xA ecosystem, the module manages data exchange across 20,000+ I/O points while supporting advanced protocols like OPC UA, Modbus TCP, and Profibus. The KUC711AE101 3BHB004661R0101 includes 1GB RAM with error-correcting code (ECC) and battery-backed memory for configuration persistence during outages. Designed for 24/7 operation, it operates in -25°C to +70°C environments with >300,000 hours MTBF. As the computational backbone of 800xA systems, the KUC711AE101 3BHB004661R0101 delivers scalability from small skid-mounted units to plant-wide mega-DCS deployments.

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: The KUC711AE101 3BHB004661R0101 eliminates downtime through seamless 1:1 redundancy. Automatic switchover during failures occurs within milliseconds, maintaining process continuity. Dual independent clock systems and watchdogs ensure processor synchronization integrity.

High-Performance Control: Dual-core processing executes PID loops, sequence logic, and batch recipes simultaneously. Real-time deterministic performance (1 ms task cycles) handles complex model predictive control (MPC) algorithms. ECC memory prevents data corruption in electrically noisy environments.

Seamless 800xA Integration: Native compatibility with ABB’s Aspect Directory enables unified access to process data, alarms, and historian functions. Supports Control Builder M engineering tools for drag-and-drop configuration. Embedded OPC UA server simplifies third-party system integration.

Industrial Ruggedness: Conformal-coated PCB withstands humidity, dust, and corrosive atmospheres. Wide temperature range operation (-25°C to +70°C) suits unmanned substations or desert installations. Vibration-resistant design (5g @ 10-150 Hz) ensures reliability near rotating machinery.

Application Field

The KUC711AE101 3BHB004661R0101 dominates critical process control scenarios requiring uninterrupted operation. In oil refineries, it manages fractional distillation column controls and hydrotreater safety interlocks. Power plants deploy it for boiler-turbine coordination (BTC) and SCR emission systems. Chemical facilities utilize its SIL 2 capability for reactor temperature cascades and exothermic reaction quenching.

For pulp & paper manufacturing, the module synchronizes digester controls and paper machine sectional drives. Water treatment applications include membrane filtration PID tuning and pump station optimization. In metals production, it governs blast furnace oxygen injection and rolling mill tension control. The KUC711AE101 3BHB004661R0101’s deterministic performance is essential for pharmaceutical batch processes requiring FDA 21 CFR Part 11 audit trails.

Related Products

KUC711AE102: Enhanced version with 2GB RAM for data-intensive applications.

SD822 3BSE018294R1: Digital input module for field signal integration.

CI871 3BSE056767R1: Profibus communication interface.

PP825 3BSE042235R1: Power supply unit for 800xA racks.

TA521 3BSE016106R1: Termination assembly for KUC711AE101 3BHB004661R0101.

AC800M Controller: Base platform housing the processor module.

Combi I/O S800: Modular I/O system for expandable signal handling.

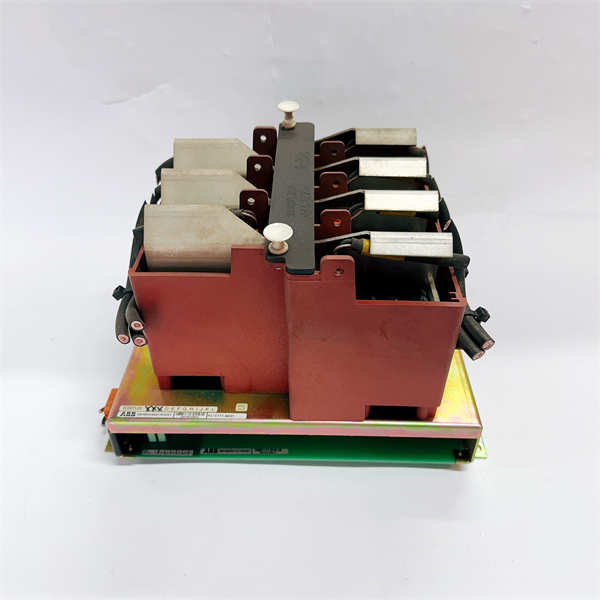

ABB KUC711AE101 3BHB004661R0101

Installation and Maintenance

Pre-installation preparation: Verify compatible AC800M chassis (e.g., PM802F) and firmware version. Discharge static electricity before handling. Configure redundancy via Control Builder M software prior to insertion. Ensure adequate ventilation clearance (>50mm above module).

Maintenance recommendations: Monitor processor health via 800xA diagnostics. Replace backup battery (BB800) every 5 years. Clean air filters quarterly in dusty environments. Update firmware during planned shutdowns using ABB-signed packages. For hot-swap replacement, initiate standby transition before removing the KUC711AE101 3BHB004661R0101.
