The ABB PPC902AE101 3BHE010751R0101 is an advanced Human-Machine Interface (HMI) Panel designed for ABB’s 800xA Distributed Control System, delivering high-visibility process visualization in critical industrial environments. Engineered for 24/7 operation in control rooms and hazardous areas, this 15-inch TFT display combines sunlight-readable brilliance (1000 cd/m²) with touchscreen functionality and physical keys for gloved operation. The PPC902AE101 3BHE010751R0101 serves as a primary operator workstation, providing unified access to process graphics, alarms, trends, and diagnostics across entire plants. Its ATEX/IECEx Zone 2 certification enables deployment in oil refineries, chemical plants, and other explosive atmospheres where standard HMIs would pose safety risks.
Featuring native integration with 800xA’s Aspect Object technology, the panel displays real-time data from thousands of I/O points while supporting multi-client collaboration. The PPC902AE101 3BHE010751R0101 utilizes a ruggedized aluminum enclosure with IP65 front-panel protection, resisting dust, moisture, and chemical splashes. With dual Gigabit Ethernet ports for redundant connectivity and an industrial-grade Intel® processor, this HMI maintains responsive performance during high-alarm scenarios. As a cornerstone of ABB’s operational technology ecosystem, the PPC902AE101 3BHE010751R0101 bridges the gap between control system complexity and operator intuition, enhancing situational awareness while reducing human error.

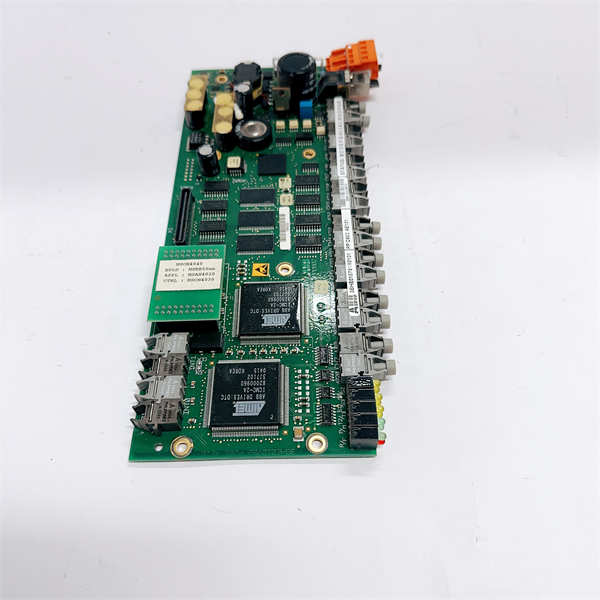

ABB PPC902AE101 3BHE010751R0101
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PPC902AE101 3BHE010751R0101 |
| Manufacturer | ABB |
| Product Type | Industrial HMI Panel |
| Display | 15″ TFT LCD (1024 x 768 / 1280 x 800 configurable) |
| Brightness | 1000 cd/m² (sunlight readable) |
| Touch Technology | Projected capacitive (multi-touch) + 30 physical keys |
| Processor | Intel® Atom™ E3845 Quad-core 1.91 GHz |
| Memory | 4 GB RAM / 32 GB SSD |
| Operating System | Windows 10 IoT Enterprise |
| Hazardous Area Cert | ATEX II 3G Ex ec nC IIC T4 Gc / IECEx Ex ec nC IIC T4 Gc |
| Protection Rating | IP65 (front), IP20 (rear) |
| Communication | 2x GbE, 4x USB, 1x RS-232/485 |
| Power Supply | 24V DC ±10% (60W max) |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions | 408 mm x 339 mm x 89 mm (H x W x D) |
| Mounting | VESA 100mm, panel, or arm |
| MTBF | >100,000 hours |
Main Features and Advantages
Extreme Environment Readiness: Engineered for harsh industrial settings, the PPC902AE101 3BHE010751R0101 features optically bonded glass that eliminates internal condensation and reduces glare. Its 1000-nit display remains visible under direct sunlight, while the IP65 front seal withstands high-pressure washdowns in food/pharma plants.
Intuitive Operation Under Stress: Redundant input methods – multi-touch screen and physical keys – ensure reliable control during emergency situations. Dedicated alarm acknowledge buttons and one-touch screen lockdown prevent accidental operations. Vibration-resistant construction (5g @ 10-150Hz) maintains functionality near rotating equipment.
Seamless 800xA Integration: Native Aspect Directory connectivity displays live P&IDs, asset health data, and historian trends without middleware. Supports simultaneous multi-user collaboration – operators can share views while maintenance technicians access equipment manuals.
Cyber-Secure by Design: Hardware-enforced secure boot, TPM 2.0 encryption, and whitelisting prevent unauthorized code execution. Integrated firewall and VLAN support segment control network traffic. Audit trails comply with NERC CIP and IEC 62443 standards.
Application Field
The PPC902AE101 3BHE010751R0101 dominates control rooms where visualization reliability impacts safety and productivity. In offshore platforms, it displays emergency shutdown (ESD) status and wellhead pressures during storms. Chemical plants use it for batch recipe management and reactor temperature trending. Power utilities rely on its sunlight-readable display for turbine control in brightly lit turbine halls.
For water treatment facilities, the panel visualizes filter backwash cycles and pump network maps. Pharmaceutical manufacturers leverage its audit trail capabilities for FDA 21 CFR Part 11-compliant batch reporting. In mining operations, the PPC902AE101 3BHE010751R0101’s dust resistance enables conveyor control in processing plants. Its hazardous area certification makes it ideal for fuel terminal loading gantries and LNG tank farm monitoring.
Related Products
PPC907BE101: 17-inch variant with higher resolution.
PPC922AE101: 22-inch large-screen version for master control stations.
SD832 3BSE018310R1: Redundant power supply for HMI cabinets.
TA524 3BSE016110R1: Mounting kit for PPC902AE101 3BHE010751R0101.
CP635: Compact panel for local equipment control.
Control Builder M: Engineering tool for HMI screen configuration.
S800 I/O Modules: Field devices feeding data to the HMI.

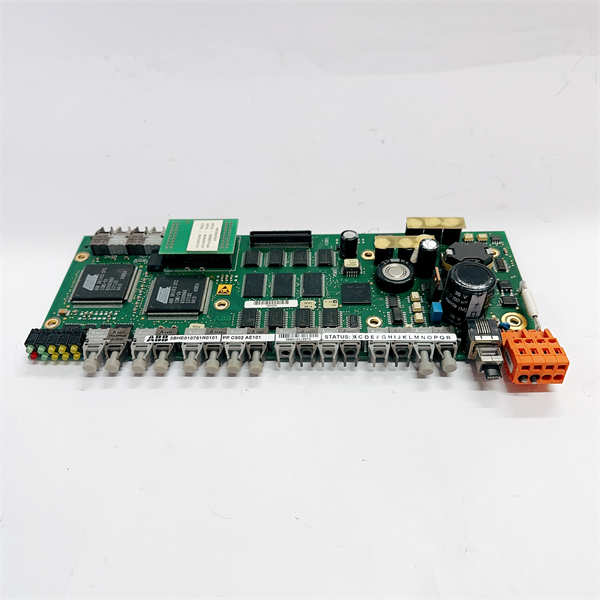

ABB PPC902AE101 3BHE010751R0101
Installation and Maintenance
Pre-installation preparation: Verify hazardous area classification compliance. Ensure mounting surface supports 8kg weight. Route cables through sealed conduits for Zone 2 installations. Configure network settings via offline utility before power-up.
Maintenance recommendations: Clean screen monthly with isopropyl alcohol (no abrasives). Calibrate touchscreen annually. Monitor SSD health through 800xA diagnostics. Update Windows patches only during planned shutdowns using ABB-validated packages. Replace cooling fans every 5 years in dusty environments.
