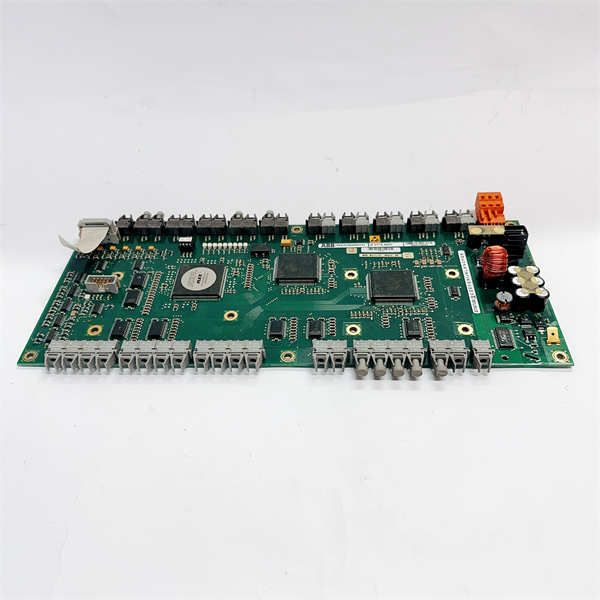

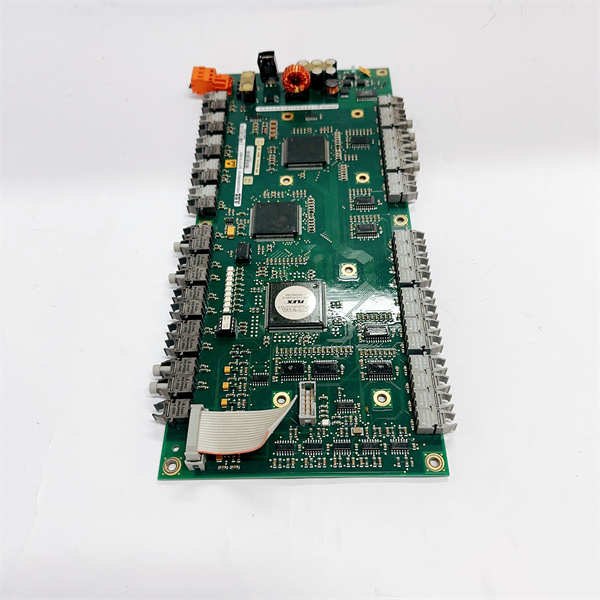

The ABB UFC718AE01 HIEE300936R0101 is a high-density Foundation Fieldbus H1 Interface Module for ABB’s 800xA and Advant Controller 800 series, enabling deterministic process control through FOUNDATION™ Fieldbus technology. Designed for mission-critical applications, this module interfaces with intelligent field devices (transmitters, positioners, analyzers) using the IEC 61158-2 standard, supporting advanced capabilities like control-in-field (CIF) and device diagnostics. The UFC718AE01 HIEE300936R0101 manages up to 4 H1 segments (16 devices each) with 31.25 kbps communication, facilitating bidirectional data exchange for process variables, alarms, and device health metrics.
Featuring galvanic isolation (1500V AC) and redundant power inputs, this module ensures signal integrity in electrically noisy environments like refineries or chemical plants. Its hot-swappable design allows maintenance without system shutdown, while integrated “Segment Redundancy” enables automatic failover if a cable fault occurs. Compatible with AC800M controllers, the UFC718AE01 HIEE300936R0101 bridges legacy Advant OCS systems to modern 800xA architectures, reducing wiring costs by 40% compared to traditional I/O. With SIL 2 capability for safety applications, this module exemplifies ABB’s commitment to open, interoperable fieldbus solutions for continuous process optimization.
ABB UFC718AE01 HIEE300936R0101
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | UFC718AE01 HIEE300936R0101 |
| Manufacturer | ABB |
| Product Type | FOUNDATION Fieldbus H1 Interface |
| Fieldbus Standard | ISA S50.02 / IEC 61158-2 |
| Segments Supported | 4 independent H1 segments |
| Devices per Segment | 16 max (64 total) |
| Baud Rate | 31.25 kbps fixed |
| Isolation Voltage | 1500V AC (field-to-controller) |
| Redundancy | Segment Redundancy (per segment) |
| Power Supply | 24V DC ±10% (dual redundant inputs) |
| Power Consumption | 2.5W (typical) |
| Safety Certification | SIL 2 (IEC 61508) |
| Communication Ports | 8x H1 (FOUNDATION Fieldbus) |
| Diagnostics | Live List Management, DTM/FDT support |
| Operating Temperature | -25°C to +70°C |
| MTBF | >300,000 hours |
| Certifications | UL, CE, ATEX Zone 2 |
Main Features and Advantages
Advanced Control-in-Field: The UFC718AE01 HIEE300936R0101 enables PID loops, interlocks, and complex sequencing to execute directly in field devices, reducing controller load by up to 30%. Native support for ABB’s Resource Blocks and Function Blocks (AI, AO, PID) simplifies configuration.
Deterministic Performance: Hardware-assisted scheduling guarantees 1 ms jitter-free synchronization across all segments. Integrated LAS (Link Active Scheduler) manages communication cycles for time-critical control, ensuring valve position updates within 500 ms.
Comprehensive Diagnostics: Real-time monitoring of device health (e.g., plugged impulse lines, valve stiction) via EDDL/DTM. Segment-level diagnostics detect cable shorts, ground faults, or device dropouts, triggering alerts in 800xA Alarm List.
Lifecycle Efficiency: Hot-swappable module replacement minimizes downtime. Conformal-coated PCB resists corrosive atmospheres. Backward compatibility with legacy Advant Fieldbus AF100 systems simplifies migration.
Application Field
The UFC718AE01 HIEE300936R0101 excels in FOUNDATION Fieldbus-enabled process plants:
Oil & Gas: Manages smart transmitters for custody transfer metering and safety shutdown valves in offshore platforms.
Chemical: Implements reactor temperature cascades using control-in-field between Rosemount™ transmitters and Fisher™ positioners.
Power: Coordinates boiler feedwater control with SIL 2-certified function blocks across H1 segments.
Pharma: Enables FDA 21 CFR Part 11-compliant calibration records from field devices in sterile processing.
Water: Optimizes pump control using pressure/flow transmitters with embedded PID loops.
Related Products
UFC721BE101: PROFIBUS DP-V1 interface module for hybrid installations.
CI854A: Ethernet/IP scanner module for controller integration.
FF-SBx: Fieldbus Segment Protectors for hazardous areas.
TA523 3BSE013226R1: Termination assembly for UFC718AE01 HIEE300936R0101 mounting.
KUC711AE101: SIL 2 controller for safety logic execution.
S900 I/O Fieldbus couplers for remote device clusters.
Field Device Manager™: ABB’s configuration tool for FF devices.
ABB UFC718AE01 HIEE300936R0101
Installation and Maintenance
Pre-installation preparation: Verify AC800M controller compatibility (PM864/PM866). Configure H1 segment parameters (LAS role, device count) via Control Builder M. Ensure proper bus termination (100Ω resistor) at each segment end. Use ABB-recommended fieldbus cables (e.g., Type A).
Maintenance recommendations: Monitor device communication health through Field Device Manager. Perform segment integrity tests annually. Replace backup battery (BB810) every 3 years. Update firmware during planned shutdowns using ABB-signed packages. For hot-swap, deactivate segment redundancy before extraction.
