The ABB UFC719AE01 3BHB003041R0101 3BHB00072R0101 is a high-performance PROFIBUS DP Slave Interface Module for ABB’s AC800M and Advant Controller 800 series, designed to integrate remote I/O subsystems into distributed control architectures. This module enables seamless data exchange between master controllers (e.g., Siemens PLCs) and ABB’s S800 I/O racks via PROFIBUS DP-V1 protocol, supporting deterministic cycle times ≤1 ms for critical process synchronization. The UFC719AE01 3BHB003041R0101 3BHB00072R0101 operates as a decentralized peripheral, extending control capabilities to hazardous or remote locations while reducing cabling costs by up to 60%.
Engineered for industrial resilience, it features dual-port redundancy with integrated repeater functionality, allowing daisy-chaining of up to 3 S800 stations without external hardware. With galvanic isolation (1500V AC) and conformal-coated electronics, the module withstands extreme temperatures (-25°C to +70°C), humidity, and electromagnetic interference. The UFC719AE01 3BHB003041R0101 3BHB00072R0101 supports advanced PROFIBUS diagnostics including module status, slave health monitoring, and real-time I/O validation – essential for safety-instrumented systems requiring SIL 2 compliance. Its hot-swappable design ensures uninterrupted operation during maintenance, making it indispensable for continuous processes in power generation, oil & gas, and manufacturing.

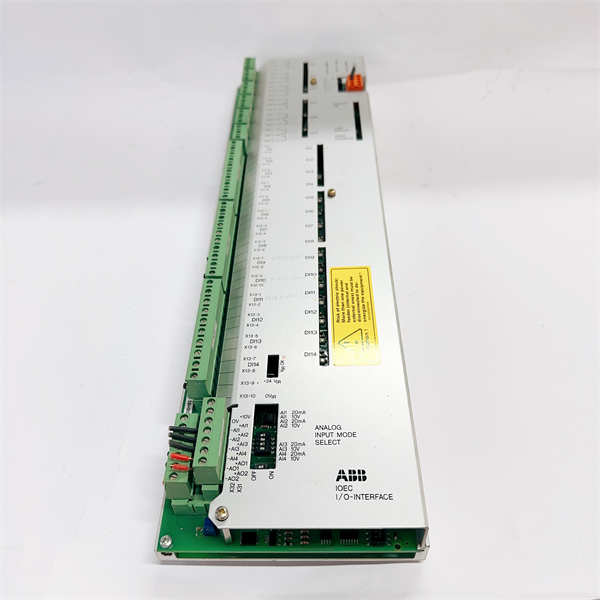

ABB UFC719AE01 3BHB003041R0101 3BHB00072R0101
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | UFC719AE01 3BHB003041R0101 3BHB00072R0101 |
| Manufacturer | ABB |
| Product Type | PROFIBUS DP Slave Interface |
| PROFIBUS Standard | EN 50170 Vol. 2 (DP-V1) |
| Data Transfer Rate | 9.6 Kbps – 12 Mbps (auto-sensing) |
| Max Connected Stations | 3 S800 I/O racks per module |
| I/O Capacity | 256 bytes input + 256 bytes output |
| Isolation Voltage | 1500V AC (field-to-backplane) |
| Redundancy | Dual-port with automatic bypass |
| Response Time | ≤1 ms (at 12 Mbps) |
| Diagnostics | GSD file-based, SYNC/FREEZE support |
| Power Supply | 24V DC ±10% (via S800 baseplate) |
| Power Consumption | 1.2W (typical) |
| Operating Temperature | -25°C to +70°C |
| Certifications | UL, CE, ATEX II 3G Ex ec IIC T4 Gc |
| MTBF | >250,000 hours |
| Connection | 9-pin D-sub (PROFIBUS), DIN 41612 (S800) |
Main Features and Advantages
Decentralized Control Efficiency: The UFC719AE01 3BHB003041R0101 3BHB00072R0101 enables distributed I/O processing near field devices, reducing controller load. Supports Direct Data Mapping – critical I/O points bypass buffer memory for sub-millisecond response in safety interlocks.
Fault-Tolerant Networking: Dual PROFIBUS ports with integrated repeater functionality create self-healing daisy chains. Automatic bypass activates within 50 ms during station failure, maintaining network integrity without master intervention.
Advanced Diagnostics: Live monitoring of slave status via LED indicators and Control Builder M software. Detects cable breaks, short circuits, and node dropouts, triggering alarms in ABB 800xA or third-party DCS/SCADA systems.
Plug-and-Play Integration: Pre-configured GSD files (GSDML) simplify commissioning with Siemens, Rockwell, and other PROFIBUS masters. Hot-swappable module replacement requires no reconfiguration.
Application Field
The UFC719AE01 3BHB003041R0101 3BHB00072R0101 bridges ABB I/O with third-party control systems:
Power Plants: Integrates turbine vibration monitors (S800 AI modules) into Siemens T3000 safety systems.
Automotive: Connects ABB robot controller I/O to production line PLCs for weld gun control.
Oil & Gas: Interfaces subsea valve positioners (S800 DI/DO) with offshore platform DCS.
Pharma: Synchronizes batch reactor S800 analog inputs with Rockwell PlantPAx recipes.
Water Treatment: Networks pump station S800 modules across municipal SCADA systems.

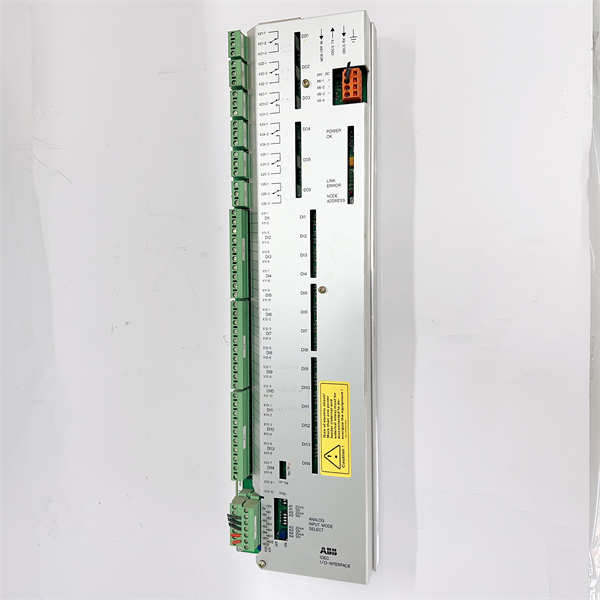

ABB UFC719AE01 3BHB003041R0101 3BHB00072R0101
Related Products
UFC718AE01: FOUNDATION Fieldbus H1 interface module.
SD822 3BSE018294R1: 16-channel digital input for S800 racks.
CI871 3BSE056767R1: PROFIBUS master for AC800M controllers.
TA516: S800 mounting kit for UFC719AE01 3BHB003041R0101 3BHB00072R0101.
KUC711AE101: Controller leveraging PROFIBUS slave data.
PROFIBUS PA Coupler: Links DP networks to PA instruments.
S800 I/O Baseplates: Hardware platform for module installation.
Installation and Maintenance
Pre-installation preparation: Verify S800 baseplate compatibility (e.g., TB801). Set PROFIBUS address via DIP switches (1-125). Ensure bus termination (switch ON at end nodes). Ground shield at controller end only.
Maintenance recommendations: Monitor PROFIBUS diagnostics in Control Builder M monthly. Clean contacts with isopropyl alcohol during annual shutdowns. Replace cooling fans every 5 years in high-dust environments. Update firmware using ABB Service Pack only. For hot-swap: Disable station in master config before removing UFC719AE01 3BHB003041R0101 3BHB00072R0101.
