Description

The ICS Triplex T8403 is a high-integrity Triple Modular Redundant (TMR) Controller module for the Trusted® safety platform, engineered to execute SIL 3 (Safety Integrity Level 3) logic in critical processes where failure is not an option. Designed for extreme reliability in oil & gas, power generation, and chemical applications, the T8403 leverages three independent 32-bit processors that synchronously execute identical logic, with patented “voter” circuitry comparing results every 2 ms. This architecture detects and isolates faults instantaneously while maintaining continuous operation – achieving >99.999% availability even during single or dual failures. The module supports up to 10,000 I/O points across redundant networks and operates across -40°C to +70°C environments with EMI immunity, making it ideal for offshore platforms or turbine control rooms.

As the computational core of Rockwell Automation’s Trusted system, the T8403 integrates seamlessly with legacy Triconex ecosystems while offering modern features like embedded cybersecurity (IEC 62443 compliance) and OPC UA connectivity. Its non-volatile flash memory retains configurations during power loss, while hot-swap capability enables maintenance without process interruption. The T8403 exemplifies industry-leading fault tolerance, providing uncompromised protection for people, assets, and the environment through certified safety performance per IEC 61508/61511 standards.

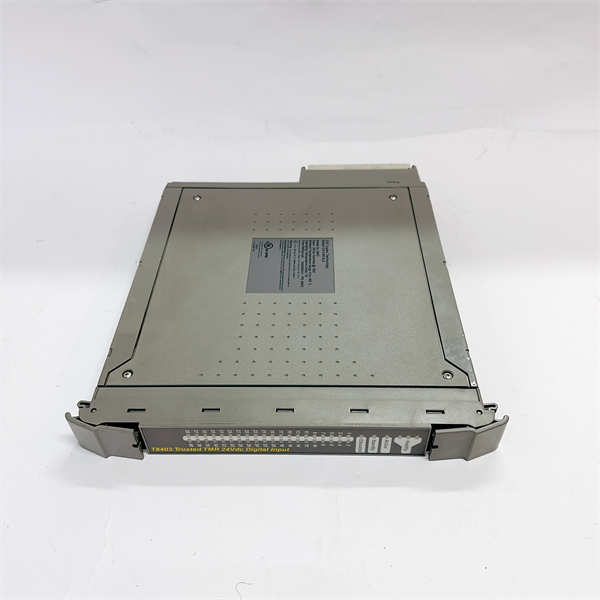

ICS TRIPLEX T8403

Technical Specifications

Main Features and Advantages

Certified Fault Tolerance: Three independent processing channels execute identical logic with hardware-based voting, providing continuous operation despite hardware failures. The T8403 exceeds SIL 3 requirements with diagnostic coverage >99.9% and automatic rejection of erroneous signals.

Deterministic Performance: Sub-millisecond scan times enable critical responses for ESD (Emergency Shutdown) scenarios like gas leaks or turbine overspeed. Hardware-assisted task scheduling guarantees execution deadlines for safety functions.

Advanced Diagnostics: Patented Fault Insertion Testing (FIT) verifies module health without process interruption. Real-time channel mismatch detection identifies latent faults before they impact safety.

Cybersecurity Hardened: Secure boot with cryptographic signature validation prevents unauthorized firmware. Role-based access control and communication encryption meet IEC 62443 standards.

Application Field

The T8403 dominates ultra-critical safety systems:

Oil & Gas: Manages subsea blowout preventer control and offshore platform fire/gas ESD.

Power Generation: Executes turbine trip logic and reactor SCRAM systems in nuclear plants.

Chemical: Controls high-integrity burner management (BMS) for ethylene crackers.

Pharmaceutical: Enforces SIL 3 pressure relief interlocks on API reactors.

Mining: Safeguards autonomous haulage systems in open-pit operations.

Related Products

T8431: Trusted communication module for OPC UA integration.

T8151B: Digital input module for safety signals.

T8311: Analog input module for process monitoring.

TMR I/O Modules: Field interfaces for T8403 systems.

AADvance Controller: Alternative platform for lower SIL requirements.

Trusted Rack: Chassis for T8403 mounting.

FTA 300: Field termination assembly.

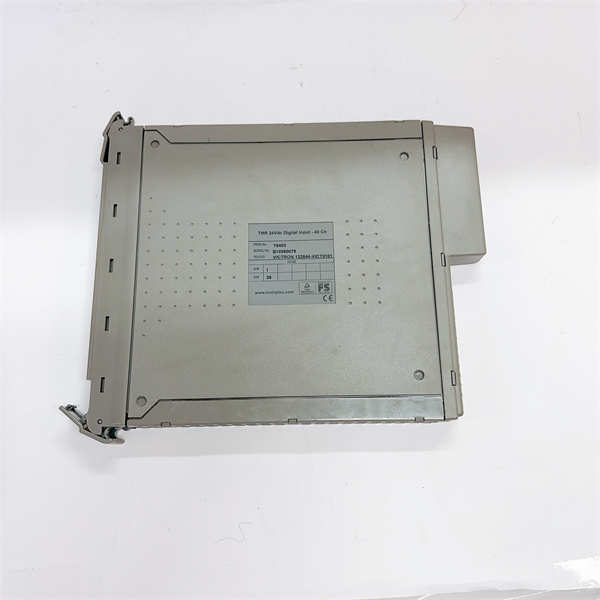

ICS TRIPLEX T8403

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Trusted Series). Discharge static electricity before handling. Configure firmware via TriStation 1131 software. Validate grounding integrity (<1>T8403.

Maintenance recommendations: Perform quarterly Fault Insertion Tests (FIT). Monitor voter mismatch counts via diagnostics software. Update firmware only with Rockwell-signed packages. Replace the T8403 hot-swap by activating standby mode first. Store backups of safety logic offsite.
