Description

The ABB PM902F 3BDH001000R0005 is a high-performance process controller within ABB’s AC 800M series, engineered for mission-critical automation in demanding industrial environments. As the core processing unit of ABB’s 800xA distributed control system (DCS), this ABB PM902F executes complex control strategies with deterministic precision across continuous process and batch operations. Built on a dual-core Intel Atom processor platform, it delivers real-time performance for PID loops, sequence control, and safety interlocks while supporting up to 32MB of application code. The module’s ruggedized design features conformal-coated circuitry and -40°C to +70°C operational tolerance, ensuring reliability in extreme conditions from Arctic oil fields to tropical refineries.

Designed for seamless integration, the ABB PM902F 3BDH001000R0005 supports native connectivity to PROFIBUS DP-V1, Modbus TCP, and OPC UA networks through companion communication interfaces. Its SIL 2-certified architecture enables safety instrumented functions (SIF) without separate safety controllers, reducing system complexity. The ABB PM902F distinguishes itself with 99.999% availability through redundant configurations, hot-swappability, and predictive diagnostics via Control Builder M engineering tools. For brownfield modernization, it maintains backward compatibility with legacy PM861 controllers while enabling migration to virtualized control environments.

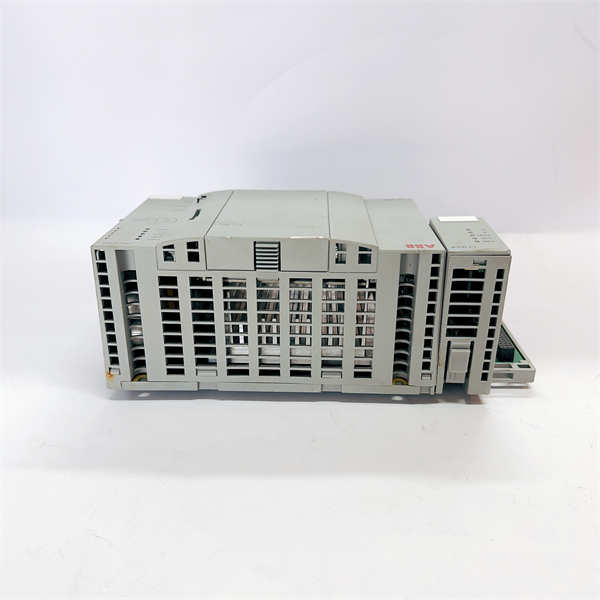

ABB PM902F 3BDH001000R0005

Technical Specifications

Main Features and Advantages

Deterministic Performance: The ABB PM902F executes IEC 61131-3 control logic with ≤1µs jitter, critical for high-speed applications like compressor anti-surge control. Its hardware-based watchdog timer ensures fail-safe operation.

Cyber Security: Integrated TPM 2.0 cryptographic module enables secure boot, firmware signing, and encrypted communications. The ABB PM902F 3BDH001000R0005 complies with IEC 62443-3-3 security level 2 requirements.

Scalable Architecture: Supports daisy-chained S800 I/O racks with 100m fiber-optic extensions. The controller handles up to 100 function blocks per ms scan cycle.

Advanced Diagnostics: Predictive health monitoring tracks component degradation (e.g., capacitor aging) and generates maintenance alerts 30+ days before potential failure.

Virtualization Ready: Runs simultaneously with virtual machines on ABB’s Control Server, enabling hybrid physical/virtual control strategies.

Application Field

The ABB PM902F 3BDH001000R0005 excels in continuous process industries requiring high availability. In oil & gas, it manages offshore platform safety shutdown systems (ESD) and subsea valve control with SIL 2 compliance. Petrochemical plants deploy it for ethylene cracker furnace control, where millisecond response prevents tube overheating.

Power utilities utilize the ABB PM902F for boiler-turbine coordination, synchronizing 500+ I/O points for load-following operations. Pharmaceutical manufacturers leverage its batch execution capabilities for FDA 21 CFR Part 11-compliant recipe management. Water treatment facilities implement this controller for plant-wide SCADA, coordinating pumping stations and chemical dosing across municipal networks.

Related Products

PM903F: Successor model with Intel Celeron processor

CI930F: PROFIBUS interface module for PM902F

SD821: Redundant controller synchronization module

S800 I/O Series: Fieldbus modules for signal interfacing

PP825: Power supply unit for controller baseplate

TA523: Terminal assembly for wiring

AC 800M CEX: Controller extension unit

Control Builder M: Engineering software suite

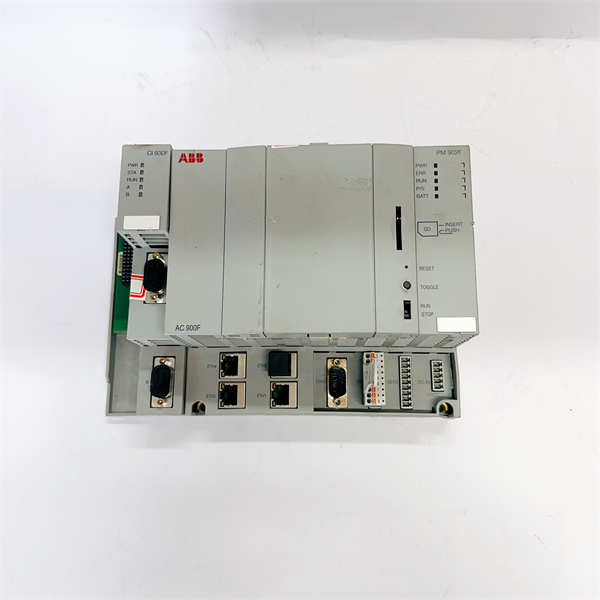

ABB PM902F 3BDH001000R0005

Installation and Maintenance

Pre-installation preparation: Verify baseplate compatibility (e.g., PU811/PU812) and confirm firmware version alignment. Ensure 24VDC power supply meets EN 61131-2 ripple requirements (<5>

Maintenance recommendations: Perform annual controller diagnostics via Control Builder M’s “Health Monitor.” Replace backup batteries (BB810) every 5 years. For the ABB PM902F 3BDH001000R0005, always update firmware in redundant pairs during planned shutdowns. Clean air filters quarterly in high-dust environments.
