Description

The FOXBORO FBM233 P0926GX is a high-density 16-channel Analog Input Module designed for the Foxboro I/A Series Distributed Control System (DCS), delivering precision signal acquisition in critical process industries. This module interfaces with 4–20mA, 0–10V, thermocouple, and RTD field instruments, providing galvanic isolation and advanced diagnostics for each channel. Engineered for hazardous environments, the FBM233 P0926GX features Class I Div 2/ATEX Zone 2 certification and operates reliably from -40°C to 70°C. Its dual-redundant field power inputs and hot-swappable design ensure continuous operation in refineries, chemical plants, and power facilities. The module integrates seamlessly with Foxboro Control Processors via high-speed Foxboro Fieldbus (FOUNDATION™ fieldbus compatible), enabling real-time data processing with ≤0.05% accuracy for regulatory control and safety interlocks.

Technical Specifications

Main Features and Advantages

Precision Measurement:

Multi-Signal Flexibility: Each channel auto-detects and processes mA, voltage, RTD, or TC inputs without hardware reconfiguration, reducing spare parts inventory.

Ultra-High Accuracy: 16-bit ADC resolution with automatic temperature compensation ensures ±0.05% accuracy across the operating range.

Advanced Diagnostics: Continuous monitoring detects broken wires, signal saturation, and calibration drift, triggering alerts in Foxboro I/A Workstation software.

Robust Reliability:

Dual Power Inputs: Redundant 24V DC feeds prevent single-point power failures, critical for safety-critical loops.

Galvanic Isolation: 1500V isolation per channel eliminates ground loops and protects the DCS from field transients.

Hot-Swappable: Replace failed FBM233 P0926GX modules without system shutdown, minimizing process disruption.

Seamless Integration:

Native I/A Series Compatibility: Plug-and-play with Foxboro CP60/CP270 controllers using FBM200-series backplanes.

FOUNDATION Fieldbus H1: Communicates via standardized protocols for third-party device interoperability.

Cyber-Secure: Hardware-level firmware validation prevents unauthorized code execution.

Application Field

The FBM233 P0926GX excels in precision measurement across harsh industrial environments:

Oil & Gas: Monitors wellhead pressures, separator levels, and compressor temperatures in offshore platforms (ATEX Zone 2).

Chemical Processing: Acquires reactor thermocouple data and corrosive fluid levels with gold-plated RTD inputs.

Power Generation: Measures steam drum pressures and turbine bearing temperatures in coal/nuclear plants.

Pharmaceuticals: Controls bioreactor RTDs in cleanrooms with FDA 21 CFR Part 11-compliant data logging.

Water Treatment: Tracks pH/ORP and chemical dosing flows with ±0.05% mA accuracy.

Related Products

FBM242: 16-channel Analog Output module (complements FBM233 P0926GX inputs).

FBM217: 32-channel Digital Input for ESD status monitoring.

CP280: Control Processor for logic execution with FBM233 P0926GX data.

FBM204: 8-channel HART Analog Input (supports smart instrument configuration).

P0926GY: Intrinsically safe variant for Zone 0 applications.

FBM231: 8-channel Thermocouple/RTD module (high-temperature focus).

AIM*AT: Signal conditioner for legacy system integration.

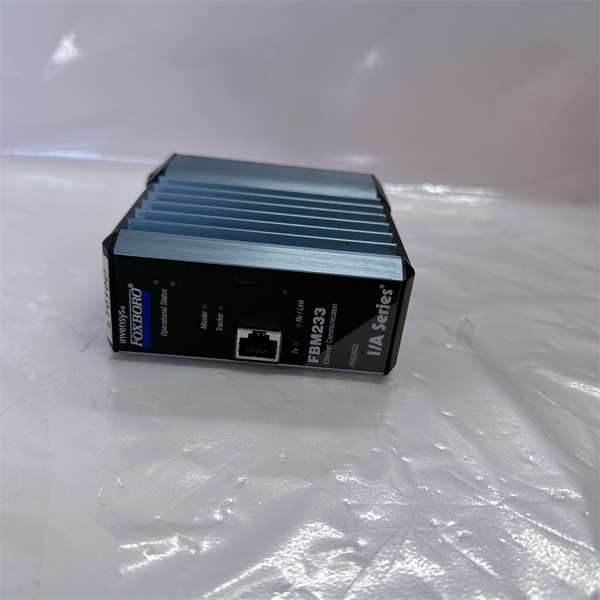

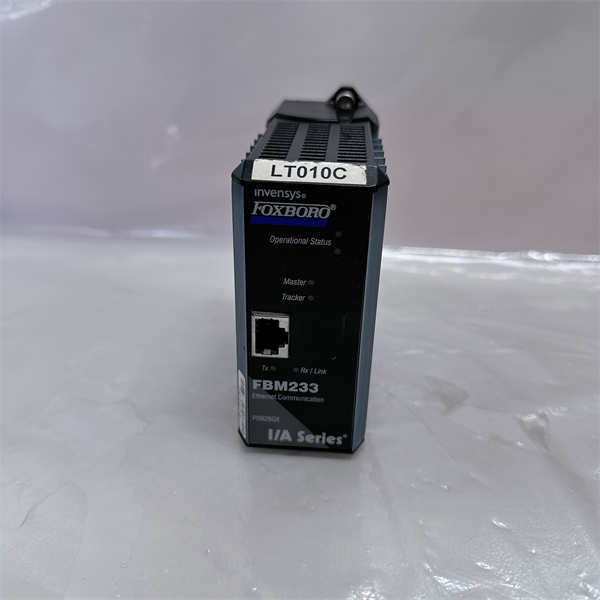

FOXBORO FBM233 P0926GX

Installation and Maintenance

Pre-installation preparation: Verify FBM200-series chassis compatibility (e.g., FBM201/FBM202 carrier). Ground shield wires at the DCS cabinet only. Apply 24V test source to validate power redundancy. Configure channel types in Foxboro I/A Workstation before field wiring.

Maintenance recommendations: Perform annual calibration verification using precision calibrators. Monitor “Channel Health” diagnostics monthly. Replace modules after 10+ hot-swap cycles. Clean terminal blocks biannually in corrosive atmospheres. Update firmware during planned turnarounds to maintain cybersecurity compliance.
