Description

The KONGSBERG RCU502 is a mission-critical Remote Control Unit (RCU) engineered for dynamic positioning (DP) and vessel management systems in offshore and marine applications. As the central processing node in Kongsberg’s K-Pos DP platform, the RCU502 delivers triple modular redundancy (TMR) with 2-out-of-3 voting logic to ensure fault-tolerant control of thrusters, propulsion, and position-reference systems. This ruggedized unit operates continuously in harsh maritime environments, processing real-time sensor data from wind, motion, and GNSS systems to maintain vessel position within 0.5-meter accuracy during complex operations like drilling, subsea construction, or offshore wind turbine installation. The KONGSBERG RCU502 features dual hot-swappable power supplies and autonomous switchover during faults (<20ms>

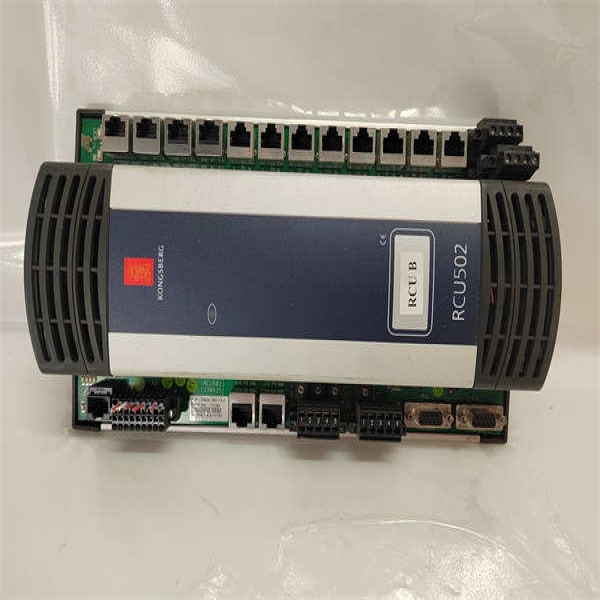

KONGSBERG RCU502

Technical Specifications

Main Features and Advantages

Ultra-Reliable Redundancy: The TMR architecture ensures continuous DP control even during dual faults. Independent processor channels cross-validate computations, with automatic channel isolation upon discrepancy detection.

Advanced Motion Control: Patented algorithms compensate for 6-degrees-of-freedom vessel movement using fused data from MRU, GNSS, and laser positioning systems. Adaptive thrust allocation minimizes fuel consumption during station-keeping.

Cybersecurity Hardened: Implements IEC 62443-3-3 security levels with hardware firewalls, encrypted firmware updates, and role-based access control. Audit trails record all configuration changes.

Seamless Integration: Native compatibility with Kongsberg’s SDP series operator stations and K-Chief 600 IAS. Supports simultaneous data exchange via OPC UA, MODBUS TCP, and proprietary KONNECT protocols.

Predictive Diagnostics: Embedded health monitoring tracks component degradation (PSUs, processors, I/O boards) and generates maintenance alerts 72+ hours before potential failure.

Application Field

The KONGSBERG RCU502 is indispensable for high-risk offshore operations requiring DP Class 3 certification. In deepwater drilling, it maintains semi-submersible rig position during well intervention while compensating for tidal currents and wind forces. Offshore wind installation vessels rely on its millimeter-precision positioning to maneuver turbine components into place during heavy weather.

For pipe-lay operations, the unit dynamically adjusts stinger angles and tensioner forces while synchronizing with automatic welding stations. Dive support vessels utilize its acoustic positioning interface to track ROVs during subsea infrastructure inspection. The KONGSBERG RCU502 also enables precision operations in fisheries research vessels during trawling, where position stability ensures accurate biomass sampling. In harsh environments like Arctic supply missions, it maintains station-keeping alongside icebreakers during cargo transfer.

Related Products

SDP11 : Operator console for DP systems

K-Pos DP-21 : Satellite compass and position reference

K-Chief 600 : Integrated automation system

MRU 5 : Motion Reference Unit

AUTR : Autonomous thruster control module

K-Bridge : ECDIS navigation interface

K-Thrust : Thruster control system

Simrad EK80 : Scientific echo sounder interface

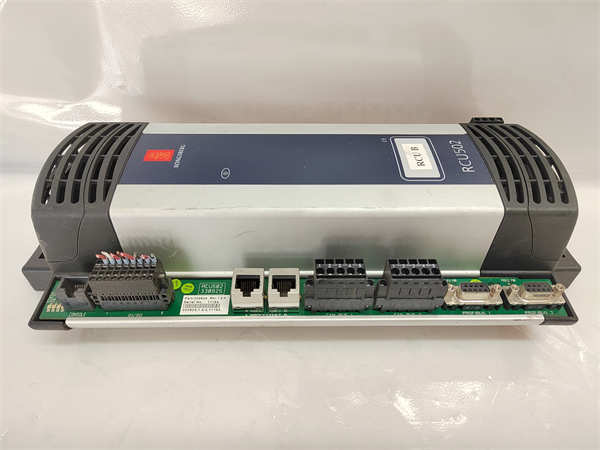

KONGSBERG RCU502

Installation and Maintenance

Pre-installation preparation: Verify shock-mounted cabinet alignment (max 0.5° deviation) and ensure independent power feeds from different switchboards. Conduct grounding resistance test (<0>KONGSBERG RCU502.

Maintenance recommendations: Perform monthly redundancy tests by simulating channel failures. Clean air filters quarterly in dusty environments. Calibrate I/O boards every 24 months using Kongsberg K-Test validation kit. Replace cooling fans at 50,000 operational hours.
