Description

The ICS TRIPLEX T9110 is a high-availability Triple Modular Redundant (TMR) safety controller engineered for critical process protection in hazardous environments. As the cornerstone of the Trusted® platform developed by ICS Triplex (now part of Rockwell Automation), this robust controller executes safety instrumented functions (SIF) with 99.9999% reliability. The T9110 features three parallel 32-bit processors that vote on outputs in real-time, eliminating single points of failure. Designed for SIL 3 (IEC 61508) and SCAN 3 (TÜV) applications, it provides deterministic response for emergency shutdown (ESD), fire & gas (F&G), and turbine control systems. Its modular architecture supports hot-swappable I/O and redundant communication networks, ensuring continuous operation during maintenance or faults. The ICS TRIPLEX T9110 represents the gold standard for fault-tolerant control in oil & gas, power generation, and chemical processing where zero downtime is non-negotiable.

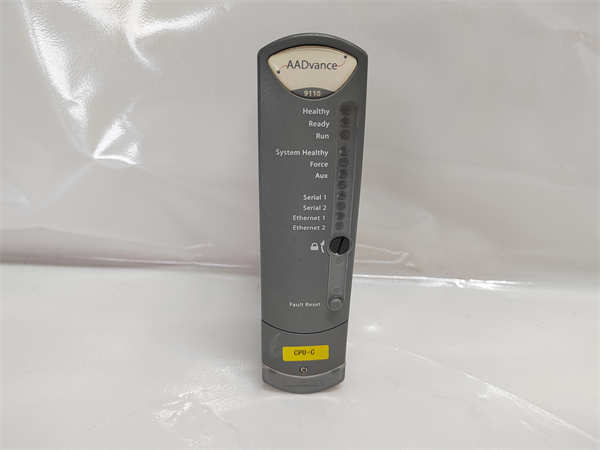

ICS TRIPLEX 9110

Technical Specifications

Main Features and Advantages

Fault Tolerance: The T9110‘s TMR architecture physically isolates three independent processing channels. Each channel executes identical logic, with hardware voters comparing results. If one channel diverges, the system automatically masks the fault without interrupting control – a critical advantage for continuous processes.

Advanced Diagnostics: Continuous self-testing monitors processor health, memory integrity, and I/O signal alignment. Mismatches trigger detailed fault reports via the Trusted Toolbox™ software, pinpointing failed components before they impact safety functions. The controller’s “live insertion” capability allows technicians to replace faulty modules without shutdowns.

Seamless Integration: Dual Ethernet ports support peer-to-peer communication with other T9110 controllers or integration with DCS/SCADA via Modbus TCP. Built-in protocol converters bridge legacy fieldbus devices. Conformal-coated variants (suffix -CC) withstand corrosive environments like offshore platforms.

Application Field

The ICS TRIPLEX T9110 dominates extreme-risk sectors requiring fault-tolerant control. In offshore oil rigs, it manages subsea ESD valves and blowout preventers (BOPs), where equipment failure could cause catastrophic spills. Its salt-fog certification ensures reliability in marine environments.

For liquefied natural gas (LNG) plants, the T9110 controls cryogenic safety systems, monitoring tank pressure and triggering emergency vaporizers during overfill scenarios. Power plants deploy it for turbine overspeed protection, synchronizing triple-redundant sensors to trip steam valves within milliseconds. In chemical facilities, it enforces reactor quench sequences during runaway reactions. Nuclear installations leverage its radiation-hardened variants for coolant injection control. The T9110 also secures mining operations, where combustible dust environments demand ATEX-certified hardware for conveyor fire suppression systems.

Related Products

ICS TRIPLEX T9432: 32-channel TMR analog input module for sensor integration.

ICS TRIPLEX T8461: Digital output module with fused fail-safe circuits.

ICS TRIPLEX T8850: Communication gateway for Profibus DP integration.

ICS TRIPLEX Trusted TSc: Next-generation controller with enhanced cybersecurity.

ICS TRIPLEX T8110B: Power supply module with active redundancy.

ICS TRIPLEX Trusted PMC: PCI express communication card for host integration.

Rockwell Allen-Bradley 1756-EN2T: EtherNet/IP module for ControlLogix interoperability.

ICS TRIPLEX Trusted Firmware V4.10: Runtime environment with advanced diagnostics.

ICS TRIPLEX 9110

Installation and Maintenance

Pre-installation preparation: Verify rack grounding (<1>T9110 controller and I/O modules.

Maintenance recommendations: Monitor “Channel Disagree” alarms via diagnostics software. Perform annual voter tests by injecting simulated faults. Replace controller batteries every 5 years to preserve RAM during outages. When hot-swapping modules, follow electrostatic discharge (ESD) protocols and verify green “Healthy” LEDs post-insertion. Maintain firmware revisions within vendor-supported lifecycle. For SIL compliance, document all modifications per IEC 61511 requirements.
