Description

The ICS TRIPLEX T9451 is a Triple Modular Redundant (TMR) digital input module designed for mission-critical safety applications within the Trusted® platform. This high-integrity module interfaces with discrete field sensors (e.g., emergency stops, pressure switches, flame detectors) and converts signals into fault-tolerant data for TMR controllers like the T9110. Engineered to achieve SIL 3 (IEC 61508) certification, the T9451 employs three independent input channels per point that vote on signal states, eliminating single-point failures. Its galvanic isolation (2,300 V AC) prevents ground loops and noise interference, while patented “Mid Value Select” voting ensures continuity even during channel discrepancies. The module’s hot-swappable design and front-accessible diagnostics make it indispensable for emergency shutdown (ESD) systems, fire & gas protection, and turbine controls where zero false trips and maximum availability are non-negotiable.

Technical Specifications

Main Features and Advantages

Fault-Tolerant Sensing: Each of the T9451‘s 16 inputs uses three isolated circuits. Hardware voters compare readings and mask divergent signals without process interruption. This design tolerates sensor wire shorts, channel failures, or noise-induced errors while maintaining SIL 3 integrity.

Advanced Diagnostics: Real-time monitoring detects stuck-at faults, open wires, and voting mismatches. Field-side diagnostics identify external issues like contact welding. Status LEDs and Trusted Toolbox™ software provide instant visual/software alerts, enabling predictive maintenance.

Deployment Flexibility: Supports both dry contacts (mechanical switches) and wet DC inputs (NAMUR/proximity sensors). Group isolation allows mixed voltage signals (e.g., 24V/48V) in the same module. The T9451 integrates seamlessly with legacy systems via HART pass-through.

Application Field

The ICS TRIPLEX T9451 secures high-consequence processes across energy and heavy industries. In offshore drilling platforms, it monitors blowout preventer (BOP) position switches and ESD pushbuttons – its salt-spray resistance prevents corrosion failures. Refineries deploy it for furnace flame detection, where triple-redundant voting eliminates spurious burner trips.

Power plants rely on the T9451 for turbine lube oil pressure switches and generator hydrogen leak detection. Chemical processors use it in reactor emergency cooling systems, where contact bounce immunity ensures reliable low-flow switch recognition. Mining operations leverage its ATEX-certified variants for conveyor belt rip detection in combustible dust environments. The module’s<10ms>

Related Products

ICS TRIPLEX T9110: TMR safety controller for logic processing.

ICS TRIPLEX T8461: 16-channel TMR digital output module.

ICS TRIPLEX T9432: TMR analog input module for 4-20mA sensors.

ICS TRIPLEX T8151B: Redundant power supply unit.

ICS TRIPLEX TMR Terminal Base (e.g., T9841): Hot-swappable baseplate.

ICS TRIPLEX T8850: Profibus DP gateway for third-party integration.

Rockwell 1756-IB16: ControlLogix digital input module for hybrid systems.

ICS TRIPLEX Trusted Firmware V4.10: Runtime environment with cybersecurity.

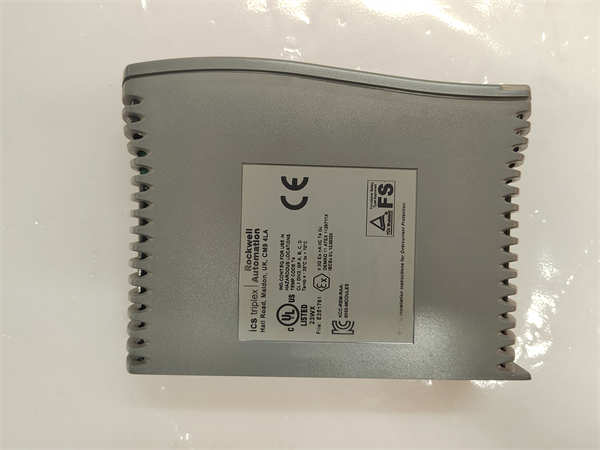

ICS TRIPLEX 9451

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Trusted TMR Series). Configure input types (dry/wet) and filter times via Trusted Toolbox™. Ensure redundant 24V DC supplies are independently fused. Use shielded twisted-pair cables grounded at one end only.

Maintenance recommendations: Monitor channel disagreement counts monthly. Exercise inputs annually using simulated field signals. Replace modules during planned shutdowns using hot-swap procedure: Release latch, extract T9451, insert replacement within 60 seconds. Clean terminal blocks with isopropyl alcohol to prevent contact corrosion. Update firmware only during non-operational windows.
