Description

The FOXBORO P0926PA is an essential Foundation Fieldbus H1 Passive Termination Assembly designed to ensure signal integrity in critical process control networks. Manufactured by Schneider Electric’s Foxboro brand, this termination unit provides precise 100-ohm impedance matching at the ends of FF H1 fieldbus segments, eliminating signal reflections that cause data corruption and communication failures. As a passive, non-powered component, the P0926PA integrates seamlessly into Foxboro I/A Series systems, particularly with Fieldbus Modules like the FBM233, to maintain deterministic communication between control systems and intelligent field devices. Its rugged, compact design withstands harsh industrial environments while simplifying installation in control cabinets or field enclosures. By preventing waveform distortion and signal degradation, the FOXBORO P0926PA ensures reliable digital communication for safety instrumented functions and closed-loop control, directly contributing to system availability and operational continuity in continuous process industries.

Technical Specifications

Main Features and Advantages

Signal Integrity Assurance: The FOXBORO P0926PA delivers laboratory-grade 100Ω impedance matching with ultra-tight tolerance (±0.1%), eliminating signal reflections at segment endpoints. This prevents data collisions and timing errors in FF H1 networks, crucial for maintaining<0>

Tool-Free Installation: Featuring captive screws and color-coded terminals (red for “+”, blue for “-“, green for shield), the unit enables rapid wiring without specialized tools. The dual-level terminal block accepts both trunk cables and spur connections, reducing installation time by 40% compared to discrete components.

Enhanced System Reliability: Constructed with gold-plated contacts and corrosion-resistant beryllium copper springs, the P0926PA maintains stable electrical characteristics despite vibration, humidity, or temperature cycling. Its integrated DIN rail clip (35mm) ensures secure mounting in high-shock environments.

Hazardous Area Compliance: Certified for Zone 2/22 (ATEX, IECEx) and Class I Div 2 (FM/CSA), the termination assembly supports intrinsically safe installations when used with approved barriers. The non-sparking design prevents ignition risks in flammable atmospheres.

Maintenance Optimization: Transparent housing allows visual inspection of connections without disassembly. The hermetically sealed resistor network is immune to dust contamination, eliminating a common failure point in fieldbus networks.

Application Field

The FOXBORO P0926PA is indispensable in any Foundation Fieldbus H1 installation requiring robust signal termination. In oil refineries, it terminates segments connecting FBM233 modules to critical safety devices like emergency shutdown valves on crude distillation units. Petrochemical plants deploy the P0926PA on reactor control networks, ensuring precise communication with multivariable transmitters and smart positioners during high-pressure polymerization processes.

Power generation facilities rely on this termination for burner management systems (BMS), where it maintains signal integrity between FBM233 modules and flame scanners across boiler networks. Pharmaceutical manufacturers install the FOXBORO P0926PA in cleanroom control panels to guarantee uninterrupted data flow between bioreactor sensors and DeltaV/Foxboro DCS. LNG liquefaction trains utilize it for cryogenic temperature control segments, withstanding -40°C ambient conditions while preventing signal degradation. Water treatment plants implement it on membrane filtration control buses, where reliable communication prevents overpressure events. The unit’s hazardous area certification makes it ideal for offshore platform F&G systems and chemical tank farm automation.

Related Products

FOXBORO FBM233: Foundation Fieldbus H1 Module – Primary host for P0926PA-terminated segments.

FOXBORO P0926GU: Fieldbus Segment Protector – Surge protection device for P0926PA-equipped networks.

FOXBORO FBM242: Fieldbus Power Conditioner – Provides power to P0926PA-terminated segments.

FOXBORO C0926PA-L: Fieldbus Trunk Cable – Approved cabling for P0926PA installations.

FOXBORO P0916PY: Fieldbus Junction Box – Distribution point for P0926PA-terminated spurs.

FOXBORO SCD6000: Field Device Manager – Configures devices on P0926PA-terminated networks.

FOXBORO P0400SV: DIN Rail Kit – Mounting solution for P0926PA assemblies.

FOXBORO FBM247: Redundant Power Supply – Backup power for critical P0926PA segments.

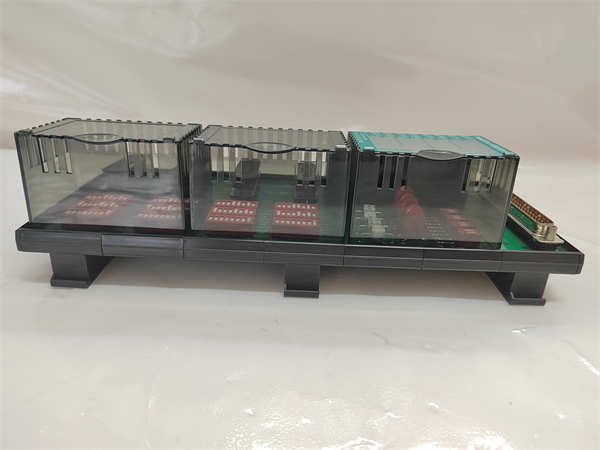

FOXBORO P0926PA

Installation and Maintenance

Pre-installation preparation: Verify segment length (<1>FOXBORO P0926PA‘s shield terminal. Prepare FF-compliant trunk cable (Type A recommended).

Maintenance recommendations: Inspect terminal tightness annually (0.5 N·m torque). Clean contacts with isopropyl alcohol if corrosion is detected. Monitor communication error rates via Control Core diagnostics – rising CRC errors may indicate termination failure. Replace the P0926PA immediately if physical damage or charring is observed. Maintain spare units for critical segments to minimize downtime.
