The VIBRO-METER SIM-275D-24 (200-582-200-011) is an advanced 2-channel vibration monitoring module from Baker Hughes’ legacy VIBRO-METER portfolio, designed for critical machinery protection in industrial facilities. Operating within the renowned S8000 and S9000 condition monitoring systems, this DIN-rail mounted unit provides continuous surveillance of rotating equipment such as turbines, compressors, and pumps. The SIM-275D-24 processes raw vibration signals from accelerometers or velocity sensors, converting them into actionable data for predictive maintenance and immediate fault detection. Its core functionality includes real-time measurement of velocity, acceleration, and envelope demodulation spectra, with configurable alarm thresholds for early warning of imbalance, misalignment, bearing defects, or resonance issues. Designed for 24VDC operation (as specified by the “-24” suffix), this module integrates seamlessly with control systems via 4-20mA outputs and relay contacts, serving as a frontline defense against catastrophic machinery failure. The VIBRO-METER SIM-275D-24 exemplifies precision engineering for operational reliability in demanding environments.

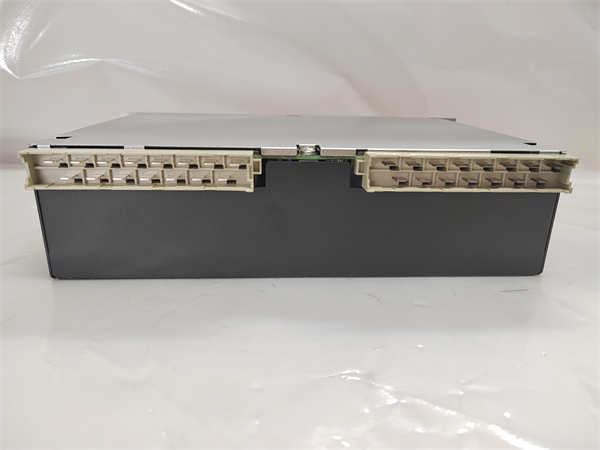

VIBRO-METER SIM-275D-24 200-582-200-011

Technical Specifications

Main Features and Advantages

Advanced Diagnostic Capabilities: The SIM-275D-24 employs DSP-based envelope demodulation (gE) to detect early-stage bearing defects and gear tooth damage, even in high-noise environments. Its patented algorithms distinguish between impact-related faults and background vibration, providing 3x earlier warning compared to conventional RMS monitoring.

Flexible Configuration: Each channel independently configures measurement parameters (velocity, acceleration, gE), bandpass filters, and alarm setpoints via DAIU software. The 200-582-200-011 variant includes dedicated tachometer inputs for order tracking and phase analysis, enabling precise imbalance identification.

Seamless Integration: With dual 4-20mA outputs and programmable relays, the VIBRO-METER SIM-275D-24 directly interfaces with DCS/PLC systems for automated shutdown logic. RS-485 Modbus RTU support allows real-time data streaming to asset management platforms like System 1.

Robust Design: Engineered for harsh environments, the module features galvanic isolation (1500V) between channels and power supply, surge protection to IEEE C37.90 standards, and corrosion-resistant terminals. Its compact DIN-rail form factor simplifies retrofitting in crowded panels.

Safety Compliance: Certified for SIL 2 safety functions, the SIM-275D-24 meets IEC 61508 requirements for machinery protection systems (MPS), providing failsafe relay operation during power loss or internal fault conditions.

Application Field

The VIBRO-METER SIM-275D-24 (200-582-200-011) is essential for protecting high-value rotating equipment across energy and industrial sectors. In power generation, it monitors gas/steam turbine bearings and generator exciters, detecting blade-passing frequencies and lubrication failures before forced outages occur. Oil & gas facilities deploy it on centrifugal compressors in LNG trains, where it prevents seal degradation in cryogenic environments.

Petrochemical plants rely on the SIM-275D-24 for pump cavitation detection in ethylene cracking units, triggering auto-start of standby units upon abnormal vibration signatures. Mining operations use it on critical conveyor drive systems to identify gearbox tooth wear, reducing unplanned downtime. Water treatment facilities install this module on high-flow injection pumps to monitor impeller imbalance caused by solids accumulation.

The 200-582-200-011 variant’s 24VDC operation makes it ideal for offshore platforms (Zone 2 certified) and battery-backed power systems. Its Modbus interface enables integration into digital twin platforms for predictive maintenance analytics on wind turbine gearboxes and paper mill dryer sections.

Related Products

VIBRO-METER 9200C: Accelerometer – IEPE vibration sensor for SIM-275D-24 input.

VIBRO-METER CMSS 784-01: Proximity Probe System – Shaft vibration measurement complement.

VIBRO-METER DAIU 101: Configuration Tool – Programs SIM-275D-24 parameters.

VIBRO-METER S8000: Rack Interface Module – Integrates SIM-275D-24 into monitoring systems.

VIBRO-METER SIM-375: 4-Channel Monitor – Expanded version of SIM-275D-24.

VIBRO-METER 200-582-100-011: 110VAC Variant – Alternative power option.

VIBRO-METER TMS-3: Tachometer Module – Provides RPM input for SIM-275D-24.

VIBRO-METER CMS-800: Health Management Software – Analyzes SIM-275D-24 data.

VIBRO-METER SIM-275D-24 200-582-200-011

Installation and Maintenance

Pre-installation preparation: Verify 24VDC power source stability (±10%) and proper grounding. Use shielded twisted-pair cables (Belden 8761 recommended) for sensor connections, with shields grounded at the SIM-275D-24 end only. Allocate 50mm clearance above module for ventilation.

Maintenance recommendations: Perform quarterly calibration verification using portable vibration calibrators. Monitor Modbus register 40125 (module health status) for early electronics degradation signs. Clean terminal blocks annually with contact cleaner to prevent oxidation. Replace sensors every 5 years or when sensitivity drifts >5%. For firmware updates, use DAIU 101 interface with Baker Hughes-supplied files.
