The ICS TRIPLEX T8311 is an enhanced Safety Network Interface Module (SNIM) designed for Schneider Electric’s Tricon CX and Tricon EX safety instrumented systems. As a critical communication gateway, this module enables secure, high-bandwidth data exchange between the triple modular redundant (TMR) safety controllers and enterprise networks while maintaining SIL 3 integrity. The T8311 builds upon its predecessor (T8310) with upgraded processing power and cybersecurity features, supporting advanced protocols including OPC UA Pub/Sub for cloud connectivity and IEEE 1588 Precision Time Protocol for time synchronization across distributed systems. Engineered for Industry 4.0 environments, it provides deterministic data delivery (<50ms>ICS TRIPLEX T8311 is essential for modern safety systems requiring seamless integration with IIoT platforms without compromising fault tolerance in hydrocarbon processing, power generation, and critical infrastructure applications.

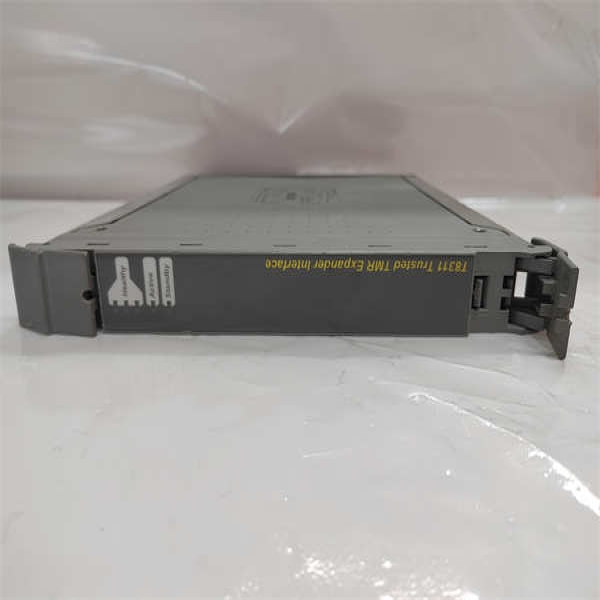

ICS TRIPLEX T8311
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | ICS TRIPLEX T8311 |
| Manufacturer | ICS Triplex (Schneider Electric) |
| Product Type | Enhanced Safety Network Interface Module |
| Safety Integrity Level | SIL 3 (IEC 61508/61511 certified) |
| Ethernet Ports | 2 x 10/100/1000BASE-T (Gigabit) with RJ45/SFP combo |
| Supported Protocols | OPC UA Pub/Sub, Modbus TCP/IP, IEC 61850, IEEE 1588 PTP |
| Cybersecurity | IEC 62443-3-3 Level 2, Hardware Firewall, MACsec encryption |
| Processing Power | Dual-core ARM Cortex-A72 @ 1.5 GHz |
| Data Throughput | 1 Gbps (full duplex) |
| Time Synchronization | ±100 ns accuracy (IEEE 1588) |
| Backplane Interface | TriBus (25 Mbps) |
| Power Consumption | 7W @ 5VDC (backplane powered) |
| Operating Temperature | -40°C to +85°C (-40°F to 185°F) |
| Shock/Vibration | 5g operational (IEC 60068-2-6) |
| Certifications | ATEX/IECEx Zone 2, UL Class I Div 2, DNV-GL |
| MTTR | <5> |
Main Features and Advantages
Next-Generation Connectivity: Dual Gigabit Ethernet ports with SFP fiber optic support enable long-distance communication (up to 80km) for distributed safety systems. The T8311‘s OPC UA Pub/Sub implementation allows direct cloud integration for predictive maintenance analytics while maintaining data integrity through UA security profiles.
Deterministic Time Synchronization: Integrated IEEE 1588 Precision Time Protocol master capability synchronizes safety events across the plant network with ±100ns accuracy, crucial for sequence of event (SOE) analysis in complex shutdown scenarios.
Hardware-Enforced Security: Military-grade secure boot with TPM 2.0 cryptographic module prevents firmware tampering. The configurable stateful firewall inspects traffic at wire speed while MACsec encryption provides Layer 2 data confidentiality for safety-critical communications.
High Availability Architecture: Dual active/active redundant configurations eliminate single points of failure. Automatic data synchronization between paired modules ensures bumpless failover during network disruptions or maintenance.
Advanced Diagnostics: Real-time monitoring of 200+ parameters including packet error rates, CPU load, and security events. Integrated web server provides REST API access for integration with asset management systems like EcoStruxure.
Application Field
The ICS TRIPLEX T8311 is deployed in digitally transformed safety systems requiring enterprise integration. In smart grid substations, it synchronizes protection relays via IEC 61850 while streaming fault records to control centers. Offshore wind farms utilize its fiber optic capability to connect turbine safety systems across long distances.
Oil sands operations leverage the T8311 for real-time SIL verification data streaming to cloud platforms, enabling predictive maintenance of safety valves and shutdown systems. Pharmaceutical batch processes employ its OPC UA capabilities for electronic batch records in FDA-regulated environments. The module’s extended temperature range supports geothermal power plants where ambient temperatures exceed 70°C.
In hydrogen production facilities, the ICS TRIPLEX T8311 provides cybersecurity segmentation between safety controllers and IT networks, protecting electrolyzer shutdown systems from cyber threats. Its DNV-GL certification makes it ideal for maritime applications like LNG carrier cargo safety systems.
Related Products
ICS TRIPLEX T8310: Predecessor SNIM module with 10/100BASE-T ports.
ICS TRIPLEX T8832: Time-Sensitive Networking (TSN) SNIM for deterministic Ethernet.
ICS TRIPLEX T8110C: Main Processor Module – Interfaces with T8311.
ICS TRIPLEX 3721N: Network Communication Module – Peer-to-peer safety networking.
ICS TRIPLEX 4000093-325: Gigabit Media Converter – Extends T8311 fiber connectivity.
EcoStruxure Triconex Advisor: Analytics platform processing T8311 diagnostics.
ICS TRIPLEX T8151B: Legacy Main Processor – Migration path via T8311 gateway.
Triconex T9800: Safety Historian – Stores T8311-streamed event data.

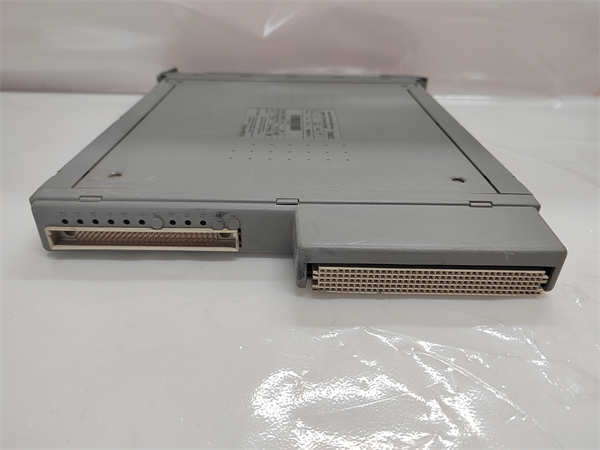

ICS TRIPLEX T8311
Installation and Maintenance
Pre-installation preparation: Verify chassis compatibility (Tricon CX/EX). Pre-load cybersecurity certificates via USB service port. Conduct network segmentation analysis per ISA/IEC 62443 zones.
Maintenance recommendations: Monitor REST API endpoint /system/health for predictive failure alerts. Rotate encryption keys quarterly using Schneider’s Key Manager. Apply security patches within 30 days of release. Use ESD-safe procedures during hot-swap – engage latch before extraction.
