Description

The ICS Triplex T8403 is a high-reliability, triple-redundant analog input module designed for Schneider Electric’s Triconex® safety instrumented systems (SIS). As part of the renowned Trident/Tricon V11 platform, this module delivers critical process variable monitoring in safety-critical applications where failure tolerance is non-negotiable. The T8403 integrates three independent input channels per point, enabling continuous comparison and voting to detect discrepancies and ensure data integrity. Engineered for SIL 3 (Safety Integrity Level) compliance per IEC 61508/61511 standards, it supports 4–20mA HART-enabled signals with galvanic isolation, preventing ground loops and electrical noise interference. Its hot-swappable design allows maintenance without system shutdown, maximizing operational availability in refineries, power plants, and chemical facilities. The ICS Triplex T8403 serves as the frontline data acquisition unit within Triconex architectures, translating real-world analog signals into deterministic safety logic for emergency shutdown (ESD), fire and gas (F&G), and turbine control systems.

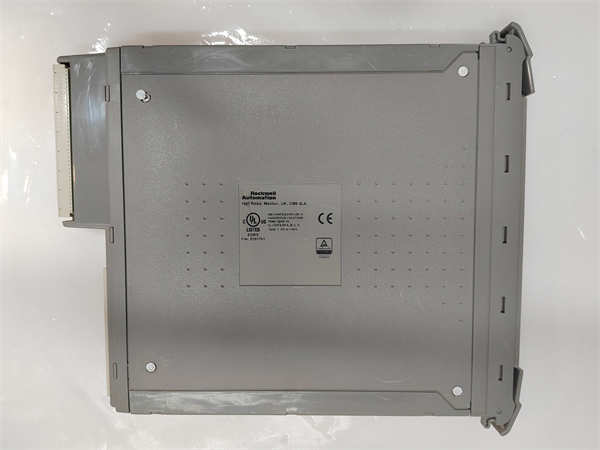

ICS TRIPLEX T8403

Technical Specifications

Main Features and Advantages

The ICS Triplex T8403 delivers uncompromising safety through its Triple Modular Redundant (TMR) architecture, where three isolated input circuits per channel continuously validate signal integrity. Discrepancies trigger automatic diagnostics and voting, ensuring fail-safe operation without spurious trips. Its native HART protocol support enables bidirectional communication with smart field devices for calibration, diagnostics, and configuration while maintaining analog signal integrity – a critical feature for predictive maintenance strategies.

Galvanic isolation (1500V AC) eliminates ground loops and protects against voltage transients, making the T8403 ideal for electrically noisy industrial environments. The module’s hot-swappability allows field replacement without interrupting control system operations, significantly reducing downtime during maintenance. Advanced fault detection includes open-wire, over-range, and under-range diagnostics reported in real-time to the controller.

Compliance with SIL 3, ATEX, and global hazardous location certifications underscores its suitability for high-risk processes. The T8403 integrates seamlessly with Triconex V11 systems via the TriStation 1131 engineering suite, enabling unified configuration and comprehensive system diagnostics.

Application Field

The ICS Triplex T8403 excels in safety-critical sectors requiring continuous analog signal monitoring with zero tolerance for undetected failures. In oil & gas, it safeguards offshore platforms and refineries by monitoring pressure transmitters and flow meters in emergency shutdown (ESD) systems. For chemical plants, the T8403 ensures precise temperature and level inputs for reactor protection and fire suppression systems. Power generation facilities deploy it in burner management (BMS) and turbine overspeed protection, where millisecond-level response to analog deviations prevents catastrophic equipment damage.

Within pharmaceutical manufacturing, the module validates critical bioreactor parameters under GAMP guidelines. Its HART capability is extensively used in LNG terminals for smart valve positioner feedback. The T8403 also supports rail signaling systems, where track sensor inputs demand fault-tolerant acquisition. Industries prioritizing functional safety – including pulp/paper, mining, and nuclear – leverage its TMR design to mitigate environmental hazards and operational risks while meeting stringent regulatory requirements.

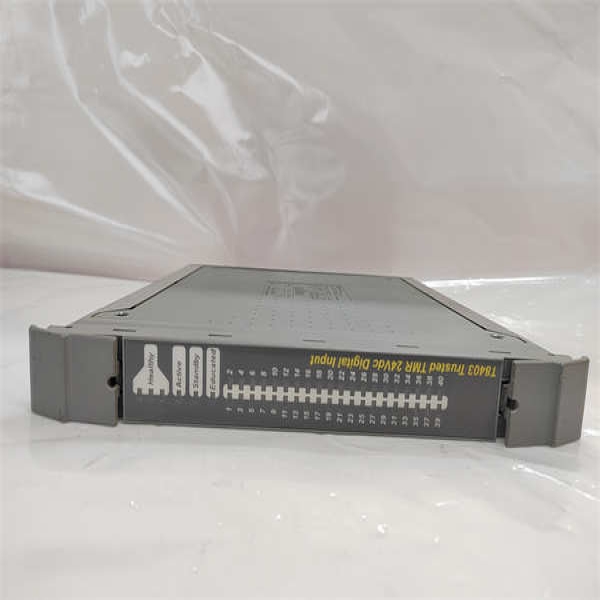

ICS TRIPLEX T8403

Related Products

T8401: 8-channel analog output module for actuating valves/VFDs in TMR systems

T8461: Digital input module with TMR design for safety-critical discrete signals

T8310: Tricon V11 chassis controller for executing safety logic

T8830: Communication module for integrating OPC, Modbus, or Ethernet/IP

T8110B: Power supply module with triple-redundant 5V/24V outputs

TMR Analog Output Card (T8431): Complementary output module for control loops

Triconex Tricon CX: Compact safety controller for mid-scale applications

TriStation 1131: Configuration software for programming Triconex systems

Installation and Maintenance

Pre-installation preparation: Verify compatibility with Triconex V11 chassis and firmware revision. Ensure electrostatic discharge (ESD) precautions are followed. Confirm termination panel wiring diagrams match the T8403‘s channel assignments. Perform a visual inspection for physical damage and validate grounding requirements per IEC/ISA standards prior to power-up.

Maintenance recommendations: Leverage the module’s online diagnostics via TriStation software to monitor channel health and HART variables. Replace the T8403 during planned shutdowns using hot-swap procedures – align the module with guides, insert firmly, and secure locking levers. Calibrate connected field devices annually; the module itself requires no recalibration. Store spares in climate-controlled environments (-40°C to +85°C) with <80>
