Description

The ICS Triplex T8461 is a triple-redundant digital input module engineered for Schneider Electric’s Triconex® V11 Safety Instrumented Systems (SIS). Designed for mission-critical applications requiring uncompromising fault tolerance, the T8461 monitors discrete signals (e.g., emergency stops, valve positions, or pressure switches) with SIL 3 (IEC 61508/61511) compliance. Each of its 32 input channels incorporates three independent circuits that continuously perform hardware-based voting – detecting discrepancies within milliseconds to prevent undetected failures. The module features galvanic isolation (1500V AC) between channels and field wiring, eliminating ground loop interference in electrically noisy industrial environments. As a core component of Tricon V11 platforms, the ICS Triplex T8461 enables predictive maintenance through embedded diagnostics reporting contact chatter, wire breaks, and channel faults. Its hot-swappable design allows replacement during system operation, maximizing uptime in continuous processes like oil refining, power generation, and chemical manufacturing where unscheduled shutdowns incur significant costs.

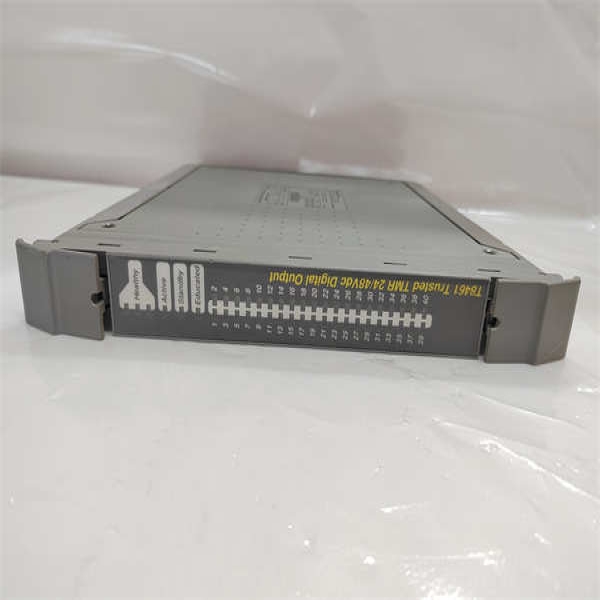

ICS TRIPLEX T8461

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: The T8461‘s Triple Modular Redundant (TMR) design processes each digital signal through three independent input circuits. A hardware-based voter compares results in real-time, masking single faults and triggering diagnostics for discrepancies – ensuring >99.99% diagnostic coverage.

Advanced Diagnostics & Predictive Maintenance: Continuously monitors contact health, detecting early-stage degradation like contact chatter or wire fatigue. Field wiring faults (open/short circuits) are reported to the control system via TriStation software, enabling proactive maintenance.

High-Density Isolation: Quad-based isolation groups (four channels per isolation barrier) optimize space while preventing cross-channel interference. The T8461 supports mixed voltage fields (e.g., 24V DC and 48V DC signals) within the same module.

Zero Downtime Maintenance: Hot-swap capability allows module replacement without system shutdown. The front-accessible status LEDs provide instant visual health indication (OK/Fault).

Global Compliance: Certified for hazardous locations (ATEX Zone 2, Class I Div 2) and extreme environments (-40°C operation), the T8461 meets global safety and electromagnetic compatibility (EMC) standards.

Application Field

The ICS Triplex T8461 is deployed where digital signal reliability directly impacts personnel safety, environmental protection, and asset integrity. In oil & gas, it monitors emergency shutdown (ESD) initiators like flame detectors and gas sensors on offshore platforms. Power plants utilize the T8461 for turbine overspeed switches and burner management system (BMS) permissives. Petrochemical facilities rely on its TMR design for critical pump trip signals and fire/gas detection inputs.

Railway signaling systems use the module for track occupancy detection and interlocking logic. Nuclear plants leverage its SIL 3 certification for reactor protection system (RPS) inputs. In pharmaceutical manufacturing, the T8461 validates equipment interlock states under GMP compliance. Mining operations deploy it for conveyor belt emergency stops and methane monitoring. The module’s immunity to electromagnetic interference makes it ideal for substations and heavy machinery environments.

Related Products

T8462: 32-channel digital output module with TMR architecture

T8403: Analog input module for 4-20mA/HART signal acquisition

T8110C: Triple-redundant power supply for Tricon V11 chassis

T8310: Main processor module for safety logic execution

T8832: Advanced communication module (Ethernet TCP/IP)

Triconex A3007: Termination panel for T8461 field wiring

Tricon CX Compact: Space-optimized safety controller

TriStation 1131 v4.5: Engineering software for configuration

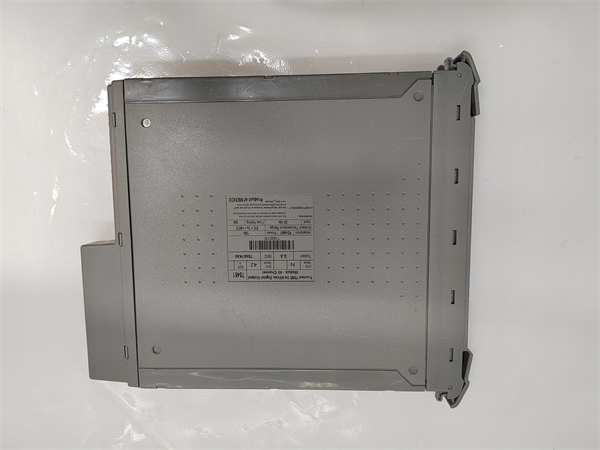

ICS TRIPLEX T8461

Installation and Maintenance

Pre-installation preparation: Verify chassis compatibility (Tricon V11 only). Review wiring diagrams for isolated quad groupings. Ensure proper grounding per ISA-TR12.2. Apply electrostatic discharge (ESD) protection during handling. Confirm firmware compatibility using TriStation software.

Maintenance recommendations: Monitor channel diagnostics via TriStation’s Health Summary screen. Replace the T8461 using hot-swap procedures: release locking levers, extract module vertically, insert replacement until connectors engage. Clean backplane contacts annually with approved electronic cleaner. Validate input response times during functional safety testing (every 1-3 years).
