Description

The ICS Triplex T9402 is a high-availability communication gateway module designed for Schneider Electric’s Triconex® Trident/Tricon V11 Safety Instrumented Systems (SIS). Serving as a critical interface between proprietary TriBus networks and open industrial protocols, the T9402 enables seamless data exchange with third-party DCS, PLCs, and enterprise systems while maintaining safety integrity. This module supports dual-redundant Ethernet ports for fault-tolerant connectivity, allowing real-time transmission of process variables, alarms, and diagnostics to supervisory systems without compromising the SIS security perimeter. Engineered for SIL 2 applications per IEC 61508, the ICS Triplex T9402 features configurable protocol stacks including Modbus TCP/IP and OPC UA, facilitating integration with historians, HMIs, and asset management platforms. Its ruggedized design withstands harsh industrial environments (-40°C to +70°C) and provides galvanic isolation (1500V AC) to prevent electrical noise interference. The T9402 is essential for modernizing legacy safety systems, enabling predictive maintenance analytics, and bridging safety-critical data to cloud-based monitoring solutions.

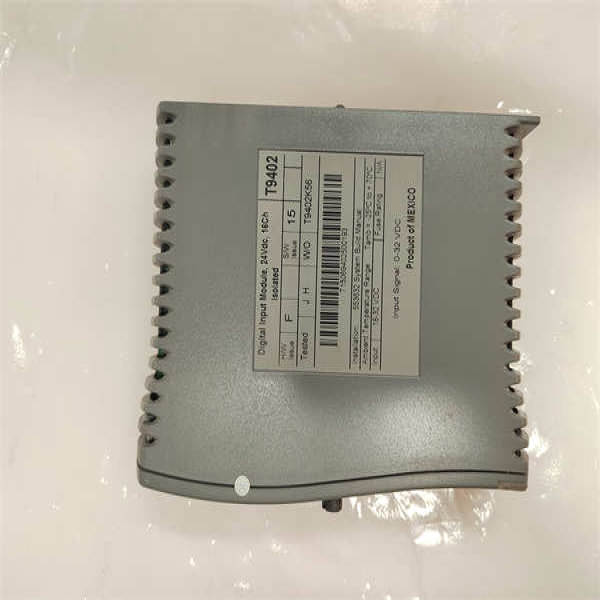

ICS TRIPLEX T9402

Technical Specifications

Main Features and Advantages

Dual-Redundant Data Pathways: The T9402 employs parallel Ethernet ports with automatic failover, ensuring uninterrupted communication during network disruptions. Data integrity is preserved through cyclic redundancy checks (CRC-32) and sequence number validation.

Cybersecurity Hardened: Implements TLS 1.2 encryption for OPC UA communications and supports certificate-based authentication. Configurable firewalling restricts unauthorized access to the SIS network, meeting IEC 62443 standards.

Deterministic Protocol Handling: Dedicated processors manage Modbus TCP and OPC UA stacks independently, preventing latency spikes. The T9402 achieves <10ms>

Seamless Triconex Integration: Reads/writes directly to Tricon V11 memory via TriStation 1131 software. Supports automatic tag generation from safety logic variables, reducing engineering effort.

Diagnostics and Health Monitoring: Continuously verifies link status, bandwidth utilization, and protocol errors. Events are logged with microsecond timestamps for forensic analysis during safety incidents.

Application Field

The ICS Triplex T9402 is indispensable in hybrid control architectures requiring safety-process network integration. In offshore platforms, it bridges Tricon ESD systems to DCS for real-time pressure/temperature visualization. Power plants utilize the T9402 to feed turbine protection data to enterprise historians for performance analytics. Petrochemical facilities leverage its OPC UA capabilities to connect fire/gas systems to centralized emergency management platforms.

For pipeline SCADA applications, the module enables Modbus TCP communication between pump station safety controllers and main control rooms. Pharmaceutical manufacturers rely on the T9402 to export batch execution records to MES systems under FDA 21 CFR Part 11 compliance. In liquefied natural gas (LNG) terminals, it facilitates cybersecurity-hardened data sharing between safety valves and process automation networks. The module also supports smart grid substations by integrating protection relays with energy management systems (EMS).

Related Products

T9432: Advanced communication module with PROFINET and EtherNet/IP support

T8830: Legacy serial gateway (RS-485/Modbus RTU)

Triconex A4300: Ethernet switch for ruggedized network expansion

T8110D: Power supply module for communication chassis

Tricon CX Controller: Compact safety system with embedded comms

TriStation 1131 v4.7: Engineering suite for T9402 configuration

Triconex TMC7: Remote I/O communication head

T9452: Fiber-optic gateway for long-distance connectivity

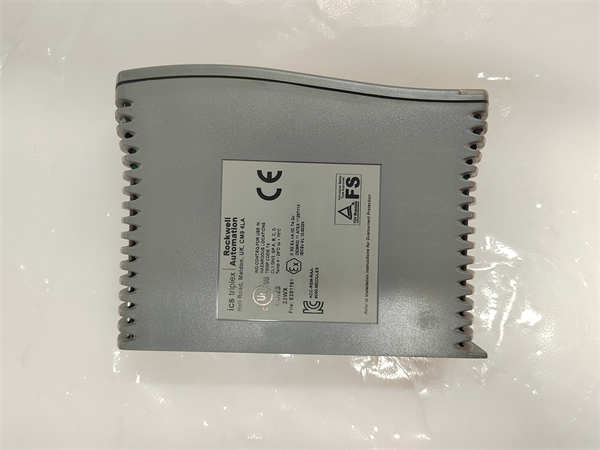

ICS TRIPLEX T9402

Installation and Maintenance

Pre-installation preparation: Verify chassis slot compatibility (requires V11 communication bay). Pre-load configuration via TriStation software before physical installation. Ensure network infrastructure supports VLAN segmentation per safety standards (ISA-99). Document IP addressing scheme and firewall rules.

Maintenance recommendations: Monitor communication load (≤70% bandwidth) using TriStation diagnostics. Update firmware during planned shutdowns using Schneider’s secure bootloader. Replace the T9402 by deactivating via software first, then extract vertically to avoid backplane damage. Perform annual cybersecurity audits including certificate rotation and access log reviews.
