Description

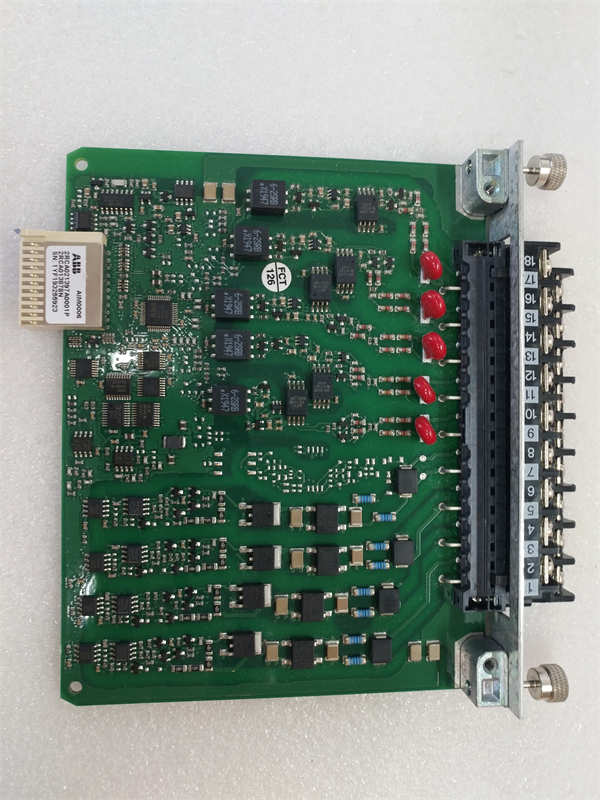

The ABB AIM0006 2RCA021397A0001P is a high-precision analog input module designed for ABB’s Advant Controller 210 (AC 210) distributed control system, delivering exceptional signal acquisition accuracy in critical industrial processes. As part of ABB’s legacy industrial automation portfolio, this module specializes in low-voltage measurements with 16-bit resolution, supporting thermocouples (Types J/K/T/E/R/S/B) and RTDs (Pt100/Pt1000) across eight isolated channels. The AIM0006 2RCA021397A0001P features patented cold-junction compensation technology with ±0.1°C stability and galvanic isolation (1.5kV AC channel-to-backplane) to eliminate ground loops in electrically noisy environments. Its drift-compensated circuitry maintains ±0.02% FS accuracy over a -20°C to +70°C operating range, making it indispensable for temperature-critical applications in refineries, power plants, and chemical processing. The module integrates seamlessly with ABB’s Advant OCS control architecture through MB300 bus communication, enabling real-time data transmission to operator stations while supporting HART pass-through for smart instrument diagnostics.

ABB AIM0006 2RCA021397A0001P

Technical Specifications

Main Features and Advantages

Metrology-Grade Measurement: Patented reference junction technology uses temperature-stable ceramics and dual-sensor compensation, achieving drift-free performance in fluctuating ambient conditions.

Intelligent Signal Conditioning: Automatic sensor break detection and open-circuit alerts with<100ms>

Legacy System Integration: Direct compatibility with AC 210 controllers and ABB’s S+ Engineering tools. Module replacement without recalibration via stored configuration.

HART Diagnostics Capability: When paired with ABB HIM013 interface, enables device parameterization and health monitoring of smart transmitters.

Robust Industrial Design: Conformal-coated PCB withstands 95% non-condensing humidity. DIN-rail mounting with vibration resistance (5g @ 10-150Hz).

Application Field

The ABB AIM0006 2RCA021397A0001P excels in precision temperature monitoring:

Power Generation: Furnace tube thermocouples in boilers (Type S) and bearing RTDs in steam turbines

Chemical Processing: Reactor vessel temperature profiling with redundant Pt1000 measurements

Pharmaceuticals: Freeze-dryer shelf monitoring under GMP compliance

Oil & Gas: Wellhead choke valve RTDs in ATEX Zone 2 locations

Metals Industry: Continuous casting mold thermocouples (Type K) with EMI immunity

Pulp & Paper: Roller bearing temperature monitoring in high-vibration environments

Related Products

ABB HIM013: HART interface module for AIM0006 diagnostics

ABB KF1001: Fieldbus coupler for MB300 network expansion

ABB SPA0001: Power supply module for AC 210 systems

ABB AIM0003: Analog input module for voltage/current signals

ABB COM0001: Communication module for OPC connectivity

Advant Controller 210: Main control unit for system integration

ABB CI871K01: Modern PROFIBUS interface upgrade path

Installation and Maintenance

Pre-installation preparation: Verify MB300 bus termination and grounding per ABB FT-002 guidelines. Pre-configure channel types/ranges via S+ software. Ensure thermocouple wiring uses twisted/shielded pairs with shields grounded at one end.

Maintenance recommendations: Perform annual cold-junction verification using reference thermometer. Clean terminal contacts with isopropyl alcohol during shutdowns. Replace after >100,000 thermal cycles or if drift exceeds ±0.1% FS. Always discharge static before handling the AIM0006 2RCA021397A0001P.
