The BENTLY 3500/15 127610-01 is a redundant rack power supply module for Bently Nevada’s 3500 Machinery Protection System, engineered to deliver ultra-reliable 24V DC power for critical monitoring hardware in high-risk industrial environments. Designed for continuous operation in safety instrumented systems (SIS), this dual-input module provides N+1 redundancy with automatic load sharing and failover, ensuring uninterrupted power to vibration monitors, PLCs, and safety relays. The BENTLY 3500/15 accepts 90–132V AC or 180–264V AC inputs (auto-sensing) with integrated active power factor correction (PFC >0.95), minimizing harmonic distortion per IEEE 519. Its convection-cooled design operates at -40°C to +70°C ambient temperatures with 6kV surge protection, making it ideal for offshore platforms, power plants, and compressor stations where power stability dictates operational safety.
Integrated diagnostics monitor input voltage, output current, and module temperature, relaying alarms to the 3500 framework via backplane communication. The BENTLY 3500/15 127610-01 features hot-swappable capability and complies with API 670 standards for machinery protection systems, providing galvanic isolation (>1500V AC) between input/output and chassis to prevent ground loops in electrically noisy environments.

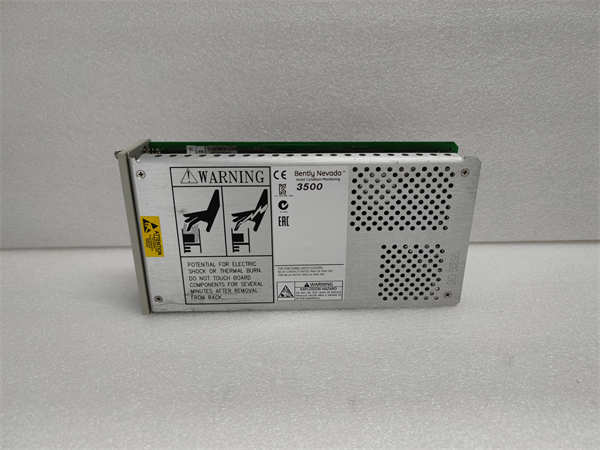

BENTLY 3500/15 127610-01
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 3500/15 127610-01 |
| Manufacturer | BENTLY NEVADA (Baker Hughes) |
| Product Type | Redundant Rack Power Supply |
| Input Voltage | 90–132V AC / 180–264V AC (auto-ranging) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24V DC (±0.5%) |
| Output Current | 15A (total redundant capacity) |
| Redundancy | N+1 parallel operation |
| Efficiency | 88% (typical at 230V AC) |
| Power Factor | >0.95 |
| Overvoltage Protection | 28V DC clamp |
| Isolation | 1500V AC (input-output/chassis) |
| Operating Temperature | -40°C to +70°C (derating >50°C) |
| Cooling | Convection (no fans) |
| Communication | Backplane status reporting |
| Certifications | API 670, UL 61010-1, ATEX/IECEx Zone 2 |
| Dimensions | 60 x 210 x 160 mm |
| MTBF | >350,000 hours (IEC 61709) |
Main Features and Advantages
Fault-tolerant architecture:
Dual independent power converters with current-sharing technology prevent single-point failures. Automatic switchover (<10>
Harsh-environment resilience:
-40°C cold-start capability ensures Arctic operation. 6kV surge immunity (ANSI C62.41) protects against lightning strikes. Conformal coating option resists salt spray and H₂S corrosion.
Advanced diagnostics:
Real-time monitoring of voltage/current via 3500 Rack Interface Module (RIM). Predictive failure alerts for capacitor aging or thermal stress. “Supply OK” relay contacts for external SCADA integration.
Application Field
The BENTLY 3500/15 127610-01 secures power for mission-critical monitoring:
Power Generation: Gas turbine protection systems during grid transients
Oil & Gas: Compressor vibration monitoring on offshore platforms
Petrochemical: Pump seal failure detection in SIL 2 safety loops
Hydroelectric: Governor control systems with battery backup integration
Marine: Main engine monitoring on LNG carriers
Related Products
BENTLY 3500/15 127610-02: 240V AC input variant
BENTLY 3500/92M: Ethernet gateway for 3500/15 diagnostics
BENTLY 3500/22M: Transient Data Interface for waveform capture
BENTLY 128229-01: Battery backup module (24V/7Ah)
BENTLY 3500/25: Keyphasor® module for speed/timing
BENTLY TK-3R: Calibration test kit

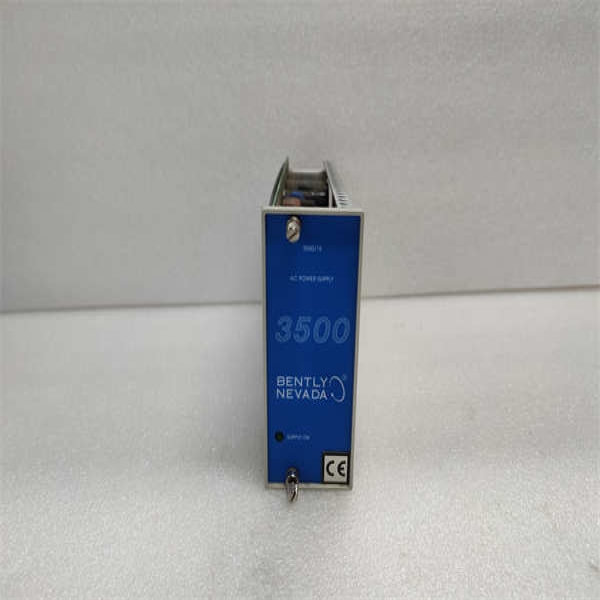

BENTLY 3500/15 127610-01
Installation and Maintenance
Pre-installation preparation: Verify AC input matches local supply (label “127610-01” = 120V AC nominal). Ground chassis via 6 AWG copper wire (<0>
Maintenance recommendations: Measure output ripple (<100>
