Description

The Vibro-meter VM600 CPUM 200-595-031-111 is the mission-critical central processing unit for the VM600 Machinery Protection System, engineered to execute real-time safety logic and condition monitoring algorithms for high-value rotating assets. This industrial-grade processor module orchestrates data from up to 16 monitoring modules (vibration, temperature, speed) while performing millisecond-level trip decisions for turbines, compressors, and critical pumps. Featuring dual-core ARM Cortex-A9 processors with hardware-based redundancy, the 200-595-031-111 ensures <10>

The Vibro-meter VM600 CPUM integrates advanced predictive maintenance capabilities through embedded FFT processors that perform real-time spectral analysis on 32 channels simultaneously. Its non-volatile memory stores 90+ days of waveform history for forensic analysis after trip events, while dual Gigabit Ethernet ports stream machinery health data to DCS/PLC systems via OPC UA or Modbus TCP. The 200-595-031-111 variant supports cryptographic module authentication and secure boot firmware, meeting NERC CIP and IEC 62443 cybersecurity standards for critical infrastructure. By consolidating protection, monitoring, and diagnostics in a single ruggedized module, this CPUM reduces cabinet footprint by 40% compared to legacy systems while providing unified asset visibility across plant operations.

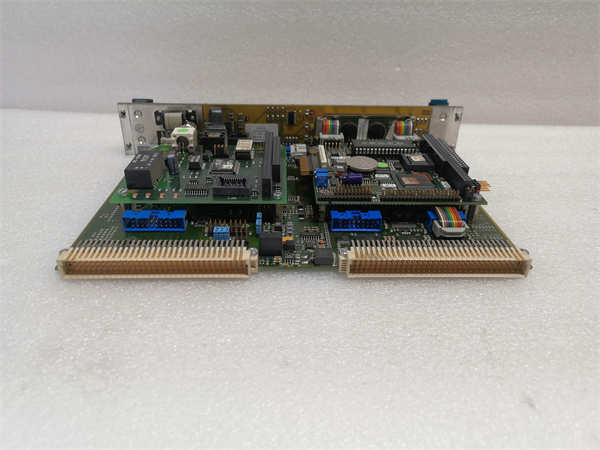

Vibro-meter 200-595-031-111 VM600 CPUM

Technical Specifications

Main Features and Advantages

Deterministic safety processing: The VM600 CPUM 200-595-031-111 executes certified protection logic (IEC 61131-3) with watchdog-monitored cycle times down to 1 ms. Hardware-based redundancy switches between cores within a single scan cycle during faults, maintaining turbine overspeed protection without spurious trips. Built-in “Trip Histogram” logging captures 200 pre-trigger waveforms per channel for root-cause analysis.

Cybersecurity and diagnostics: Secure element technology authenticates firmware updates and prevents unauthorized configuration changes. Runtime integrity checks monitor memory ECC errors and processor load, triggering alerts at 70% utilization. The module’s “Health & Usage Monitoring” feature predicts end-of-life for electrolytic capacitors based on operating temperature history, enabling proactive maintenance.

Application Field

The 200-595-031-111 CPUM safeguards critical infrastructure across energy and industrial sectors. In gas turbine power plants, it processes accelerometer data from combustion monitors, executing flame-out protection within 8 ms to prevent compressor surge. Offshore platforms deploy this module for compressor train protection, where its DNV-GL certification ensures reliability in salt spray environments. For LNG liquefaction trains, the VM600 CPUM correlates cryogenic pump vibration with temperature profiles to detect cavitation-induced damage.

Marine propulsion systems leverage its -40°C cold-start capability for Arctic operations, synchronizing shaft vibration data with GPS timestamps. In steel manufacturing, the module’s 25.6 kS/s sampling captures roll stand impacts during slab passes, triggering automatic deceleration to prevent bearing damage. Pharmaceutical plants utilize its FDA 21 CFR Part 11-compliant audit trails for regulatory reporting on critical centrifuges.

Related Products

VM600 IOC4T 200-560-000-018: Analog input module for sensor integration
VM600 MPC4 200-510-071-113: Multi-protocol gateway for DCS communication
VM600 CMS4 200-520-000-001: Vibration monitoring module
VM600 PSU 200-582-500-021: Redundant power supply for CPUM
200-595-100-002: Memory expansion module for 200-595-031-111
VM600 RIO 200-570-000-015: Remote I/O interface
Vibro-meter TK3S: Proximity probe system

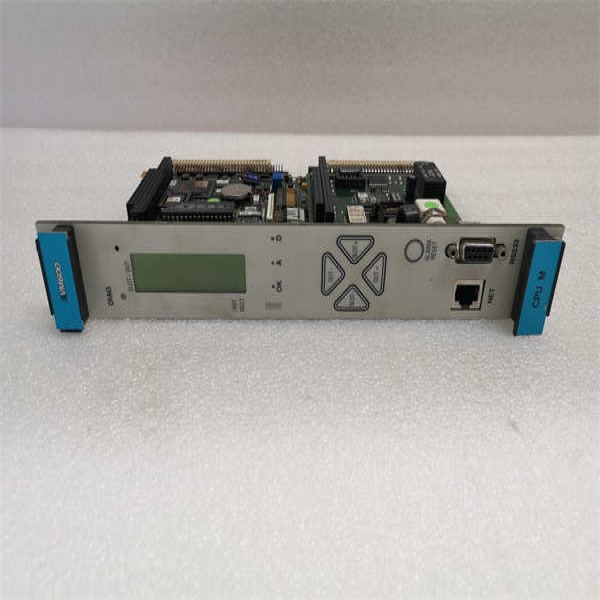

Vibro-meter 200-595-031-111 VM600 CPUM

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility and firmware version before installing the VM600 CPUM 200-595-031-111. Ensure redundant power supplies are independently fused and grounded per IEC 60204-1. Pre-load configuration via USB using Vibro-meter System Manager to minimize commissioning time. Maintain 25 mm clearance above module for heat dissipation.

Maintenance recommendations: Monthly verify processor load and memory usage via System Manager. Annually perform controlled shutdown to clean backplane connectors with non-residue contact cleaner. Replace after 10 years service or if ECC error rate exceeds 5/month. In redundant configurations, swap primary/secondary roles annually to equalize wear.
