Description

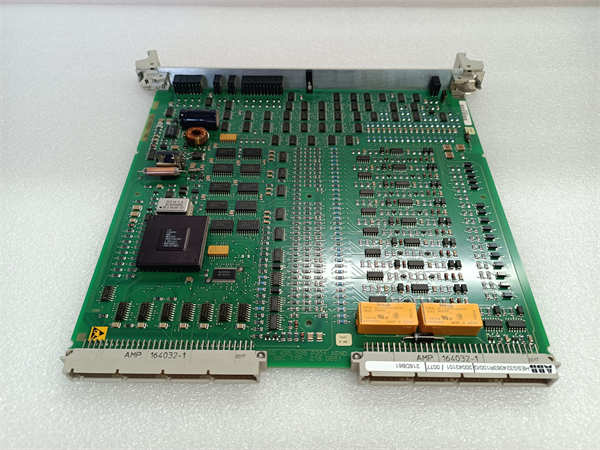

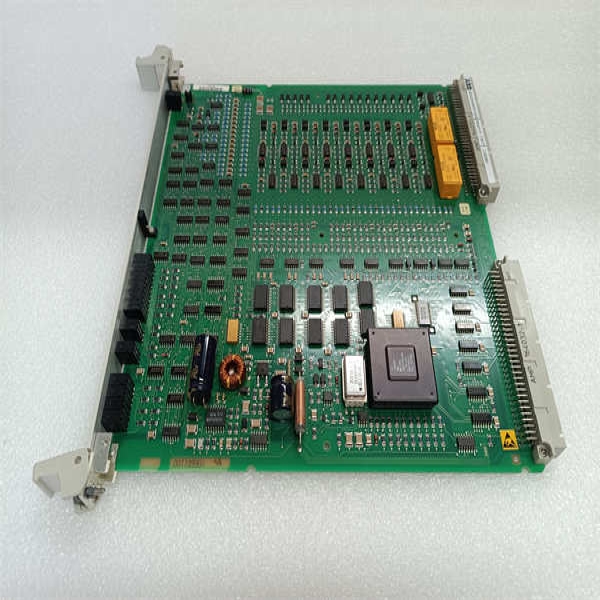

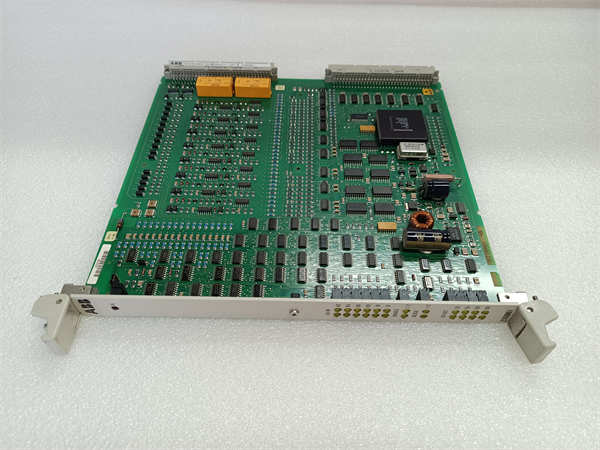

The ABB 216DB61 is a rugged 16-channel digital output module for ABB’s Advant Controller 400 (AC400) distributed control system (DCS), engineered to execute control commands in demanding industrial environments. Designed as a counterpart to the 216AB61 input module, this unit translates logic-level signals from AC400 processors into high-power relay outputs (24V DC) to actuate solenoid valves, motor starters, alarms, and indicator lights. With robust electromechanical relays rated for 2A resistive loads per channel, the 216DB61 ensures reliable switching even under inductive surge conditions common in motor control or solenoid circuits. Its galvanic isolation (1,500V AC channel-to-backplane) prevents electrical noise propagation, while the hot-swappable design enables maintenance without disrupting process operations.

Integrated with ABB’s Master Piece 200/300 software, the module supports real-time diagnostics, reporting contact weld detection, load faults, and fuse failures to the control system. The ABB 216DB61 complies with SIL 2 functional safety standards when deployed redundantly, making it indispensable for safety instrumented functions like emergency shutdowns or fire suppression systems. Encased in a compact DIN-rail-mountable housing, it optimizes cabinet space while operating reliably in temperatures from -25°C to +70°C.

ABB 216DB61

Technical Specifications

Main Features and Advantages

High-load switching capability: The ABB 216DB61’s 2A/24V DC relays handle inductive loads (e.g., solenoid coils, contactors) without external interposing relays. Integrated snubber circuits suppress voltage spikes from motor windings or transformers.
Advanced diagnostics: Real-time monitoring detects contact welding, open loads, and short circuits. Per-channel red/green LEDs provide visual status, while AF100 bus integration triggers controller alarms for predictive maintenance.
Safety and redundancy: SIL 2 certification enables deployment in safety loops. Supports redundant configurations with automatic switchover for fault-tolerant systems.
Operational resilience: Hot-swap capability allows module replacement during runtime. Conformal-coated PCB resists humidity, dust, and corrosive atmospheres. Field-configurable fuse protection per channel minimizes failure propagation.

Application Field

The ABB 216DB61 drives critical control elements across heavy industries. In power generation, it commands turbine lube oil pumps, cooling tower valves, and generator exciter fields. For water treatment plants, it controls chlorine dosing pumps, filter backwash valves, and sludge conveyor motors. Manufacturing lines leverage its rapid switching for robotic tool changers, conveyor brakes, and hydraulic press clutches.

In oil & gas, the module executes ESD commands for wellhead shutdown valves and fire dampers, meeting SIL 2 safety requirements. Building management systems use it for HVAC fan coil control, emergency lighting, and smoke evacuation sequences. Its wide temperature range (-25°C to +70°C) ensures reliability in Arctic drilling sites or steel mill furnace controls.

Related Products

ABB 216AB61: 16-channel digital input module (complements 216DB61 for I/O pairing)

ABB 216TB61: 24V DC power supply for AC400 racks

ABB 216EA61: 8-channel analog input module (4–20mA/RTD)

ABB 216DO61: Transistor output module (alternative to relay-based 216DB61)

ABB CI867: PROFIBUS interface module (extends AC400 connectivity)

ABB S800 DO810: Successor digital output module (compatible with modern S800 I/O)

ABB COMZ: AF100 communication module (redundant bus support)

ABB 216DB61

Installation and Maintenance

Pre-installation preparation: Verify slot compatibility in AC400 racks (200/300-series). Ensure load currents per channel ≤2A DC. Install 24V DC suppression diodes for inductive loads. Label wiring per channel assignment using ABB’s tagging conventions. Maintain ambient temperature within -25°C to +70°C.

Maintenance recommendations: Test relay contacts annually using a multimeter to measure contact resistance (<0.1Ω). Clean terminals with isopropyl alcohol to prevent corrosion. Monitor LED indicators for fault states (solid red = channel fault). Replace fuses only with ABB-specified 2A/250V types. Perform firmware updates during planned outages via Master Piece software.
