The ABB 1TGE120010R… Rev.A designates a hardware revision of ABB’s RET650 transformer protection relay, a cornerstone of the Relion® 650 series for critical power infrastructure. This advanced IEC 61850-compliant device provides comprehensive protection for power transformers, reactors, and shunt compensators up to 400 kV. The Rev.A variant incorporates enhanced DSP processing and reinforced terminal blocks for extreme substation environments. Engineered with ABB’s patented Differential Protection with Adaptive Restraint (DPAR), the RET650 detects internal faults within one cycle (<16>

The ABB 1TGE120010R… Rev.A features dual-redundant Ethernet ports with IEEE 1588v2 precision time protocol (PTP) for submicrosecond synchronization across IEC 61850-9-2 LE process bus networks. Designed for SIL 2 safety applications, this revision includes hardware-based backup protection (87T, 50/51, 64REF) and supports line differential communication via FOX615 interfaces. The robust aluminum housing (IP54 front/IP20 rear) withstands -40°C to +85°C operating temperatures, making it ideal for Arctic installations or desert substations.

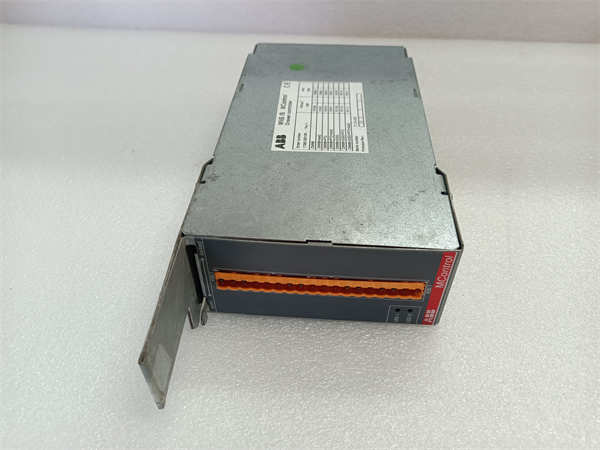

ABB 1TGE120010R… Rev.A

Technical Specifications

Main Features and Advantages

Adaptive protection intelligence: DPAR algorithm dynamically adjusts restraint characteristics during CT saturation, preventing false trips while maintaining<20>Cyber-resilient architecture: Hardware-based security module enforces IEC 62351 encryption, role-based access control, and signed firmware updates. GOOSE message authentication prevents spoofing in digital substations.
High-resolution monitoring: Continuous DGA (Dissolved Gas Analysis) trending via external sensors, on-demand frequency response analysis (FRA), and 32-bit metering accuracy (kW, kVAr, THD).
Seamless system integration: Native process bus support eliminates wiring for up to 12 merging units. PCM600 software enables drag-and-drop logic (CFC) for custom automation sequences.
Extreme environment hardening: Rev.A enhancements include gold-plated terminals for corrosion resistance and seismic-certified mounting (IEC 60255-21-1 Class 2).<!--20-->

Application Field

The ABB RET650 (1TGE120010R… Rev.A) secures critical assets in:

Transmission Substations: Protects 400/220 kV autotransformers with multi-zone differential logic and breaker failure backup.

Renewable Integration: Manages phase-shifting transformers in wind/solar farms, detecting reverse power flow and harmonic instability.

Industrial Plants: Guards furnace transformers against through-fault thermal damage with IEEE C57.12-95 thermal modeling.

HVDC Converter Stations: Provides harmonic-restrained protection for converter transformers under non-sinusoidal conditions.

Rail Electrification: Secures 25 kV traction transformers with special algorithms for single-phase loads.

ABB 1TGE120010R… Rev.A

Related Products

ABB REC650: Feeder protection relay (complements RET650 in substation bays)

ABB REF615: Compact transformer relay (for<50>

ABB REU615: Voltage regulator controller

ABB FOX615: Communication interface (extends RET650 line differential reach)

ABB CMA42: Analog I/O module (expands RET650 signal capacity)

ABB PCM600: Unified configuration software

ABB CMC 356: Advanced relay test set

Installation and Maintenance

Pre-installation preparation: Verify CT/VT ratios and burden compatibility using ABB’s CTEx tool. Apply torque-limited screwdriver (0.8 N·m) for terminal connections. Segregate Ethernet (>10 cm from power cables) using ABB’s shielded fiber-optic patch cables. Configure IEC 61850 ICD file in PCM600 before energization.

Maintenance recommendations: Perform annual restraint characteristic tests using 3-phase injection sets. Monitor “Health” LED status (red indicates DSP fault). Download disturbance records after events via FTP. Replace backup capacitor (5-year interval) per ABB Technical Note 1TGE120020R0101. Validate cybersecurity settings quarterly using ABB’s Cyber Security Deployment Manager.
