Description

The GE WESDAC D20ME is a high-reliability master controller module from GE’s legacy WESDAC (Westinghouse Electric System Data Acquisition and Control) series, designed for mission-critical power system automation and grid management. Serving as the central processing unit in substation control architectures, this rugged module acquires real-time data from remote terminal units (RTUs), executes control algorithms, and coordinates grid protection functions across transmission and distribution networks. The WESDAC D20ME integrates a 32-bit processor with dual-redundant Ethernet and serial interfaces to synchronize operations between IEDs (Intelligent Electronic Devices), SCADA systems, and legacy Westinghouse equipment using protocols like DNP3.0 and Modbus. Its deterministic processing (1ms scan cycles) ensures rapid execution of load shedding, capacitor bank switching, and fault isolation sequences during grid disturbances. Built to IEEE 1613 standards for electromagnetic immunity, the WESDAC D20ME operates flawlessly in harsh substation environments (-40°C to +85°C) with hot-swappable redundancy. Utilities worldwide trust this module for its backward compatibility with existing WESDAC installations and seamless integration into GE’s modern Grid Solutions portfolio.

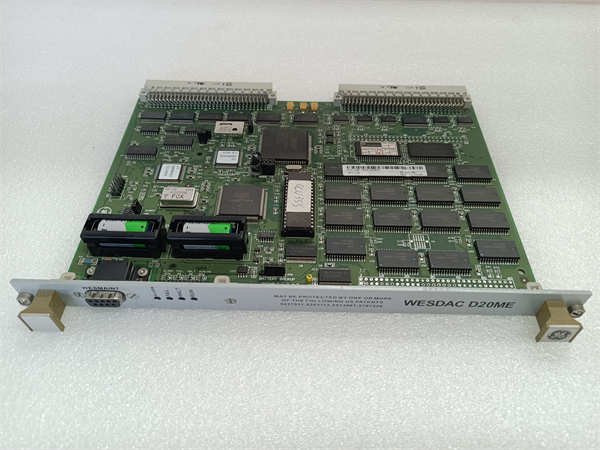

GE WESDAC D20ME

Technical Specifications

Main Features and Advantages

Deterministic Grid Control: The WESDAC D20ME executes protection logic sequences within 1ms, enabling ultra-fast load shedding during under-frequency events and automated capacitor switching for voltage regulation.
Legacy System Integration: Native support for Westinghouse WESDAC protocols (e.g., CDC, CDC+) ensures seamless communication with existing RTUs and IEDs without protocol converters.
Environmental Hardening: Conformal-coated electronics and IP52-rated housing withstand substation EMI, humidity, and temperature extremes (-40°C to +85°C).
Cybersecurity Ready: Hardware-enforced role-based access control and encrypted firmware updates meet NERC CIP requirements for critical infrastructure protection.
Hot-Swap Redundancy: Dual WESDAC D20ME modules operate in active/standby configuration with<50ms>

Application Field

The WESDAC D20ME excels in electrical power transmission and distribution. In transmission substations, it coordinates distance relays and breaker controls for fault isolation during lightning strikes. Distribution networks deploy it for Feeder Automation – executing sectionalizing switch sequences to minimize outage footprints. Renewable integration sites use the module for solar/wind farm collector station control, managing reactive power compensation. Industrial campuses leverage its load-shedding capabilities during generator black-start events. The WESDAC D20ME also monitors capacitor banks in railway traction substations and manages microgrid transitions between grid-connected/islanded modes.

Related Products

WESDAC D20RTU: Remote terminal unit for feeder monitoring.

WESDAC D20IO: 32-channel digital I/O expansion module.

DS200DCFBG1B: VME communication gateway for legacy integration.

IS200WROCH1A: GE Mark VIe controller for modern substations.

C30 Power Management Controller: Next-gen GE grid control platform.

SEL-3530 RTAC: Real-time automation controller for protocol translation.

Installation and Maintenance

Pre-installation preparation: Verify DC power supply stability (±5% tolerance) and rack grounding resistance (<1>WESDAC D20ME pairs. Disable chassis power before module insertion.
Maintenance recommendations: Quarterly inspect cooling fins for dust accumulation. Annually perform control logic validation via test switches. Monitor front-panel status LEDs (green RUN, amber FAULT). Replace backup lithium battery every 5 years to preserve configuration data.<!--1-->
