Description

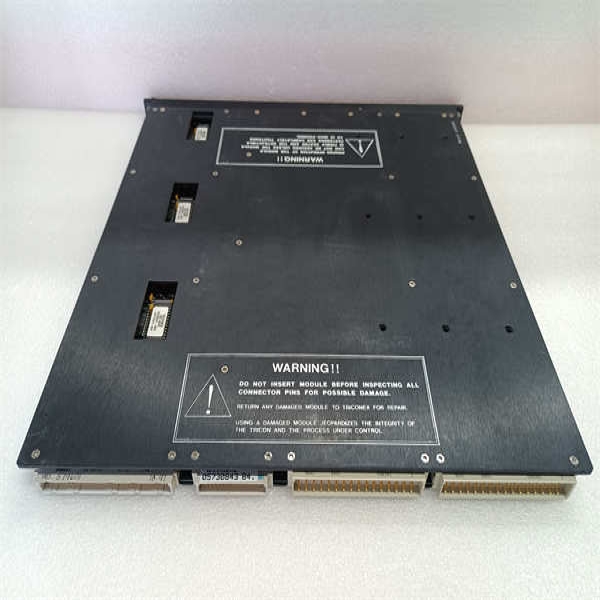

The TRICONEX 3704E is a high-integrity 4-channel analog input module designed for Triconex’s flagship Triple Modular Redundant (TMR) safety systems. Engineered for mission-critical applications, this module continuously monitors 4-20mA field signals from sensors (e.g., pressure transmitters, temperature probes) while executing three parallel processing streams for ultra-reliable fault detection. The 3704E implements advanced diagnostics like open-wire detection, signal drift analysis, and cross-channel validation to achieve Safety Integrity Level 3 (SIL 3) per IEC 61508 standards. Its hot-swappable architecture allows replacement without system shutdown – a vital feature for refineries or power plants where unscheduled downtime costs exceed $1M/hour.

As a core component of the Tricon Trident platform, the TRICONEX 3704E integrates with Tricon communication modules (e.g., 4351B) to enable real-time data sharing with DCS networks via Modbus TCP or OPC UA. The module’s patented TMR technology masks single-point failures by comparing results from three isolated input circuits, automatically voting to exclude erroneous readings. HART protocol support allows simultaneous digital communication with smart instruments for calibration verification. With a Mean Time To Failure (MTTF) exceeding 150 years, the 3704E sets the industry benchmark for safety-critical process monitoring in hydrocarbon processing and nuclear safety systems.

Technical Specifications

Main Features and Advantages

TMR Safety Architecture: The TRICONEX 3704E processes each input through three independent circuits with separate A/D converters. A hardware-based voter compares results every scan cycle, automatically discarding deviant values. This eliminates undetected failures – a critical requirement for safety instrumented functions (SIFs) like emergency shutdown systems.

Advanced Diagnostics: Continuous channel health monitoring detects open circuits (threshold <3>21.5mA), and ground faults. Onboard HART demodulators validate device configuration without interrupting analog signals. The module logs all anomalies in non-volatile memory for compliance auditing.

Environmental Hardening: With operating temperatures spanning -40°C to 70°C and 5g vibration resistance, the 3704E performs reliably in Arctic drilling platforms or desert compressor stations. Conformal coating protects against corrosive atmospheres in offshore applications.

Hot-Swap Capability: Replace failed modules in <90>

Cybersecurity: Hardware-enforced write protection prevents unauthorized configuration changes. Secure firmware validation uses SHA-256 hashing before boot-up.

Application Field

The TRICONEX 3704E is indispensable in hazardous processes where analog signal integrity directly impacts safety. In oil & gas, it monitors wellhead pressure safety valves (PSVs) and subsea choke valves, triggering emergency shutdowns if thresholds are breached. Petrochemical facilities deploy it for reactor temperature monitoring during exothermic processes, where runaway reactions could cause catastrophic explosions.

Power generation applications include nuclear reactor coolant level monitoring and turbine overspeed protection systems. The module’s radiation-hardened design ensures operation during LOCA (Loss-of-Coolant Accident) scenarios. In LNG plants, the 3704E controls cryogenic temperature sensors in liquefaction trains, utilizing its -40°C cold-start capability.

Pharmaceutical manufacturers leverage its HART integration for FDA-compliant calibration management in sterile filling lines. Mining operations use it for methane concentration monitoring in ventilation control systems, exploiting its ATEX certification.

Related Products

3706E – 8-channel analog input variant of the 3704E

4351B – Main Processor for Trident systems using 3704E

9762-210 – Redundant power supply for TMR racks

3700A – Legacy analog module compatible with 3704E racks

4119A – Digital input module for integrated safety systems

3503E – TMR Communication module for DCS integration

3625T – Thermocouple input module complementing 3704E

3805E – Analog output module for closed-loop safety control

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Trident v10.4+ required). Configure channel parameters in TriStation 1131 software before insertion. Ensure field wiring uses shielded twisted pairs grounded at one end only. Apply HART filter if noise >200mVpp is present.

Maintenance recommendations: Perform monthly diagnostic reports via TriStation. Calibrate connected sensors annually; the 3704E requires no recalibration. Replace modules showing persistent “Channel Fault” LEDs. During plant turnarounds, exercise hot-swap functionality to verify backup module readiness. Store spares in anti-static bags with desiccant.
