Description

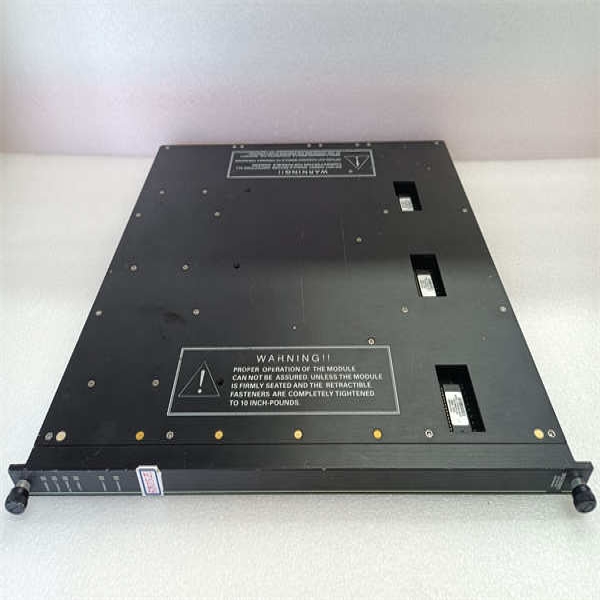

The TRICONEX 3805E is a Triple Modular Redundant (TMR) analog output module engineered for critical safety control in Triconex Trident safety instrumented systems (SIS). Designed to execute high-integrity actuation commands, this module converts digital signals from TMR processors into precise 4-20mA outputs for controlling final elements like emergency shutdown valves, turbine governors, or fire suppression systems. The 3805E employs three independent output circuits with continuous cross-comparison, ensuring fault tolerance that meets Safety Integrity Level 3 (SIL 3) per IEC 61508. Its patented failure-masking architecture guarantees that no single point of failure disrupts output signals – a non-negotiable requirement for hydrocarbon processing, power generation, and chemical safety applications.

As a cornerstone of Triconex’s fail-safe ecosystem, the TRICONEX 3805E supports HART 7 digital communication for valve positioner diagnostics and calibration verification without interrupting analog signaling. The module’s hot-swappable design enables replacement during live operations, minimizing process downtime. With a certified Mean Time to Failure (MTTF) exceeding 120 years and built-in cybersecurity protocols, it delivers unmatched reliability for safety-critical loops in refineries, offshore platforms, and nuclear facilities. Integration with Tricon communication modules (e.g., 3503E) allows real-time data exchange with DCS via Modbus TCP or OPC UA, bridging safety and control domains seamlessly.

Technical Specifications

Main Features and Advantages

TMR Output Validation: Three independent 16-bit DACs generate parallel output signals. A hardware voter compares results every scan cycle, discarding deviations >0.1mA. If one channel faults, the 3805E maintains accuracy within ±0.1% using the remaining channels – critical for burner management or gas compressor anti-surge control.

Active Diagnostics: Continuous monitoring detects open circuits, wire shorts, and excessive loop resistance. Onboard HART modems enable digital valve diagnostics (e.g., signature analysis for sticking valves) without secondary tools. Faults trigger alarms in TriStation software and illuminate front-panel LEDs.

Extreme Environment Resilience: Operates in Arctic (-40°C) or desert (70°C) conditions with conformal coating for salt/corrosion resistance. Withstands 5g vibration (10–500Hz) and 50g shock – ideal for floating LNG facilities or mining conveyors.

Cybersecurity Hardening: Secure firmware boot with SHA-256 validation prevents tampering. Role-based access control in TriStation software restricts configuration changes to authorized personnel.

Hot-Swap Operation: Replace modules in<60 seconds without system shutdown. Backplane isolation maintains arc flash protection during maintenance.

Application Field

The TRICONEX 3805E commands safety-critical actuators where failure could cause catastrophic events. In oil & gas, it modulates emergency shutdown valves (ESDVs) on pipelines and controls blowout preventers (BOPs) in offshore drilling rigs. Petrochemical plants rely on it for reactor pressure relief valve control during runaway reactions.

Power generation applications include turbine lube oil shutdown systems and nuclear reactor feedwater isolation. The module’s radiation tolerance ensures operation in severe accident scenarios. In LNG trains, the 3805E positions cryogenic control valves during liquefaction, leveraging its -40°C cold-start capability.

Pharmaceutical manufacturers use it for sterile steam valve control in autoclaves, while mining operations deploy it for ventilation damper actuation in methane-rich environments (ATEX Zone 2). Its HART integration supports predictive maintenance in water treatment plants by diagnosing pump control valve wear.

Related Products

3806E – 8-channel analog output variant of the 3805E

3704E – TMR Analog input module for closed-loop systems

4351B – Main Processor for Trident racks hosting 3805E

3503E – TMR Communication module for DCS integration

9762-210 – Redundant power supply for TMR chassis

4119A – Digital input module for permissive interlocks

3625T – Thermocouple input module for temperature safety loops

3800A – Legacy analog output compatible with 3805E racks

Installation and Maintenance

Pre-installation preparation: Verify TriStation software version (v11.3+ required). Configure output ranges and HART polling parameters before insertion. Use shielded twisted-pair cables with drain wires grounded at the marshalling cabinet only. Ensure loop impedance<900Ω per channel.

Maintenance recommendations: Perform quarterly output accuracy tests using calibrated mA meters. Monitor HART device alerts in TriStation for early valve degradation signs. Replace modules showing “Output Fault” LEDs or drift >0.2%. Exercise hot-swap functionality annually using Triconex extraction tools. Store spares in climate-controlled environments with<60% humidity.
