Description

The Westinghouse 1C31122G01 is a high-reliability Power Supply Module designed for mission-critical distributed control systems (DCS), originally engineered by Westinghouse Electric and now fully integrated into Emerson’s Ovation™ platform. This module delivers conditioned, stable DC power to Ovation controller racks, I/O subsystems, and communication networks, serving as the backbone for uninterrupted industrial automation operations. Engineered with dual-input redundancy and hot-swap capabilities, the Westinghouse 1C31122G01 ensures continuous operation even during primary power failures or maintenance activities. Its advanced voltage regulation (±1% accuracy) and transient protection safeguard sensitive control electronics from grid fluctuations and surges. As part of the Ovation DCS ecosystem, this module supports SIL 2/SIL 3 safety loops in power generation and process industries. The Westinghouse 1C31122G01 exemplifies rugged industrial design, featuring conformal-coated PCBs for humidity resistance and fault diagnostics via Ovation’s health-monitoring software. Its modular architecture simplifies integration into existing Westinghouse WDPF II or Ovation systems, providing backward compatibility while meeting modern operational demands for resilience and efficiency.

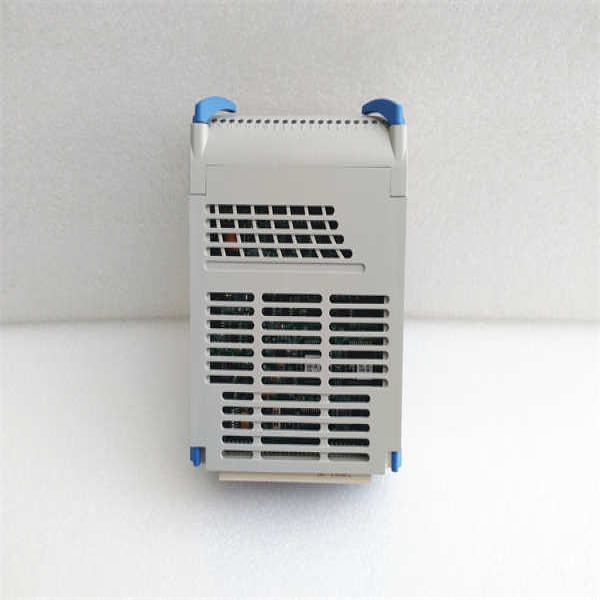

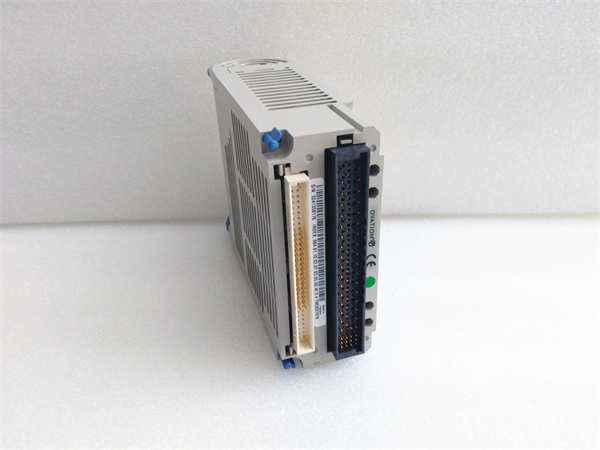

WESTINGHOUSE 1C31122G01

Technical Specifications

Main Features and Advantages

The Westinghouse 1C31122G01 delivers exceptional electrical robustness through its active current-sharing technology, allowing multiple units to operate in parallel without derating. This redundancy guarantees zero downtime during power source transitions or module replacements – critical for continuous processes like boiler control in power plants. Built-in diagnostics monitor output voltage ripple (<100mV>

Electromagnetic resilience: The module complies with IEC 61000-4-5 surge immunity (4kV) and EN 55011 Class A emissions, ensuring stable operation in electrically noisy substation environments. Its universal AC input (85–264V AC) accommodates global voltage standards without manual reconfiguration. The Westinghouse 1C31122G01 also features staggered inrush control (soft-start), preventing breaker trips during energization. Conformal coating on critical circuits provides resistance to humidity, dust, and corrosive atmospheres common in coal-fired plants or offshore platforms. Front-panel LED indicators (Input OK, Output OK, Fault) enable rapid troubleshooting without software tools. Backplane connectivity uses gold-plated contacts for oxidation resistance over 100,000 mating cycles, while the hot-swap design minimizes maintenance windows.

Application Field

The Westinghouse 1C31122G01 is indispensable in industries demanding fault-tolerant power infrastructure. In thermal power generation, it energizes Ovation controllers managing turbine sequencing, burner management, and SOx/NOx emission controls. Nuclear facilities deploy it for safety-related DC power loops due to its seismic-qualified construction (IEEE 344). Hydroelectric plants utilize the module’s humidity resistance for governor control systems in dam environments.

Oil & gas applications include upstream wellhead control and LNG liquefaction train safety systems, where the Westinghouse 1C31122G01’s wide temperature tolerance ensures reliability in desert heat or arctic cold. Water treatment facilities leverage its surge immunity for SCADA networks controlling high-voltage pumps. The module also integrates with Emerson’s hybrid renewable energy controllers, providing grid-stabilizing power for battery storage and solar inverters. In pharmaceuticals, it supports FDA-compliant batch process automation with cleanroom-compatible fan filters.

Related Products

1C31122G02: Enhanced 60A output variant for high-density controller racks

1C31129G01: 24V DC Input version for battery-backed applications

5X00070G01: Ovation Controller Module (paired with power supply)

1C31194G01: Power Distribution Panel for multi-module systems

1C31203G01: Fan Tray Assembly (replacement cooling unit)

1C31124G01: Non-redundant cost-optimized power supply

Ovation VPU: Virtualization platform compatible with legacy Westinghouse hardware

1C31181G01: Chassis Backplane for module mounting

WESTINGHOUSE 1C31122G01

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Ovation or WDPF II chassis) and clear adjacent slots for airflow. Check AC input wiring for correct phasing (L1/L2/N/GND) using 14 AWG minimum copper wire. Confirm grounding resistance <1>

Maintenance recommendations: Monitor output voltage drift monthly via Ovation Diagnostics. Replace air filters quarterly in dusty environments. Perform infrared thermography annually on terminal blocks. Keep firmware updated using Emerson’s Ovation Power Tools. During replacement, enable “Hot Swap Mode” in controller software before extracting the Westinghouse 1C31122G01. Store spares in anti-static bags with 40–60% RH.
