Description

The Emerson Ovation 1C31194G03 is a high-availability analog output module engineered for Emerson’s Ovation distributed control system (DCS), widely deployed in critical power generation and process industries. This module delivers precise 4–20 mA current signals to control field devices such as valves, dampers, and actuators with exceptional reliability. Designed for harsh industrial environments, the 1C31194G03 integrates 16-channel isolated outputs with advanced diagnostics, enabling real-time monitoring of loop integrity and fault detection. As part of Ovation’s modular I/O architecture, it supports hot-swapping and redundant configurations to eliminate single points of failure.

Built with galvanic isolation per channel, this module prevents ground loops and ensures signal integrity in electrically noisy settings. The Emerson Ovation 1C31194G03 interfaces seamlessly with Ovation controllers via high-speed serial buses, facilitating rapid data exchange for complex control strategies. Its compact form factor optimizes cabinet space while maintaining compliance with global safety standards. For operators requiring mission-critical precision, this module provides deterministic performance in turbine control, boiler management, and balance-of-plant automation.

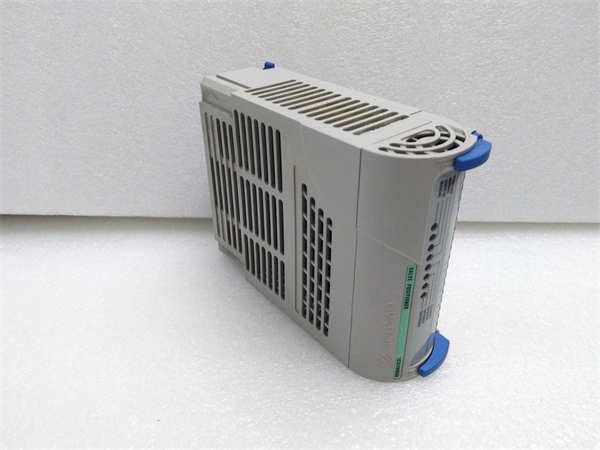

WEISTINGHOUSE 1C31194G03

Technical Specifications

Main Features and Advantages

Channel Independence: Each of the 16 channels in the Emerson Ovation 1C31194G03 features complete galvanic isolation, eliminating cross-talk and ground loop interference while enabling mixed signal types without compromise. Diagnostic Intelligence: Continuous monitoring of open-circuit, short-circuit, and over-range conditions ensures early fault detection, with events logged in the Ovation historian for predictive maintenance. High Availability: Hot-swappable design and hardware redundancy capabilities minimize downtime during module replacement or controller failover events.

The module’s 16-bit resolution provides industry-leading precision for critical control loops, maintaining process stability in dynamic environments. Backplane-powered operation simplifies cabling and reduces auxiliary hardware costs. Its compliance with IEC 61000 electromagnetic compatibility standards guarantees resilience against industrial electrical noise. Tight integration with Ovation’s cybersecurity framework, including role-based access and firmware validation, protects against unauthorized configuration changes.

Application Field

The Emerson Ovation 1C31194G03 excels in power generation, where it modulates fuel valves, governor controls, and feedwater pumps in coal, gas, and nuclear plants. In combined-cycle facilities, it manages steam turbine bypass valves and HRSG inlet dampers with millisecond response times. For water treatment plants, this module controls chemical dosing pumps and filtration backwash sequences with precision.

In oil & gas upstream operations, the module drives choke valves and compressor anti-surge systems. Petrochemical refineries utilize its high-density outputs for distillation column pressure control and reactor temperature management. The 1C31194G03’s rugged construction suits offshore platforms and desert installations, where temperature extremes and vibration demand robust performance. Its diagnostic capabilities are critical in unmanned facilities, enabling remote troubleshooting and reducing site visits.

Related Products

1C31181G01: 8-channel analog input module for thermocouple/millivolt signals

1C31203G01: Redundant power supply for Ovation I/O racks

1C31129G01: Controller module for Ovation DCS

1C31222G01: 32-channel digital input module

1C31197G03: 16-channel analog input counterpart

Ovation CIOM: Compact I/O module for space-constrained installations

5X00070G01: Communication gateway for third-party PLC integration

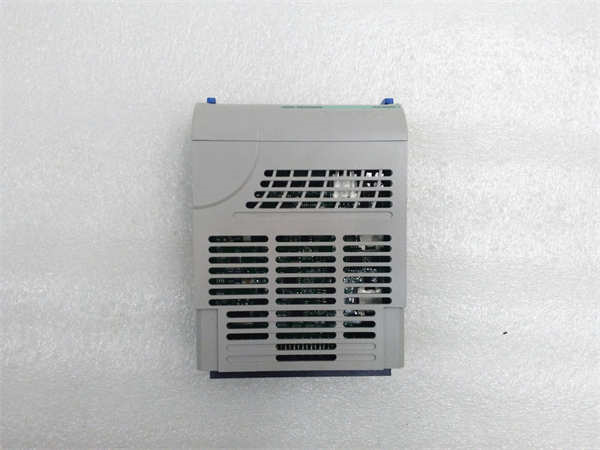

WEISTINGHOUSE 1C31194G03

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (requires Ovation I/O baseplate 1C31224G01). Discharge static electricity and use grounding straps. Confirm firmware version matches controller requirements. Ensure adequate ventilation around the module.

Maintenance recommendations: Perform annual calibration verification using a 0.05% accuracy current meter. Monitor channel diagnostics via Ovation Operator Workstation. Replace only during planned shutdowns unless redundant. Store spares in anti-static bags with desiccant. Always update firmware using Emerson’s secure tools.
