Description

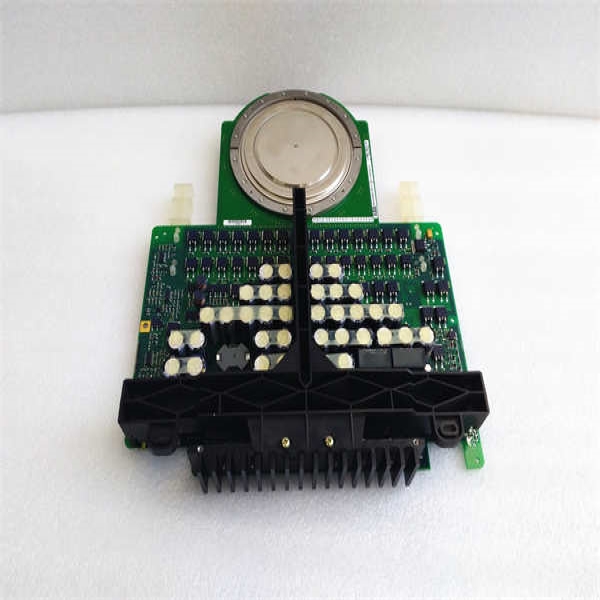

The ABB 5SHY3545L0009 is a high-power asymmetric Insulated Gate-Commutated Thyristor (IGCT) designed for ultra-reliable switching in multi-megawatt power conversion systems. Rated for 4500 V blocking voltage and 4000 A turn-off current, this press-pack device forms the core of ABB’s medium-voltage drive and HVDC converter stacks. Engineered for seamless integration with the ABB GVC750BE101 gate unit and 3BHE009681R0101 control module, the 5SHY3545L0009 achieves industry-leading di/dt performance (4,500 A/µs) with minimal switching losses. Its monolithic silicon architecture eliminates bond wires, enabling robust operation in high-vibration environments like ship propulsion or mining excavators.

The ABB 5SHY3545L0009 operates within ABB’s comprehensive power electronics ecosystem, supported by the 3BHB013085R0001 isolated DC/DC power supply for critical gate-drive energy. Double-sided liquid cooling ensures optimal thermal management at current densities exceeding 100 A/cm², while integrated short-circuit withstand capability (12 kA for 10 ms) prevents catastrophic failures during grid faults. Precision-matched to NPC (Neutral-Point-Clamped) and ANPC (Active NPC) topologies, this IGCT enables >99% efficiency in energy conversion for heavy industries where operational continuity is paramount. ABB’s rigorous validation ensures compliance with global grid codes and marine classification standards.

Technical Specifications

Main Features and Advantages

Ultra-Fast Fault Response: The ABB 5SHY3545L0009 achieves sub-3μs short-circuit turn-off via the GVC750BE101 gate unit, protecting converter valves during DC bus faults. Hardware-based overcurrent protection operates independently of control software, ensuring SIL 2 safety compliance for critical infrastructure.

Advanced Thermal Management: Optimized press-pack contact geometry reduces thermal resistance (Rth(j-s) to 0.015 K/W, enabling 150% overload capability for 60 seconds. Integrated fiber-optic temperature sensors in the 3BHE009681R0101 control module enable real-time junction monitoring, preventing thermal runaway in demanding cyclic loads like steel rolling mills.

Predictive Diagnostics: Continuous health monitoring of gate drive signals (di/dt accuracy, trigger threshold drift) through the ABB GVC750BE101. Deviations >5% from baseline trigger maintenance alerts, reducing MTTR by 40% through targeted component replacement.

Redundant Drive Architecture: Dual-redundant 3BHB013085R0001 power supplies ensure uninterrupted gate energy. Hot-swappable GVC750BE101 units allow maintenance without system shutdown – critical for offshore wind converter platforms and uninterruptible smelter operations.

Application Field

The ABB 5SHY3545L0009 dominates mission-critical power conversion where megawatt-scale reliability is non-negotiable. In HVDC transmission, it enables multi-gigawatt interconnectors transferring offshore wind energy with <0>

Industrial mega-drives deploy the 5SHY3545L0009 for compressor control in LNG plants (30–100 MW range), solving torsional stability challenges through precise current control. Mining applications include 10,000-tonne/hour conveyor drives and electric rope shovels, where its dust-sealed press-pack design withstands particulate ingress. The IGCT also anchors STATCOMs stabilizing voltage in arc furnace installations, eliminating flicker during electrode positioning.

Related Products

GVC750BE101: Redundant gate unit with 6 kV isolation for 5SHY3545L0009 firing control.

3BHE009681R0101: Diagnostics controller with fiber-optic interfaces for real-time IGCT health analytics.

3BHB013085R0001: 24V DC/50A redundant power supply for gate electronics.

5STP26Q4500: Clamping diode module for 3L-NPC converters using 5SHY3545L0009.

5SXE08-0185: Fiber-optic transmitter kit for noise-immune control signals.

5SDF1045H0003: Liquid-cooled heatsink for 93mm IGCTs (4 kA rating).

5SHY3545L0008: 4.5 kV/3.6 kA variant for lower-power applications.

3BHE039205R0101: IGCT test station for offline validation.

Installation and Maintenance

Pre-installation preparation: Validate cooling loop cleanliness (ISO 4406:1999 Class 14/11). Measure press-pack contact parallelism (<15>GVC750BE101 units for 48 hours at 85°C. Verify 3BHB013085R0001 power supply redundancy with sequential failure simulation.

Maintenance recommendations: Quarterly thermal imaging of IGCT stacks (investigate >3°C inter-device delta). Annually perform on-state voltage (VTM) test at 2500 A to detect silicon aging. Replace electrolytic capacitors in 3BHE009681R0101 every 8 years. Maintain nitrogen-purged spares at 25°C/30% RH. Validate redundancy switchover biannually during planned outages.
