Description

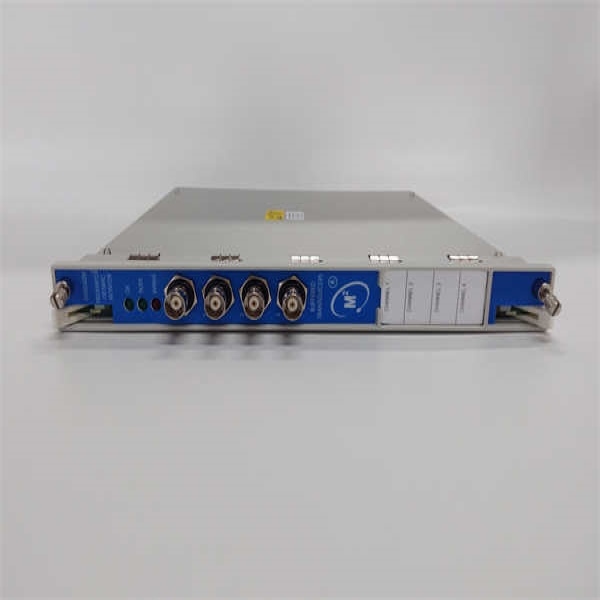

The Bently Nevada 3500/42M is a dual-channel vibration monitor module within the renowned 3500 Machinery Protection System, delivering industry-leading machinery health diagnostics for critical rotating assets. Engineered for high-reliability applications, this module continuously measures radial vibration (velocity/displacement) and axial position via proximity probes, enabling real-time detection of imbalance, misalignment, bearing wear, and other mechanical faults. The 3500/42M integrates seamlessly with the 3500 rack, providing dynamic waveform capture, advanced alert logic, and redundant signal processing to prevent false trips.

As a core component of Baker Hughes’ asset protection ecosystem, the Bently Nevada 3500/42M offers SIL 2-certified safety functionality per IEC 61508. Its patented digital tracking filters eliminate electrical noise interference, while transient capture technology records pre-trip data for root cause analysis. The module supports multiple sensor types (eddy current, velocity seismics) and features automatic sensor validation to ensure measurement integrity. For power generation, oil & gas, and heavy industries, the 3500/42M transforms raw vibration data into actionable intelligence, minimizing unplanned downtime and catastrophic failures.

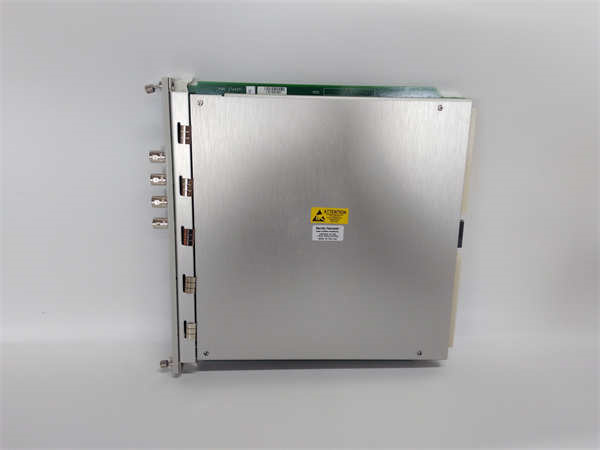

BENTLY 3500/42M

Technical Specifications

Main Features and Advantages

Precision Machinery Diagnostics: The 3500/42M employs 24-bit ADC resolution and digital tracking filters to extract true mechanical vibration signals from electrical noise. Its oversampling technology captures transient events down to 10 μs, revealing incipient faults like rotor rubs or blade passing phenomena missed by conventional systems.

Reliability-Focused Architecture: Dual-channel independence with isolated power supplies prevents cross-channel failure propagation. The module’s relay voting logic enables “2-out-of-3” trip configurations, significantly reducing spurious shutdowns while maintaining SIL 2 safety integrity. Automatic sensor fault detection alerts operators to deteriorating probe conditions before measurement drift occurs.

Advanced Analysis Capabilities: Real-time FFT (Fast Fourier Transform) processing identifies specific vibration frequencies correlated with mechanical faults. Gap voltage monitoring tracks bearing eccentricity changes, while integrated orbit and time-base plots facilitate rapid fault classification. The 3500/42M stores 16 waveform snapshots with pre-trigger capture for post-event analysis.

Seamless System Integration: Compatible with all 3500 series racks and System 1™ diagnostic software. Supports MODBUS/TCP for direct historian connectivity and provides dynamic data streaming for continuous condition monitoring. Hot-swappable design allows replacement without rack shutdown, minimizing maintenance windows.

Application Field

The Bently Nevada 3500/42M is indispensable in industries where rotating machinery failure carries severe safety or financial consequences. In power generation, it monitors turbine-generator sets for vibration excursions during startup/shutdown transients, preventing catastrophic blade loss. For offshore platforms, the module safeguards gas compressors by detecting surge conditions and impeller unbalance in hazardous Zone 1 environments.

Petrochemical plants utilize the 3500/42M to monitor critical pumps and fans, identifying cavitation or coupling misalignment before seal failures cause flammable leaks. In hydroelectric facilities, it tracks thrust bearing wear and runner imbalance in generators operating under variable load conditions. The module’s API 670 compliance makes it ideal for upstream oil & gas applications, including pipeline compressor stations where axial position monitoring prevents rotor thrust bearing overload. Paper mills deploy it on large drying cylinders to detect roll deflection and bearing degradation in high-humidity environments.

Related Products

3500/15 – Power supply module for 3500 rack

3500/20 – Rack interface module for system communication

3500/25 – Keyphasor module for phase reference

3500/32M – Proximitor power supply for eddy current probes

3500/40M – Single-channel vibration monitor

3500/44M – Quad-channel temperature monitor

3500/93 – Communication gateway for MODBUS/TCP

System 1™ – Asset performance management software platform

3300 XL Proximity Probes – Eddy current sensors for vibration measurement

BENTLY 3500/42M

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (requires 3500 series frame with 15V DC backplane). Calibrate proximity probes to target material using TK-3 calibration kit before wiring. Ensure shielded twisted-pair cables with 100% coverage braid are used for sensor connections. Configure relay trip settings via 3500 Rack Configuration Software before power-up.

Maintenance recommendations: Perform quarterly verification of calibration using portable vibration simulators. Monitor “OK” LED status and relay health indicators monthly. Clean card edge connectors annually with isopropyl alcohol. Replace backup batteries every 5 years. When servicing the 3500/42M, always discharge electrostatic energy through wrist strap before handling. Archive configuration files before firmware updates using System 1™ software.
