Description

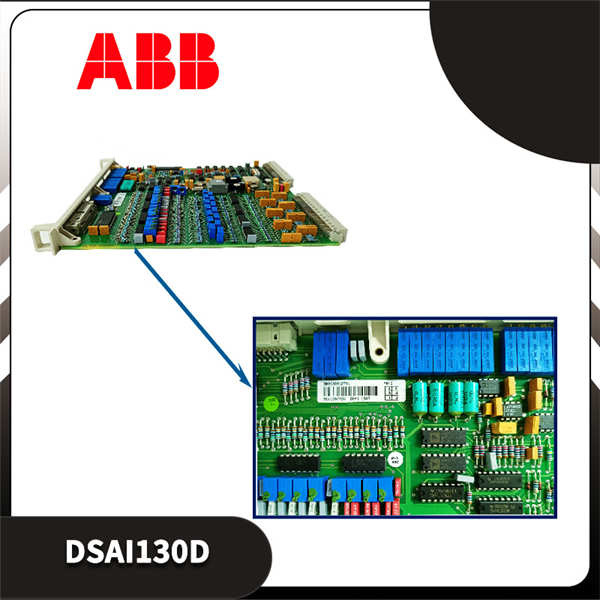

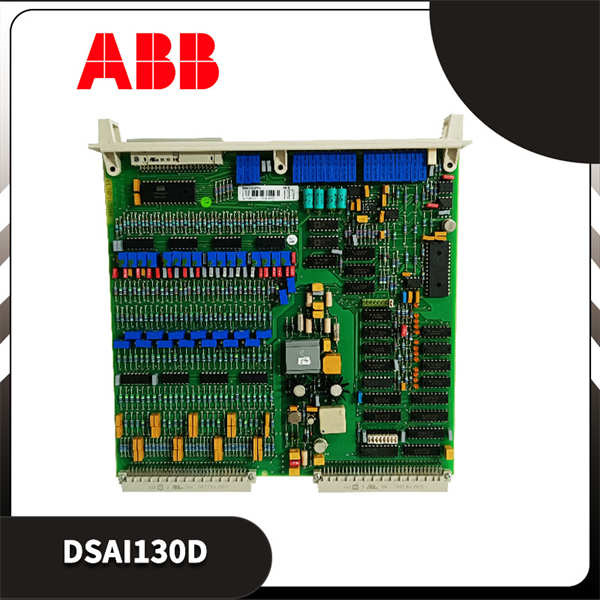

The ABB DSAI130D is a high-density analog input module designed for ABB’s System 800xA and Advant OCS distributed control systems, delivering precision signal acquisition in critical process applications. This 16-channel module converts field-level analog signals (4-20mA, 0-10V, thermocouples, RTDs) into digital data with exceptional accuracy, serving as the sensory nerve system for industrial automation. The DSAI130D features galvanic isolation between channels to prevent ground loop interference and supports HART protocol pass-through for smart instrument diagnostics.

Engineered for continuous operation in harsh environments, this module provides comprehensive diagnostic capabilities including wire-break detection, over-range alerts, and drift compensation. Its hot-swappable design enables maintenance without process interruption when installed in redundant configurations. The ABB DSAI130D integrates seamlessly with ABB’s industrial networks via S800 I/O bus, delivering real-time data to controllers with deterministic latency. For power generation, chemical processing, and other mission-critical applications, this module ensures data integrity through patented noise rejection techniques and automatic cold-junction compensation for temperature measurements.

ABB DSAI130D

Technical Specifications

Main Features and Advantages

Intelligent Signal Processing: The DSAI130D incorporates adaptive filtering that automatically adjusts to electrical noise levels, maintaining measurement integrity in electromagnetically harsh environments like steel mills or substations. Each channel features independent A/D conversion with simultaneous sampling, eliminating skew errors in multi-point control loops.

Advanced Diagnostics: Continuous channel health monitoring detects open circuits, short circuits, and signal degradation before measurements exceed tolerance. The module logs calibration dates and performs automatic drift compensation, reducing maintenance interventions. HART communication capability enables bidirectional data exchange with smart transmitters without additional hardware.

Robust Design: Conformal-coated electronics withstand 95% non-condensing humidity and corrosive atmospheres. The front-accessible terminal design simplifies wiring, while color-coded channels accelerate troubleshooting. Redundant power inputs ensure continuous operation during supply fluctuations.

Engineering Efficiency: Automatic recognition in Control Builder M engineering environment eliminates manual configuration. The DSAI130D supports channel-level simulation for pre-commissioning testing and stores calibration certificates in non-volatile memory for audit trails.

Application Field

The ABB DSAI130D excels in process industries requiring high-fidelity measurement across distributed assets. In chemical plants, it monitors reactor temperatures with RTD inputs and controls catalyst feed rates via 4-20mA loops. Power generation facilities use it for turbine bearing temperature monitoring (TC inputs) and steam pressure acquisition. Oil & gas applications deploy the DSAI130D in safety-critical functions like flare gas monitoring and separator level control.

Pharmaceutical manufacturers leverage its HART capability for PAT (Process Analytical Technology) compliance, collecting diagnostic data from smart sensors in cleanrooms. Water treatment plants utilize the module for pH/ORP monitoring and chemical dosing control. In pulp & paper production, it withstands electrostatic interference near high-voltage drives while monitoring motor temperatures. The module’s SIL 2 certification enables deployment in safety instrumented functions like furnace draft pressure monitoring.

Related Products

DSDO130D – 16-channel digital output counterpart

DSAO130D – Analog output module for control valve actuation

S800 I/O Baseplate – Mounting platform with bus connection

CI854 – PROFIBUS communication interface

SD822 – Memory module for configuration backup

TA511 – Terminal unit for field wiring

DSCS140 – Communication slave module

PM803F – Safety controller for SIL 3 applications

ABB DSAI130D

Installation and Maintenance

Pre-installation preparation: Verify compatible baseplate (e.g., FI810F) and firmware version matching control system requirements. Discharge static electricity using grounded wrist straps. Prepare HART communicator for field device configuration if applicable. Label all field wires according to loop diagrams before connection.

Maintenance recommendations: Perform annual calibration verification using precision signal source. Monitor module diagnostics through Control Builder M’s health report feature. Replace every 10 years or after 100,000 power cycles. When servicing the DSAI130D, always de-energize the field power supply before disconnection. Clean terminal contacts with electronic-grade isopropyl alcohol during maintenance windows.
