Description

The ABB 3BHB005243R0105 is an advanced High-Integrity Controller Module for ABB’s AC 800M distributed control system (DCS), engineered for mission-critical process automation in power generation, oil & gas, and chemical industries. As part of ABB’s 800xA ecosystem, this 3BHB005243R0105 module delivers deterministic control with SIL 3 safety certification (IEC 61511), executing complex safety instrumented functions (SIF) in<10>ABB 3BHB005243R0105 supports up to 250,000 I/O points via ABB’s S800 I/O network and leverages industrial Ethernet protocols (IEC 61850, Modbus TCP) for unified plant integration. With extended temperature resilience (-40°C to +70°C) and MIL-STD-202H shock/vibration resistance, this controller ensures 99.999% availability in extreme environments.<!--10-->

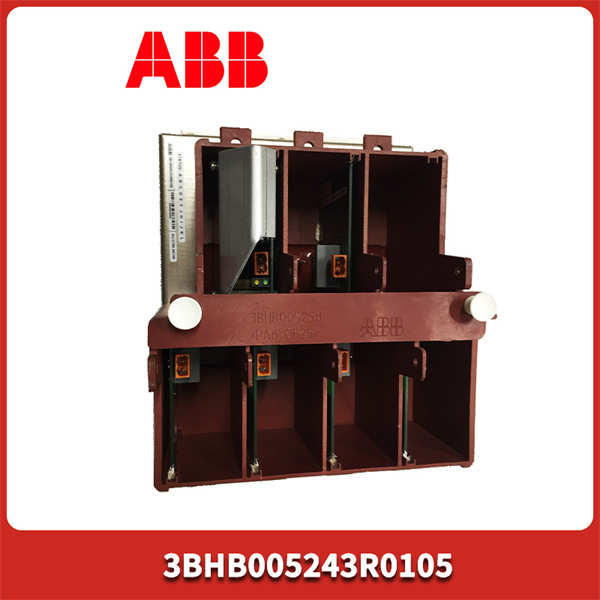

ABB 3BHB005243R0105

Technical Specifications

Main Features and Advantages

Fault-Tolerant Control: Dual-core processors with hardware-assisted redundancy synchronization eliminate single-point failures. Voting logic (2oo3) ensures continuous operation during module faults.
Deterministic Performance: Hardware-scheduled tasks execute safety logic within 10 ms, critical for turbine overspeed protection and emergency shutdown (ESD) systems.
Unified Engineering: Integrates with ABB’s Control Builder M3 software for drag-and-drop configuration of 800xA DCS, reducing commissioning time by 40%.
Cybersecurity: Secure boot firmware, encrypted communications, and audit trails comply with IEC 62443-3-3. Role-based access restricts unauthorized parameter changes.
Scalable I/O: Supports hybrid fieldbus networks (Profibus DP, HART-IP) via CI854/CI867 communication modules. Real-time diagnostics monitor signal integrity across 10,000+ tags.
Ruggedized Design: Conformal-coated PCB withstands 95% humidity and corrosive atmospheres. Fanless cooling operates at 70°C ambient.

Application Field

The ABB 3BHB005243R0105 excels in high-risk continuous processes:

Power Plants: Governs boiler protection systems (BMS) and turbine control (DEH) with SIL 3-certified logic.

Oil Refineries: Manages safety instrumented systems (SIS) for flare control and emergency depressurization.

Chemical Processing: Controls exothermic reactor shutdown sequences and pressure relief valves.

Pharmaceutical: Validates sterile processes with 21 CFR Part 11-compliant audit trails.

Marine: Operates dynamic positioning (DP) systems on offshore vessels via Class DNV GL certification.

Related Products

ABB PM803F: SIL 3-certified safety CPU for redundant architectures

ABB CI854: Profibus DP-V1 communication interface

ABB SD822: 16-channel digital input module (24 V DC)

ABB TA521: S800 I/O termination assembly

ABB PP865: 24 V DC redundant power supply

ABB TP856: 15″ HMI touch panel for 800xA

ABB COM625: Cybersecurity gateway for OT/IT convergence

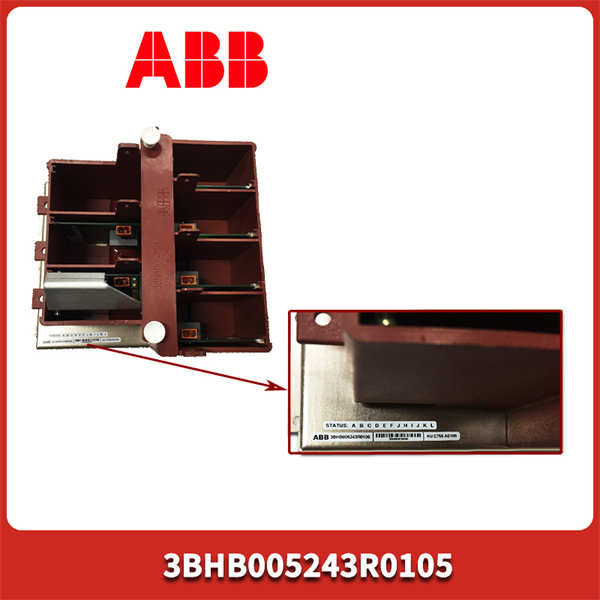

ABB 3BHB005243R0105

Installation and Maintenance

Pre-installation preparation: Verify DIN rail (EN 60715) mounting space and redundant 24 V DC power sources (±5% voltage tolerance). Ground chassis to<0>Maintenance recommendations: Perform quarterly redundancy switchover tests. Monitor CPU load via 800xA diagnostics—sustained >85% triggers optimization alerts. Replace backup batteries (3.6 V Li-SOCl₂) every 5 years. Update firmware during planned shutdowns using ABB’s Secure Boot Manager. Clean heat sinks annually in dusty environments to prevent the ABB 3BHB005243R0105 from thermal throttling.<!--0-->
