The ABB 3BHE039203R0101 GVC736CE101 is a high-reliability controller module for ABB’s Freelance Distributed Control System (DCS), engineered for mid-range industrial automation applications. This versatile unit combines process control, sequence logic, and safety functions in a single compact platform, featuring dual-core processing with deterministic cycle times down to 50ms. Designed for SIL 2 applications per IEC 61508, the GVC736CE101 supports up to 500 I/O points and integrates seamlessly with AC 800M high-level controllers via PROFIBUS DP. Its ruggedized construction withstands harsh environments (-25°C to +70°C) while maintaining 99.99% availability through hot-swappable redundancy options. The module serves as the operational core for batch processes, machinery control, and safety interlocks in pharmaceuticals, food & beverage, and water treatment facilities.

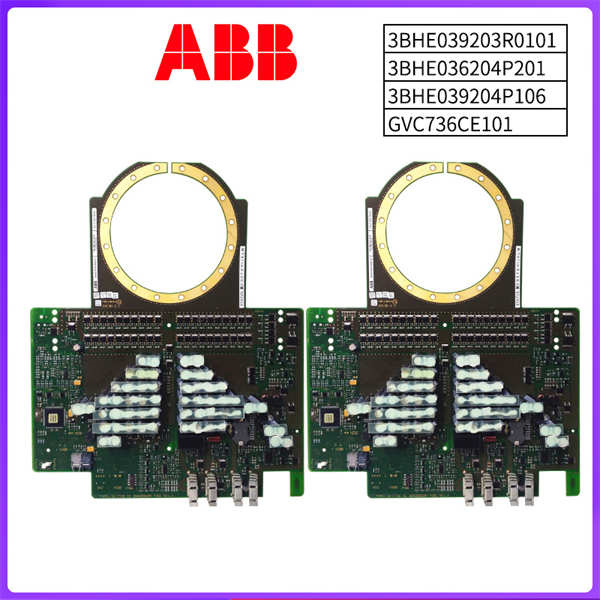

ABB 3BHE039203R0101 3BHE036204P201 3BHE039204P106 GVC736CE101
Complementary Components:
3BHE036204P201: AC 800M CPU module for supervisory control
3BHE039204P106: Redundant power supply unit
GVC736CE101: Primary control module
Technical Specifications (GVC736CE101)
| Parameter Name | Parameter Value |
| Product Model | ABB 3BHE039203R0101 GVC736CE101 |
| Manufacturer | ABB |
| Product Type | DCS Controller Module |
| Processor | Dual-core ARM Cortex-A9 @ 800 MHz |
| Memory | 512 MB DDR3 + 1 GB Flash |
| Cycle Time | 50 ms minimum |
| I/O Capacity | 500 points (mix of AI/AO/DI/DO) |
| Safety Rating | SIL 2 (IEC 61508) |
| Communication | PROFIBUS DP, Modbus TCP, OPC UA |
| Redundancy | Hot-swap N+1 support |
| Operating Temperature | -25°C to +70°C |
| Power Supply | 24 V DC ±10% (via 3BHE039204P106) |
| Certifications | UL, CE, ATEX Zone 2 |
| Dimensions | 120 × 100 × 75 mm (H×W×D) |
| MTBF | >250,000 hours |
Main Features and Advantages
Integrated Control & Safety:
Combines regulatory PID control (32 loops) with safety instrumented functions in one GVC736CE101 module, reducing hardware footprint by 40%. Safety logic solver executes SIL 2 functions with <100ms>
Seamless Connectivity:
Native PROFIBUS DP master interface connects to remote I/O stations (e.g., S500/S900 series) and AC 800M controllers. OPC UA server enables secure data exchange with MES/ERP systems.
Engineering Efficiency:
Uses ABB’s Control Builder F engineering suite with drag-and-drop function blocks. Automatic version tracking and change documentation support 21 CFR Part 11 compliance.
Robust Operation:
Conformal-coated PCB resists humidity (95% non-condensing) and corrosive atmospheres. Vibration tolerance to 2g (15-150 Hz) suits mobile equipment applications.
Application Field
The GVC736CE101 excels in modular automation:
Pharma: Controls bioreactor temperature/pH loops and CIP systems with audit trails
Food & Beverage: Manages pasteurization sequencing and filling line synchronization
Water Treatment: Regulates chemical dosing pumps and filter backwash cycles
Packaging: Coordinates robotic palletizers with <50ms>
Renewables: Controls biomass boiler feed systems with OPC UA cloud integration
Related Products
ABB 3BHE036204P201 (PM803F): AC 800M CPU for supervisory control
ABB 3BHE039204P106 (PPD512): 24V/10A redundant power supply
ABB SAI01 1SAP249900R0271: Analog input module (16-channel)
ABB SDI01 1SAP250000R0271: Digital input module (32-channel)
ABB COM10 1SAP130000R0001: PROFIBUS DP coupler
ABB CP600 1TGE120010R1300: Operator panel
ABB CI871 3BSE056767R1: Ethernet interface module
ABB 3BHE039203R0101 3BHE036204P201 3BHE039204P106 GVC736CE101
Installation and Maintenance
Pre-installation preparation: Verify DIN-rail grounding (<0>
Maintenance recommendations: Monitor processor load via web interface (sustained >70% requires optimization). Replace cooling fans every 60,000 hours. Perform annual firmware updates during planned shutdowns. Test SIL functions quarterly per safety validation plan.
