Description

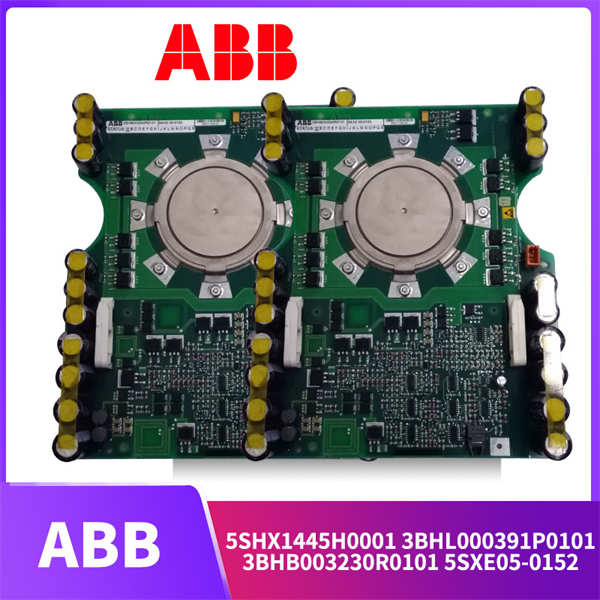

The ABB 5SHX1445H0001 is an asymmetric Integrated Gate-Commutated Thyristor (IGCT) engineered for high-voltage DC-link applications in industrial power conversion systems. Part of ABB’s flagship 5SHX series, this module delivers exceptional performance in unidirectional power flow scenarios, featuring a 6,500V blocking voltage and optimized switching characteristics. The ABB 5SHX1445H0001 eliminates the need for complex snubber circuits through its low-stray-inductance press-pack design, reducing system footprint by 30% compared to conventional solutions. Its asymmetric structure allows superior conduction efficiency (99.2% typical) in rectifier and inverter stages of medium-voltage drives, making it ideal for energy-intensive processes. Precisely matched to ABB ACS2000 and ACS6000 drive platforms, the ABB 5SHX1445H0001 supports switching frequencies up to 250 Hz while maintaining junction temperatures below critical limits. Ruggedized for harsh environments, it withstands thermal cycling shocks and mechanical vibration levels exceeding 5g RMS. For engineers designing compact, high-efficiency power stacks, the ABB 5SHX1445H0001 offers a future-proof solution that reduces total cost of ownership through extended service life and minimal cooling requirements.

Technical Specifications

Main Features and Advantages

The ABB 5SHX1445H0001 delivers industry-leading power density through its asymmetric silicon design, enabling 15% higher current capability than symmetric counterparts at equivalent voltage ratings. Its cathode-shorted structure minimizes turn-off losses (<1> Reliability-driven engineering: Hermetically sealed ceramic-metallized housings prevent humidity ingress in coastal environments, while integrated voltage grading electrodes eliminate partial discharge risks above 4kV. The ABB 5SHX1445H0001 features a low-inductance gate path (<5nH>ABB 5SHX1445H0001 outperforms IGBT alternatives in lifetime energy throughput by 3.2x.

Application Field

The ABB 5SHX1445H0001 excels in DC-link clamping applications where unidirectional voltage blocking suffices. In metals production, it drives reversing mill DC bus systems (8–12 MW range), handling rapid current reversals without snubber networks. For mining, the module powers BLDC motor drives in conveyor systems moving 10,000 tons/hour, surviving dust-laden environments through IP54-equivalent sealing. Energy sector applications include STATCOM DC-link stabilization for solar farms, where its 6.5kV rating interfaces directly with 4.16kV grids.
Rail transportation leverages the ABB 5SHX1445H0001 in locomotive traction converters (3kV DC systems), enabling regenerative braking efficiency >92%. Petrochemical plants deploy it in ethylene cracker motor drives (6–10 MW), where its asymmetric topology simplifies converter architecture. Marine propulsion systems benefit from the module’s corrosion-resistant nickel plating in thruster VFDs, particularly in ice-class vessels operating at -30°C.

Related Products

ABB 5SHX08F4502: 8,000A symmetric IGCT for bidirectional applications

ABB 5SHY35L4503: Matching gate unit with reinforced fiber interface

ABB 5SXE10-0215: Hybrid cooling assembly for 5SHX1445H0001

ABB 5SHX1445L0001: Lower-cost variant with 4,500V blocking

ABB 5SHX0660F0002: 6,600A symmetric module for HVDC

ABB ACS2000: Medium-voltage drive platform utilizing this module

ABB 5SDF1045H0001: 10kN clamping kit for vertical mounting

ABB 3BSE018105R1: Condition monitoring interface module

Installation and Maintenance

Pre-installation preparation: Verify DC-link capacitor bank discharge (<50V>ABB 5SHX1445H0001. Clean mounting surfaces with isopropyl alcohol to achieve <0> Maintenance recommendations: Quarterly thermographic inspections should monitor temperature differentials across parallel-connected ABB 5SHX1445H0001 modules—variations >8°C indicate mounting issues. Annually measure gate-unit trigger current (nominal 5A±0.2A) and replace fibers showing >3dB light loss. After 10,000 operating hours, retorque clamping bolts to compensate for creep deformation. Always maintain cooling air velocity >6m/s for hybrid-cooled installations.
