Description

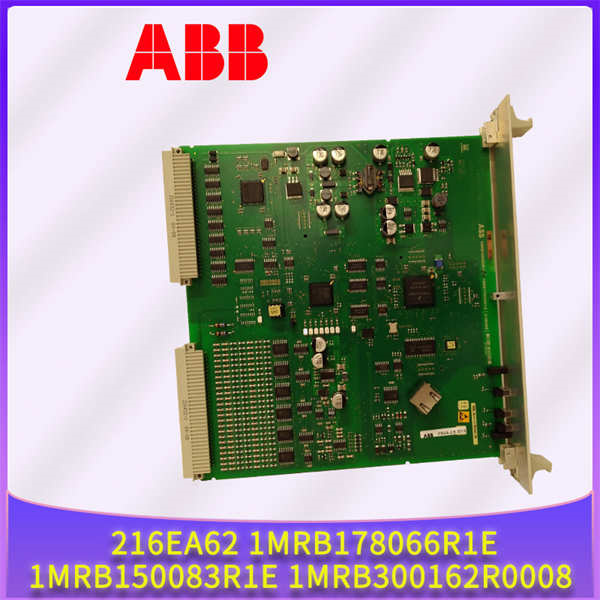

The ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008 is a high-density analog input solution for ABB’s S800 I/O platform, designed for precision measurement in critical process control systems. This comprehensive package integrates the 216EA62 analog input module with specialized terminal boards (1MRB178066R1E) and fused connection units (1MRB150083R1E/1MRB300162R0008), delivering a complete signal conditioning interface. As part of ABB’s Advant Controller 400 ecosystem, the module provides 16 channels of configurable input for 4-20mA, 0-10VDC, RTD, and thermocouple signals with exceptional ±0.05% accuracy. Its galvanic isolation (500V AC) ensures noise immunity in electrically harsh environments like power substations and offshore platforms, while the integrated fusing protects against overcurrent events. The ABB 216EA62 supports SIL 2 safety applications per IEC 61508 and features continuous diagnostics through ABB’s Control Builder M software, making it ideal for safety instrumented systems in oil refineries, chemical plants, and power generation facilities. The pluggable terminal design enables rapid maintenance without system shutdown, maximizing operational uptime.

ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008

Technical Specifications

Main Features and Advantages

Precision Measurement: The ABB 216EA62 achieves laboratory-grade accuracy with 16-bit resolution and automatic temperature compensation, maintaining ±0.05% baseline accuracy across industrial temperature ranges. Each channel independently auto-detects signal type via Control Builder M software, eliminating hardware reconfiguration during retooling.

Robust Protection System: Integrated fusing (1MRB300162R0008) provides per-channel overcurrent protection, while the 1MRB178066R1E terminal board offers screw-clamp connections rated for 2.5mm² wires. Galvanic isolation (500V AC) prevents ground loops in cathodic protection systems and ensures signal integrity during lightning strikes.

Operational Efficiency: Hot-swappable design allows module replacement without process interruption. The pluggable 1MRB178066R1E terminal board reduces rewiring time by 80% during maintenance. Continuous diagnostics monitor open circuits, short circuits, and drift, enabling predictive maintenance. SIL 2 certification supports safety instrumented functions without additional hardware.

Application Field

The ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008 excels in critical measurement applications across heavy industries. In power generation, it monitors turbine bearing temperatures, generator hydrogen purity, and boiler feedwater conductivity for SIL 2-certified protection systems. Oil & gas refineries deploy this solution for reactor temperature profiling, flare gas analysis, and desalter interface detection, where its EMI immunity prevents false trips in high-voltage switchyards.

Chemical processors utilize its RTD/TC capabilities for exothermic batch reactor control and corrosive fluid level measurement, with the fused terminals protecting against pump seal failure-induced shorts. Water treatment plants rely on the package for precise pH/ORP monitoring and coagulant dosing control. The extended temperature range (-25°C) makes it ideal for Arctic LNG liquefaction trains and desert-based solar thermal plants. Wherever fused isolation, high channel density, and SIL 2 compliance are required for analog signal acquisition, the ABB 216EA62 delivers uncompromised reliability.

Related Products

ABB 216EA61b: Previous generation analog module with similar specs but lower resolution.

ABB 1MRB178065R1E: Terminal board for digital modules in same S800 platform.

ABB 216DB61: Processor module executing control logic using 216EA62 inputs.

ABB 216RE61: Relay output module for safety shutdown actuators.

ABB HESG437699R1: Redundant power supply for S800 I/O racks.

ABB CI867: PROFIBUS DP interface for third-party PLC integration.

ABB 216FI61: Foundation Fieldbus communication module.

ABB 216VC62: Redundant CPU for high-availability systems.

ABB 216TB61: Termination board for processor modules.

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (S800 baseplate required). Discharge static electricity using grounded wrist strap. Mount 1MRB178066R1E terminal board on DIN rail adjacent to I/O rack. Install 1MRB150083R1E fuse holders and insert 1MRB300162R0008 fuses before wiring. Confirm voltage levels match sensor specifications.

Maintenance recommendations: Check fuse integrity quarterly via diagnostic bits in Control Builder M. Clean terminal contacts annually with electronic-grade contact cleaner. Replace 1MRB300162R0008 fuses only with identical 0.5A/250V ratings. During hot-swap, disconnect field power first. Perform full calibration every 24 months using ABB Calibration Manager software.
