The ABB SC510 3BSE003832R1 is a high-performance PROFIBUS DP-V1 slave interface module designed for ABB’s S800 I/O system, enabling seamless integration of field devices into distributed control architectures. As part of ABB’s industrial automation ecosystem, this module bridges S800 I/O stations with PROFIBUS DP networks, supporting cyclic and acyclic data exchange at speeds up to 12 Mbps. The ABB SC510 features dual-port functionality for daisy-chaining topologies, reducing cabling costs by 40% in large-scale installations. Engineered for harsh environments, its galvanically isolated electronics withstand 500V transients while maintaining signal integrity in electrically noisy industrial settings. With hot-swap capability and automatic baud rate detection, the module minimizes commissioning time and ensures continuous operation in critical processes like power generation and chemical manufacturing.

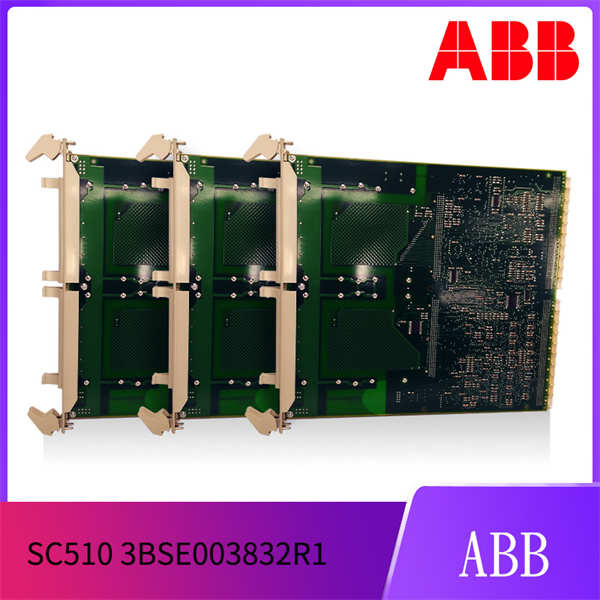

ABB SC510 3BSE003832R1
Technical Specifications
| Parameter | Value |
| Product Model | SC510 (3BSE003832R1) |
| Manufacturer | ABB |
| Product Type | PROFIBUS DP-V1 Slave Interface Module |
| Protocol Support | PROFIBUS DP-V1 (IEC 61158/61784) |
| Data Rate | 9.6 kbps – 12 Mbps (auto-negotiating) |
| Isolation | 500 V AC (field-to-backplane) |
| Connectors | 2 x PROFIBUS (9-pin D-sub) |
| I/O Capacity | Up to 244 bytes input + 244 bytes output |
| Diagnostics | LED indicators (RUN, ERROR, COM) |
| Power Supply | 5 V DC via S800 backplane |
| Operating Temperature | –25°C to +70°C |
| Certifications | CE, UL, Ex de IIC T6 Gb |
| Dimensions | 122 x 132 x 115 mm (H x W x D) |
Main Features and Advantages
Network resilience: Dual PROFIBUS ports enable linear, tree, or star topologies without external repeaters. Automatic bus termination via integrated switches simplifies expansion.
Deterministic performance: Guarantees ≤1 ms cycle times for 32 I/O modules, synchronized via PROFIBUS clock-stamping.
Diagnostic intelligence: Monitors slave status, signal quality, and module health. Event-driven diagnostics trigger alerts for cable breaks or station failures.
Safety integration: Supports PROFIsafe profiles for SIL 3 applications when paired with safety-certified I/O modules.
Engineering efficiency: Plug-and-play configuration via GSD files in STEP 7 or Control Builder. Electronic module labeling prevents misconfiguration.
Application Field
The ABB SC510 3BSE003832R1 excels in PROFIBUS-centric environments:
Chemical Plants: Interfacing pressure transmitters and control valves with AC 800M DCS
Automotive Manufacturing: Connecting robot cell sensors to Siemens S7 PLCs
Water Treatment: Integrating pump station I/O into SCADA via PROFIBUS-DP
Pharmaceuticals: Enabling GMP-compliant batch reporting through acyclic data services
Mining: Ruggedized communication in conveyor control systems (Ex certification)
Related Products
CI854A: PROFIBUS DP master module for AC 800M controllers
SD822: 16-channel digital input module for S800 integration
SA801: Analog input module with HART support
TB801: Base unit for mounting SC510 modules
CM572: PROFIBUS repeater for network extension
SC520: PROFIBUS DP-V1 module with enhanced diagnostics
Control Builder M: Configuration software for S800 systems

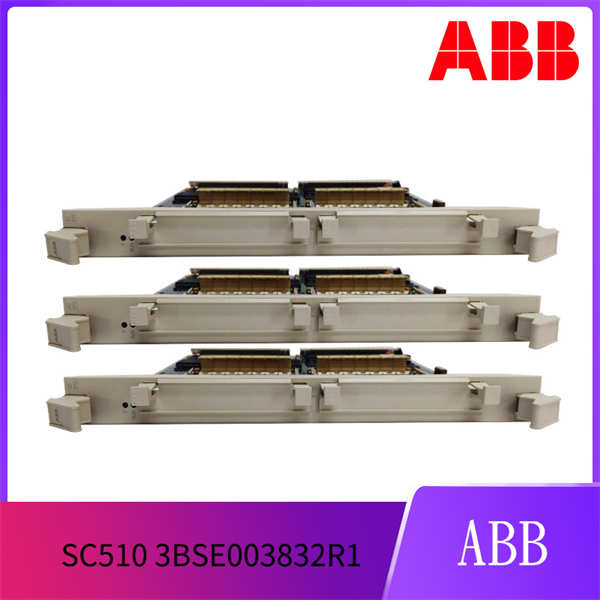

ABB SC510 3BSE003832R1
Installation and Maintenance
Pre-installation preparation: Verify PROFIBUS address uniqueness (1-126). Set terminating resistors at bus endpoints. Ground shield via D-sub connector screws (≤10 Ω). Load GSD file in master configuration tool.
Maintenance recommendations: Monitor PROFIBUS signal strength annually using diagnostic tools. Clean connectors with CO₂ spray in dusty environments. Replace modules during planned shutdowns; hot-swap requires temporary master deactivation.
