Description

The GE IS210AEDBH4AGD is a high-density analog input terminal board engineered for GE’s Mark VIe turbine control systems, providing precision signal conditioning and isolation for critical process monitoring. Designed to interface seamlessly with analog input modules like the IS200AEADH4ADA, this board delivers laboratory-grade accuracy for thermocouples, RTDs, and current/voltage sensors in extreme environments. Featuring 32 gold-plated screw terminals with 300V channel-to-channel isolation, the IS210AEDBH4AGD eliminates ground loops and EMI interference in electrically noisy turbine halls. Its ceramic terminal blocks and conformal-coated PCB withstand corrosive atmospheres while maintaining Class I Div 2 / ATEX Zone 2 compliance. Integrated cold-junction compensation (CJC) ensures ±0.25°C thermocouple accuracy across -40°C to +70°C ambient ranges. For combined-cycle plants requiring uncompromised signal integrity from combustion sensors and bearing monitors, this terminal board sets the standard for reliability.

The GE IS210AEDBH4AGD incorporates intelligent diagnostics, detecting open wires and sensor degradation before calibration drift impacts control decisions. Direct backplane mounting reduces signal path latency to<1>

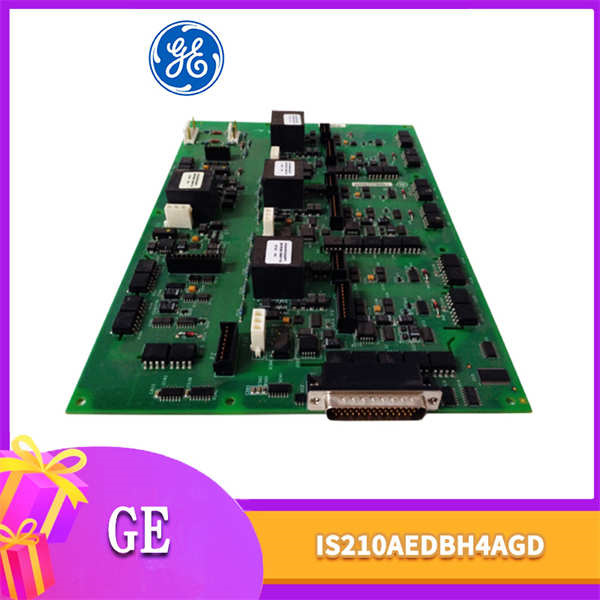

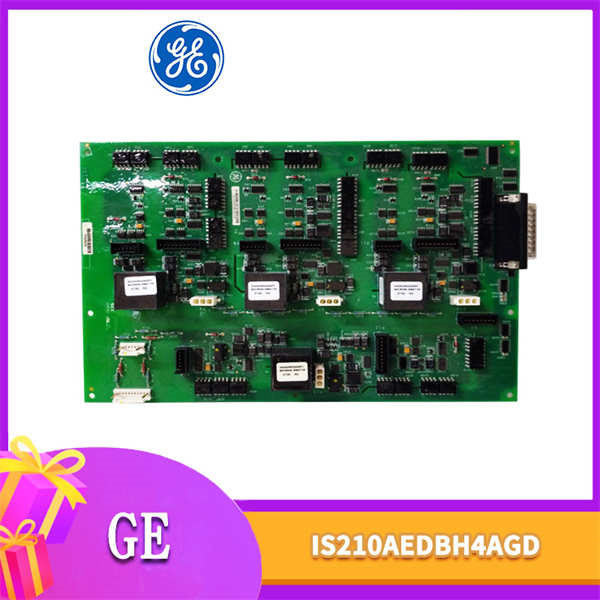

GE IS210AEDBH4AGD

Technical Specifications

Main Features and Advantages

Signal Integrity Mastery: Gold-plated terminals prevent oxidation-induced resistance drift (<0>

Extreme Environment Resilience: Conformal coating withstands 95% humidity and H₂S exposure. MIL-spec retention clips maintain contact integrity under 5G vibration. The IS210AEDBH4AGD operates reliably in Arctic offshore platforms and desert power plants alike.

Safety Compliance: Integrated CJC sensors compensate ambient fluctuations without external probes. 300V isolation handles ground potential differences in generator windings. ATEX/IECEx certification enables deployment in hazardous gas environments.

Maintenance Optimization: Field-replaceable terminal blocks allow single-point repairs without board removal. ToolboxST® auto-detects configuration during module swaps. Compatible with TCCE-032 protective covers for coal-dust environments.

Application Field

The GE IS210AEDBH4AGD anchors critical monitoring in energy infrastructure:

Gas Turbines: Interfaces 200+ thermocouples in DLN combustion systems with EMI immunity from ignition

Steam Plants: Routes superheater temperatures and feedwater pressures in coal/nuclear facilities

Compressor Stations: Conditions cryogenic RTDs in LNG liquefaction trains

Hydroelectric: Governs bearing temperatures and cooling flows

Industrial Furnaces: Monitors kiln shell thermocouples in cement plants

Offshore platforms leverage its IEC 60068-2-52 salt fog certification for gas compressor skids. Geothermal plants utilize H₂S-resistant terminals for wellhead monitoring.

Related Products

IS200AEADH4ADA: Analog input module (direct interface)

IS210AEBIH1BED: Previous-gen terminal board (32-pt)

TREA-161A: 16-point terminal board for legacy systems

IS200TBAIH1C: Thermocouple break alarm interface

DS200TCEAG1ADC: Retrofit kit for Speedtronic™ upgrades

IC698ALG442: RX7i analog module for balance-of-plant

HRAI-11: Hydraulic valve terminal board

Installation and Maintenance

Pre-installation preparation: Verify mechanical fit with host module (IS200AEADH4ADA). Pre-wire terminals before rack mounting. Use Belden 8760 shielded twisted pairs with single-end grounding. Maintain 75mm clearance from 480VAC cables.

Maintenance recommendations: Perform terminal resistance checks annually (<50m>
