The GE Hydran M2 is a premier dissolved gas analysis (DGA) system engineered by GE Grid Solutions (now part of Emerson) for real-time monitoring of power transformer health. This advanced online monitoring device detects critical fault gases—primarily hydrogen (H₂), carbon monoxide (CO), and acetylene (C₂H₂)—dissolved in transformer oil, enabling predictive maintenance and preventing catastrophic failures. The Hydran M2 utilizes electrochemical sensor technology with automatic temperature compensation to deliver ±5% accuracy across operating temperatures from -40°C to +65°C. Designed for seamless integration into utility SCADA systems, it provides early warnings for incipient faults like partial discharge, overheating, and arcing, making it indispensable for transmission substations, renewable energy farms, and industrial power networks.
Certified for SIL 2 safety applications, the GE Hydran M2 features rugged NEMA 4X/IP66 housing and explosion-proof options for hazardous environments. Its modular design supports remote communication via Ethernet, Modbus, or DNP3 protocols, while onboard data logging stores 18 months of historical trends. For asset managers prioritizing grid resilience, the Hydran M2 transforms reactive maintenance into proactive strategy, reducing unplanned outages by up to 70%.

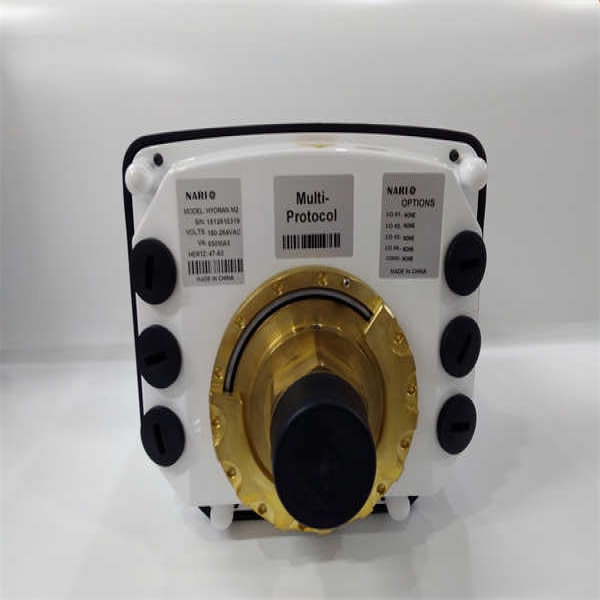

GE HYDRAN M2
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | GE Hydran M2 |
| Manufacturer | GE Grid Solutions (Emerson) |
| Product Type | Transformer Gas Monitoring System |
| Measured Gases | H₂, CO, C₂H₂ (configurable) |
| Measurement Range | H₂: 0–2000 ppm; CO: 0–3500 ppm; C₂H₂: 0–500 ppm |
| Accuracy | ±5% of reading or ±10 ppm |
| Response Time | <24><!--24--> |
| Operating Temperature | -40°C to +65°C |
| Outputs | 4-20mA, RS-485, Ethernet/IP |
| Protocols | Modbus RTU/TCP, DNP3, IEC 61850 |
| Power Supply | 88-265V AC/110V DC |
| Enclosure Rating | NEMA 4X / IP66 (explosion-proof optional) |
| Calibration Interval | 12 months (recommended) |
| Certifications | SIL 2 (IEC 61508), IEEE C57.104 compliant |
| Dimensions | 380 x 300 x 150 mm |
Main Features and Advantages
Early fault detection: Patented hydrogen-permeable sensor technology identifies cellulose degradation and thermal faults 3–6 months before traditional sampling. The GE Hydran M2’s multi-gas analysis distinguishes between partial discharge (>90% H₂) and thermal faults (CO-dominated).
Ruggedized reliability: Stainless steel oil flow path resists corrosion in humid coastal environments. Hermetically sealed sensors operate continuously at 150 psi oil pressure. Automatic self-diagnostics validate sensor health hourly.
Smart integration: Embedded web server enables configuration via any browser. Synchrophasor-compatible timestamping aligns gas data with grid events. The Hydran M2 interfaces with GE’s Predix™ analytics for fleet-wide transformer health scoring.
Maintenance optimization: Zero consumables reduce operational costs versus chromatographs. Hot-swappable sensor cartridges cut replacement time to 15 minutes. SIL 2 certification qualifies it for safety-critical grid applications.
Application Field
The GE Hydran M2 is deployed across:
Electric Utilities: Continuous monitoring of 500kV+ transmission transformers for arc faults
Wind Farms: Early detection of gearbox oil migration in offshore turbine step-up transformers
Industrial Plants: Preventing furnace transformer failures in steel mills (55°C ambient)
Rail Electrification: Protecting traction transformers in high-vibration rail corridors
Data Centers: Ensuring 99.999% uptime for critical power infrastructure
GE HYDRAN M2
Related Products
GE Hydran M2-G: Explosion-proof variant for Zone 1 hazardous areas
GE Hydran 201i: Portable DGA kit for field validation
GE TEC: Transformer electronic controller for cooling control
GE BushingM™: Online bushing monitoring system
Vaisala OPT100: Competing optical DGA sensor technology
