Description

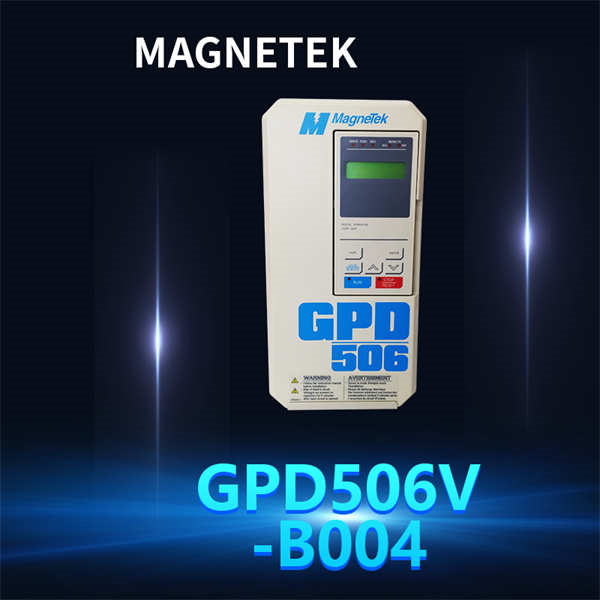

The MAGNETEK GPD506V-B004 is a high-performance 3HP AC drive engineered for precision control of three-phase induction motors in industrial automation. Part of MAGNETEK’s GPD 500 series, this variable frequency drive (VFD) combines 230V single-phase input with robust sensorless vector control, delivering ±0.5% speed regulation without encoder feedback. The GPD506V-B004 excels in torque-critical applications like conveyors and mixers, featuring adaptive motor tuning and configurable acceleration/deceleration ramps. Its compact IP20 chassis design simplifies panel integration while supporting multiple control modes (V/f, open-loop vector) through 15 programmable I/O points. With comprehensive protection against overvoltage, phase loss, and overheating, the MAGNETEK GPD506V-B004 ensures reliable operation in demanding environments from -10°C to 50°C. This drive represents MAGNETEK’s commitment to energy-efficient motor management, reducing operational costs by up to 30% in continuous-duty scenarios.

Technical Specifications

Main Features and Advantages

Precision Motor Control: The MAGNETEK GPD506V-B004 utilizes advanced sensorless vector algorithms to maintain ±0.5% speed accuracy across 0.5–100 Hz range, enabling smooth starts/stops for inertia-sensitive loads. Automatic motor tuning dynamically adjusts control parameters for optimal torque response.

Operational Resilience: Conformal-coated PCB withstands 95% non-condensing humidity and 5.9 m/s² vibration. Multi-stage protection includes ground fault detection, DC bus overvoltage suppression, and electronic thermal overload monitoring with fault history logging.

Energy Optimization: Real-time current minimization algorithms reduce power consumption by up to 30% during partial-load operation. Built-in DC choke limits harmonic distortion to <5>

User-Centric Design: Removable keypad with 4-digit LED supports parameter cloning across drives. 3 programmable analog inputs (0–10V/4–20mA) and 2 relay outputs enable flexible PLC integration. The GPD506V-B004 also features slip compensation and PID control for process stability.

Application Field

The MAGNETEK GPD506V-B004 drives material handling systems such as warehouse conveyors and packaging lines, where its S-curve acceleration prevents belt slippage and product damage. In HVAC applications, it optimizes centrifugal fan/pump energy use through PID-based pressure control, achieving 20–30% energy savings in commercial buildings.

Manufacturing sectors deploy the GPD506V-B004 for mixer speed regulation in chemical processing and auger feed control in batching systems. Its phase-loss tolerance ensures continuous operation in regions with unstable grids. Water treatment plants utilize its dry-contact fault signaling for pump protection during backwash cycles. The drive’s Modbus RTU compatibility (via GPD506-CM card) enables remote monitoring in automated production cells.

Related Products

GPD506V-A004: 1HP variant for fractional horsepower applications

GPD506V-C004: 5HP model with 14A output current

GPD515V-B004: 3HP drive with 460V 3-phase input

GPD506-CM: Communication module adding Modbus TCP/Ethernet IP

GPD506-EM: Class A EMI filter for sensitive environments

GPD506-BRK: 100Ω braking resistor for high-inertia deceleration

GPD506-KP: Replacement keypad with 5m extension cable

GPD506-HW: NEMA 1 enclosure kit for standalone mounting

Installation and Maintenance

Pre-installation preparation: Verify supply voltage matches the GPD506V-B004‘s 230VAC 1-phase specification. Ensure ≥100mm vertical clearance for ventilation and ambient temperature ≤50°C. Prepare DIN rail (EN 50022-35×7.5/15) mounting hardware. Ground the drive using ≤10Ω resistance copper wire (min. AWG 12). Disconnect all power before wiring.

Maintenance recommendations: Quarterly clean cooling fins with dry compressed air (<0>
